Gas-liquid Transfer Pump
WH-23

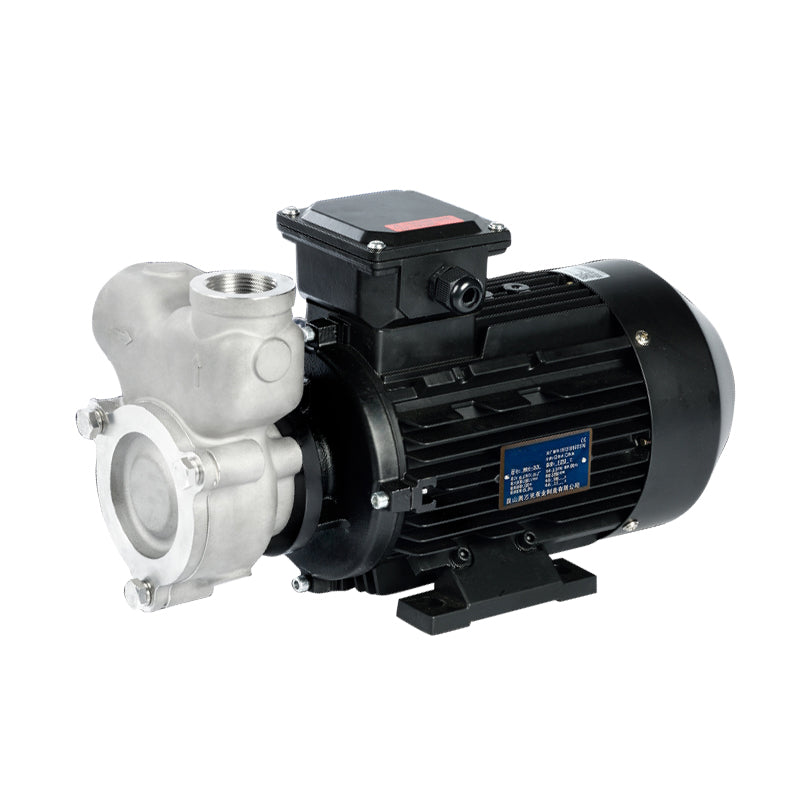

Description: WH-23 is an axial high temp. transfer vortex pump. Transfer pure liquid including (water, ethylene glycol,hydrocarbon solution,heat transfer oil,etc.)...
customers are viewing this product
Description:

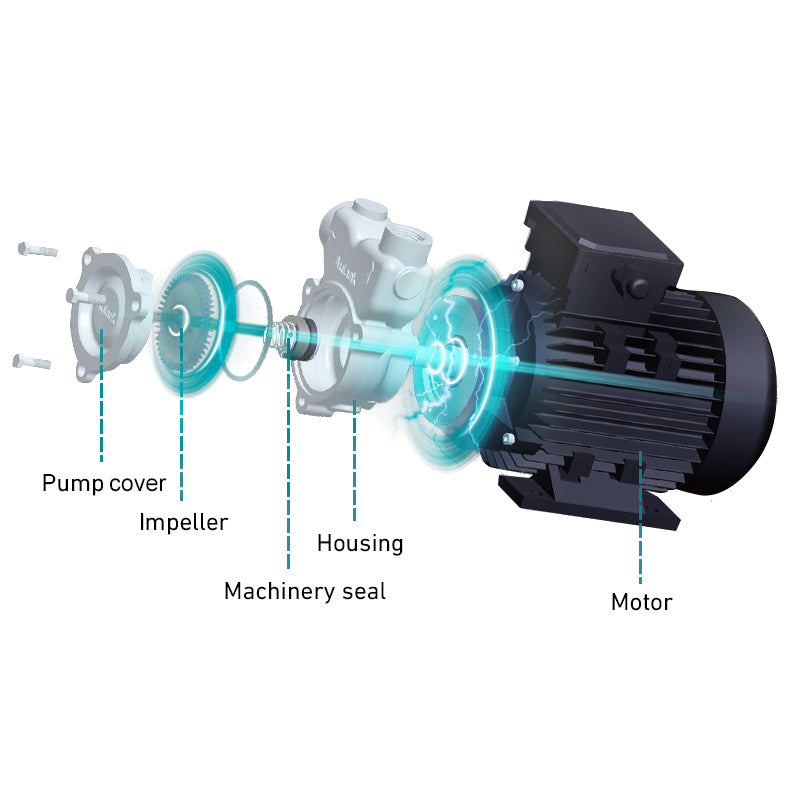

WH-23 is an axial high temp. transfer vortex pump. Transfer pure liquid including (water, ethylene glycol,hydrocarbon solution,heat transfer oil,etc.) The material of flow parts is made by stainless steel giving more corrosion resistant performance.
Features:
- Compact and high efficiency.
- Stainless steel flow parts giving more corrosion resistant performance
- High and low temperature resistancefrom -30℃to 78℃ ethanol
- Low noise and vibrationfor more stability
Technical Parameter:
|
No. |
Specification Parameter |
Description |
|
1 |
Power Supply |
3PH 240V 60H |
|
2 |
Motor Power |
1.7Kw |
|
3 |
RPM |
2760 |
|
4 |
Pressure |
10Bar |
|
5 |
Max Lift |
100M |
|
6 |
Max flow rate |
120L/min |
|
7 |
Weight |
20kg |
|
8 |
Dimension |
415mm*180mm*225mm |
