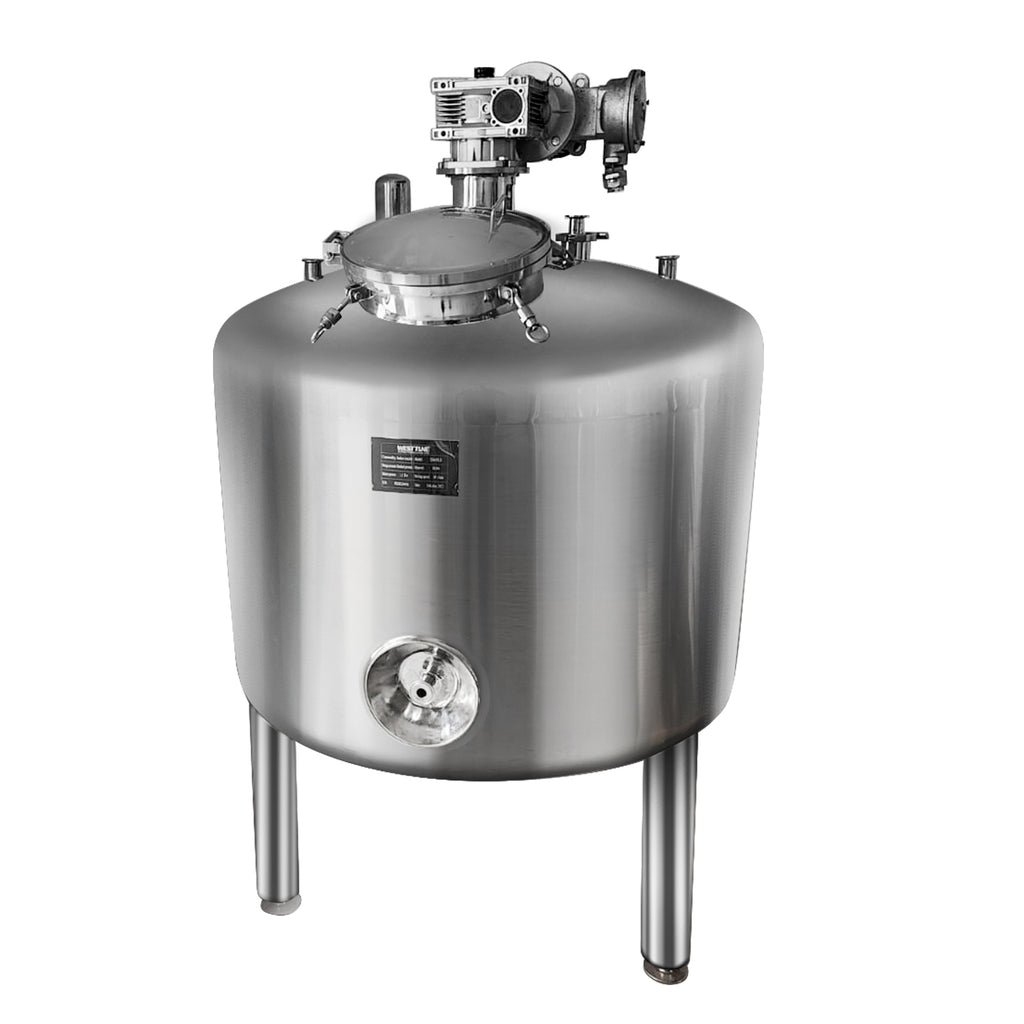

600L Fully Jacket Solvent Mixing Tank
SS600LD
Sales description: Having a West Tune 600L fully jacket solvent mixing tank during an extraction process will allow to chill...
customers are viewing this product
Sales description:
Having a West Tune 600L fully jacket solvent mixing tank during an extraction process will allow to chill by adding ethanol to the outside of the tank. It would keep a product either hot or cold by circulating fluid.Make excellent complementary units for your ethanol extraction system.
Features:
- 100% TIG welded and sanitary polished
- Stainless steel 304 sanitary construction
- 3 heavy duty stainless steel legs with adjustable height and leveling pads
- Tri-clamp sanitary fitting
- Interior shell: stainless steel 304, thickness: 3mm
- Outer shell: stainless steel 304, thickness: 2mm
- Explosion-proof control cabinet
- Oversized manhole design, convenient for observation feeding, cleaning, discharging,etc
Specifications:
|
Power Supply |
240V 60HZ 3ph |
|
Material |
SS304 |
|
Capacity |
500L |
|
Dimension of Tank |
Φ110cmx65cm |
|
Inlet |
Φ38mm |
|
Outlet |
Φ38mm |
|
Interior shell thickness |
3mm |
|
Outer shell thickness |
2mm |
|
Pressure Rating |
ATM |
|
Agitator speed |
60r/min |
|
Motor Power |
1.1kw |
|
Weight |
450lbs |
