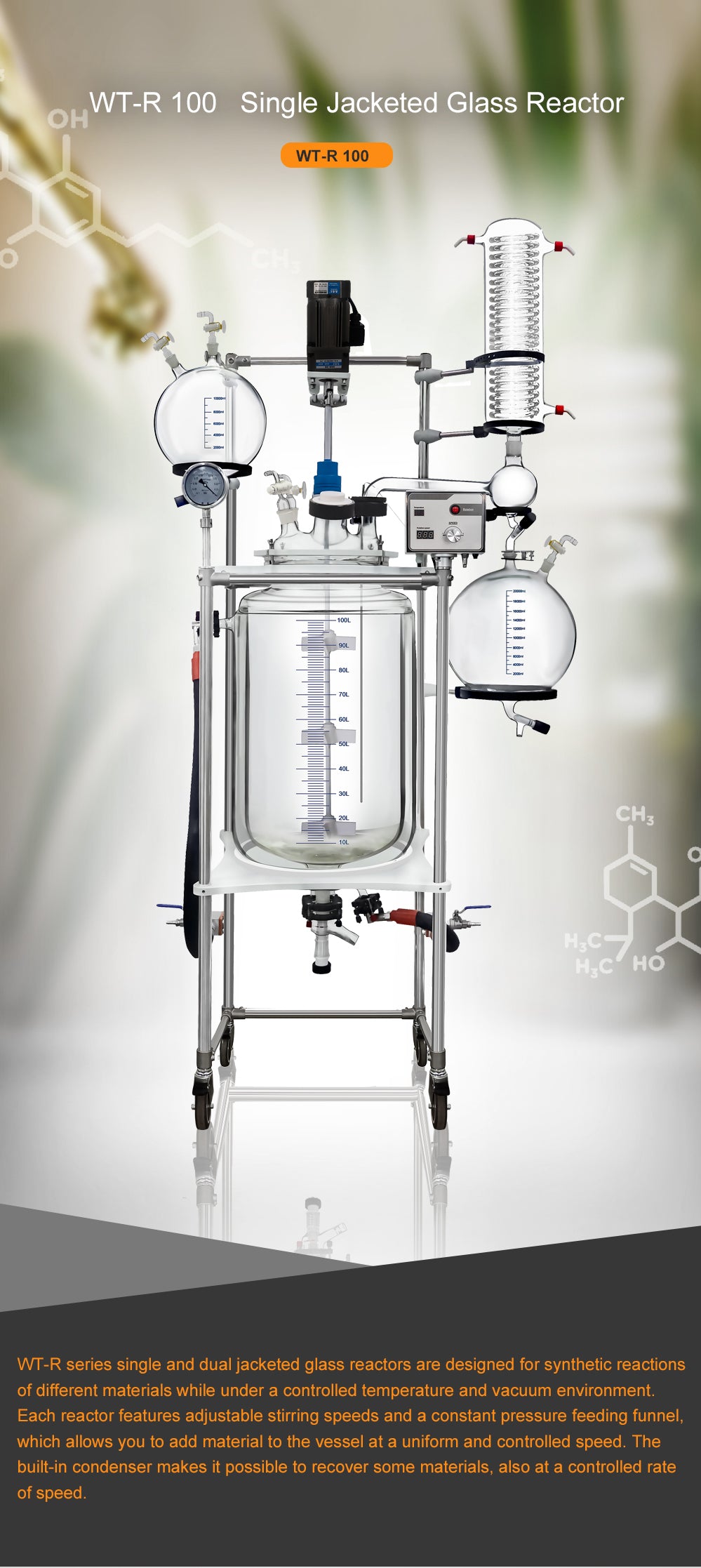

West Tune High quality WT-R 100L Single Jacketed Glass Reactor For Crystallization and Reaction
6022526003
West Tune High quality WT-R 100 Glass Layer Single Jacketed Reactor For Crystallization and Reaction WT-R series single and dual jacketed glass...
customers are viewing this product
West Tune High quality WT-R 100 Glass Layer Single Jacketed Reactor For Crystallization and Reaction

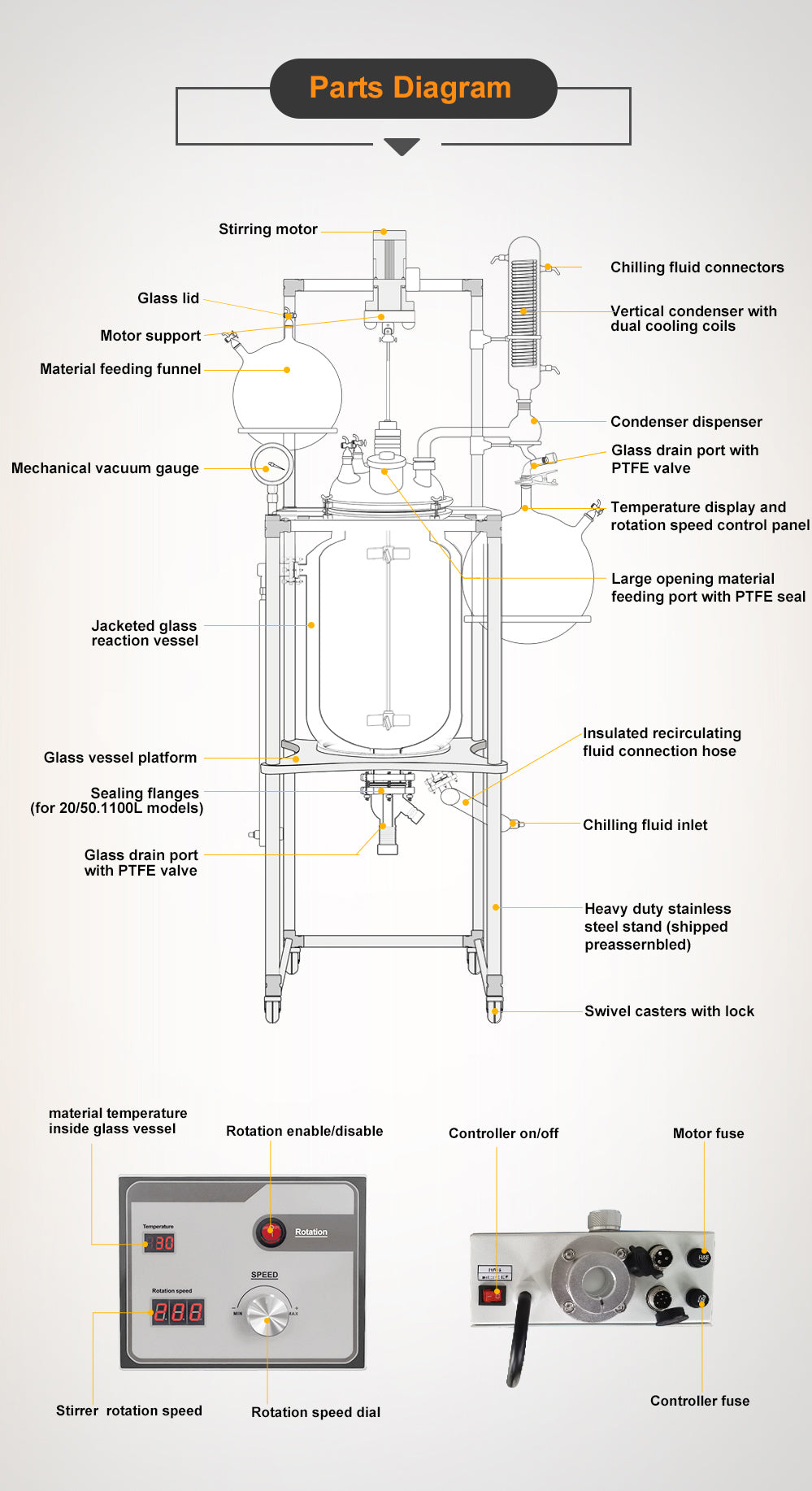

WT-R series single and dual jacketed glass reactors are designed for synthetic reactions of different materials while under a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel, which allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

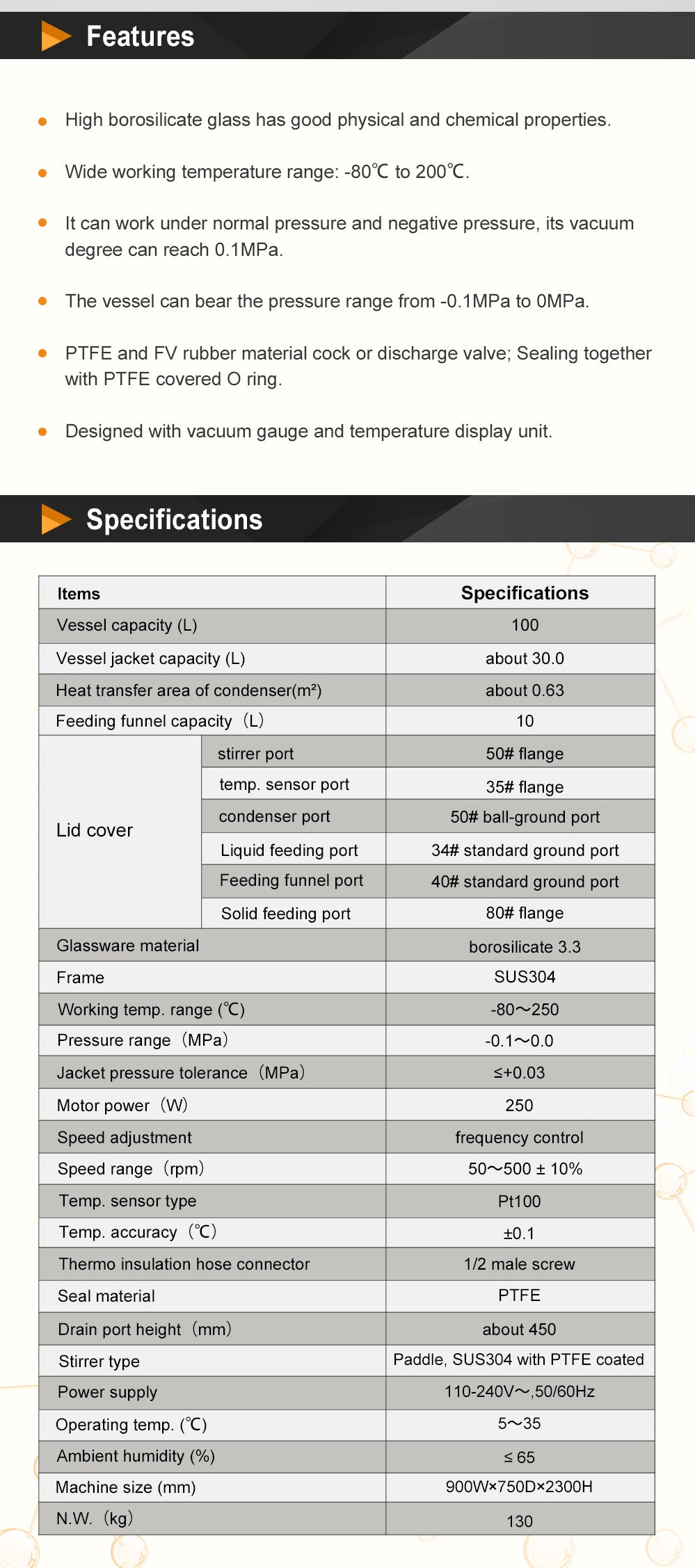

Features：
- High borosilicate glass has good physical and chemical properties.
- Wide working temperature range: -80℃ to 200℃.
- It can work under normal pressure and negative pressure, its vacuum degree can reach 0.1MPa.
- The vessel can bearthe pressure range from -0.1MPa to 0MPa.

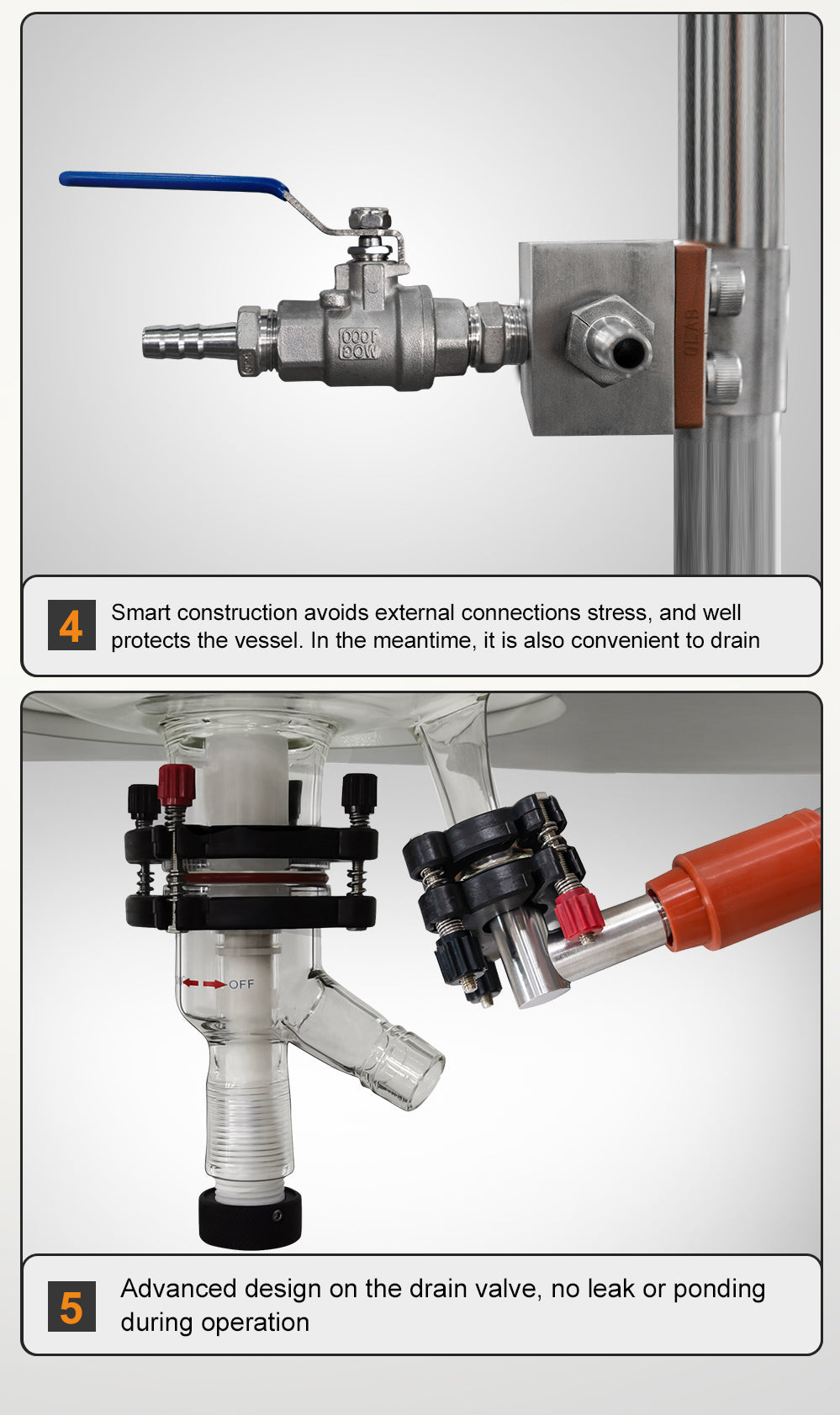

- PTFE and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
- Designed with vacuum gauge and temperature display unit.
| Items | Specifications | |
| Vessel capacity (L) | 100 | |
| Vessel jacket capacity (L) | about 30.0 | |
| Heat transfer area of condenser(m²) | about 0.63 | |
| Feeding flask capacity（L） | 10 | |
| Lid cover | stirrer port | 50# flange |
| temp. sensor port | 35# flange | |
| condenser port | 50# ball-ground port | |
| Liquid feeding port | 34# standard ground port | |
| Feeding funnel port | 40# standard ground port | |
| Solid feeding port | 80# flange | |
| Glassware material | borosilicate 3.3 | |
| Frame | SUS304 | |
| Working temp. range (℃) | -80～250 | |
| Pressure range（MPa） | -0.1～0.0 | |
| Jacket pressure tolerance（MPa） | ≤+0.03 | |
| Motor power（W） | 250 | |
| Speed adjustment | frequency control | |
| Speed range（rpm） | 50～500 ± 10% | |
| Temp. sensor type | Pt100 | |
| Temp. accuracy（℃） | ±0.1 | |
| Thermo insulation hose connector | 1/2 male screw | |
| Seal material | PTFE | |
| Drain port height（mm） | about 450 | |
| Stirrer type | Paddle, SUS304 with PTFE coated | |
| Power supply | 110-240V～,50/60Hz | |
| Operating temp. (℃) | 5～35 | |
| Ambient humidity (%) | ≤ 65 | |
| Machine size (mm) | 900W×750D×2300H | |
| N.W.（kg） | 130 | |
