30L/min Oil Free Anti-corrosive Diaphragm Pump GM-0.5

A0602003
West Tune GM series Diaphragm Vacuum Pump has the features of continuous oil free pumping, low noise level, higher efficiency, long...
$589.00
Power *
$589.00
customers are viewing this product

West Tune GM series Diaphragm Vacuum Pump has the features of continuous oil free pumping, low noise level, higher efficiency, long lifetime.

It is anticorrosive pumps through Teflon treatment, the parts which contact with the gas are PTFE material, it si suitable for the corrosive chemical, phamaceutical, petrochemical gases etc. It is used for vacuum filtration, reduced pressure distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid phase extraction etc. It is very high cost performance product with quality reliability, unique structural design to mee the various needs of the laboratory.

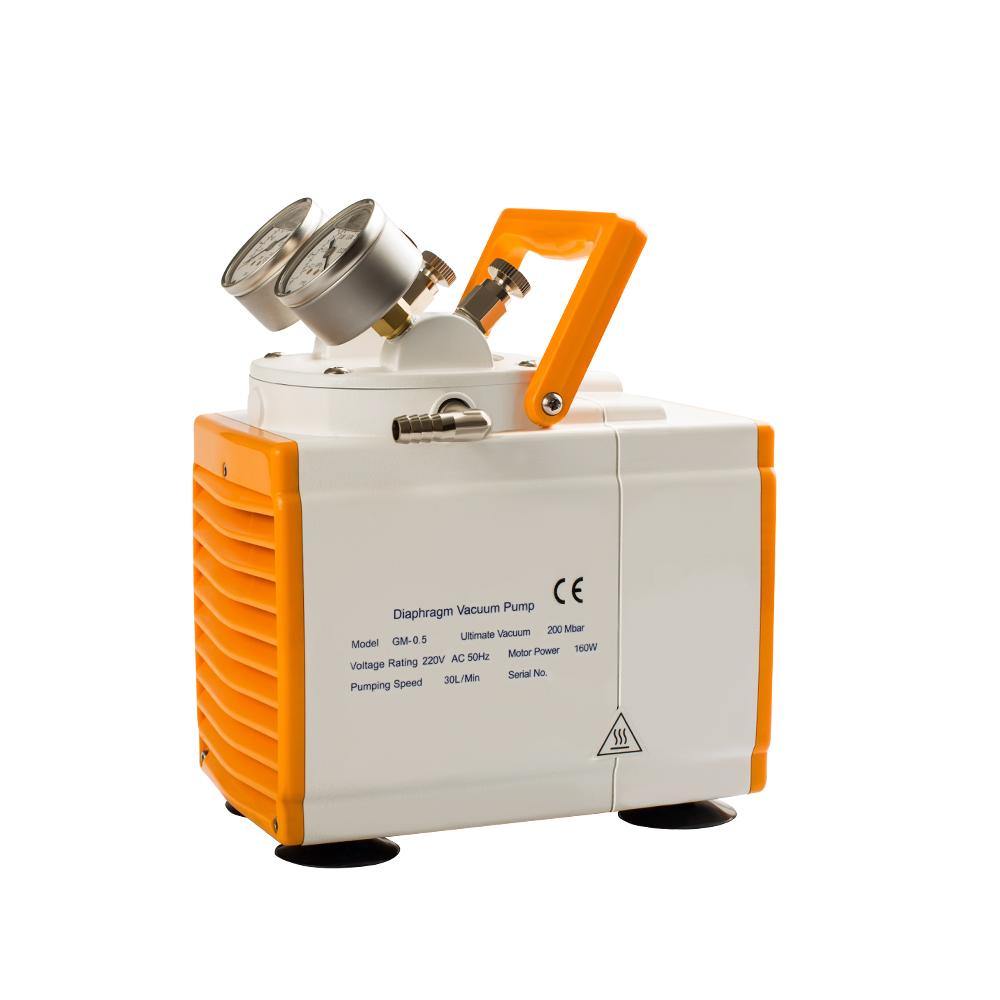

The picture of GM-0.5 30L/min Oil Free Anti-corrosive Diaphragm Pump



Features:

Corrosion resistance, able to tolerance almost all strong acid(including aqua regia), strong alkali, strong oxidizer, reductant, and variety of organic solvents.

With stand high and low temperature, can be used in temperature of -190℃ to 260℃.

Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.

More details:

Specifications:

Speed of evacuation 30L/min (1.1cfm)
Ultimate pressure vacuum 0.08Mpa (200 mbar)
Voltage 220V/50Hz or 110V/60Hz with NEMA 5-15p cable
Motor power (w) 160w
Pressure ≥30Psi
Inlet & Outlet (mm) 6
Pump head 1
Dimensions (L*W*H) 21*16*24cm (8.2*6.3*9.5’’)
Noise level (DB) <60
Weight  8kg (18lb)
Diaphragm NBR
Valves NBR
