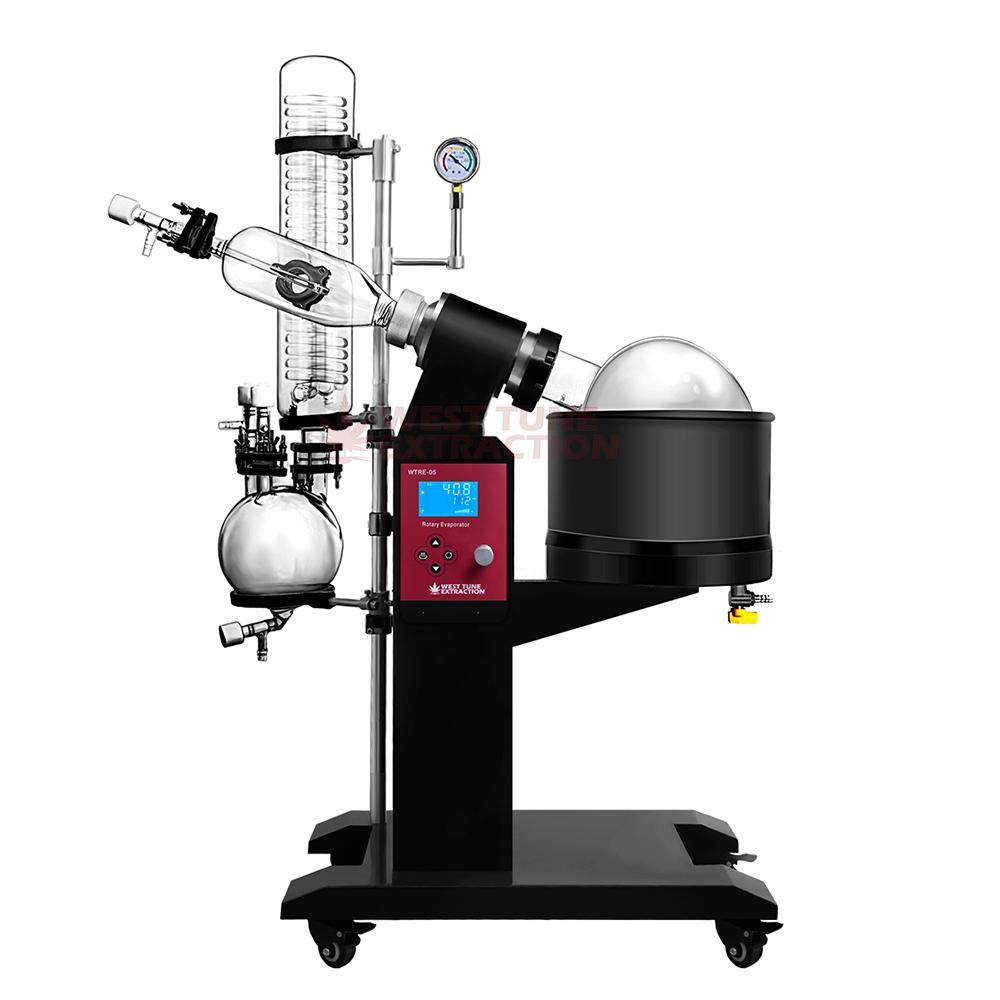

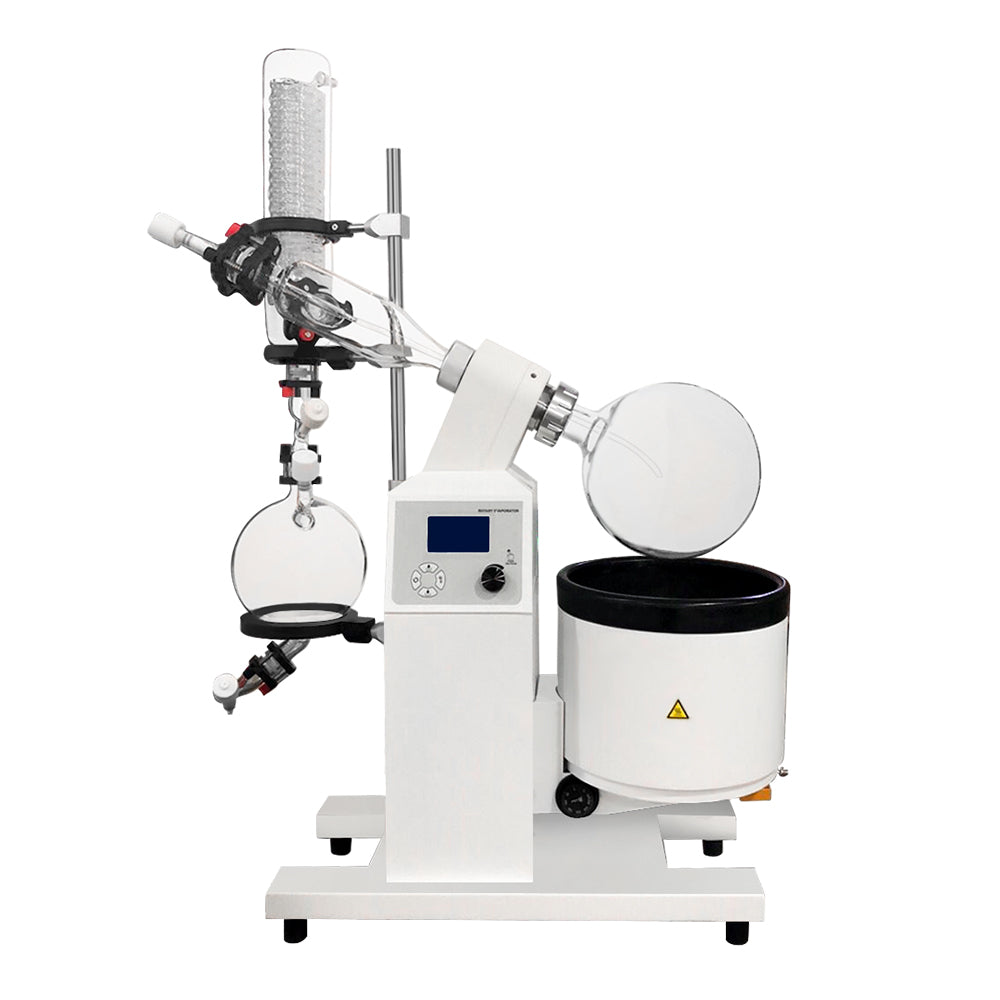

1.3-Gallon 5L Rotary Evaporator with Motorized Lift

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by...
UL certification *
Heaters or Chillers *
Vacuum controller *
customers are viewing this product

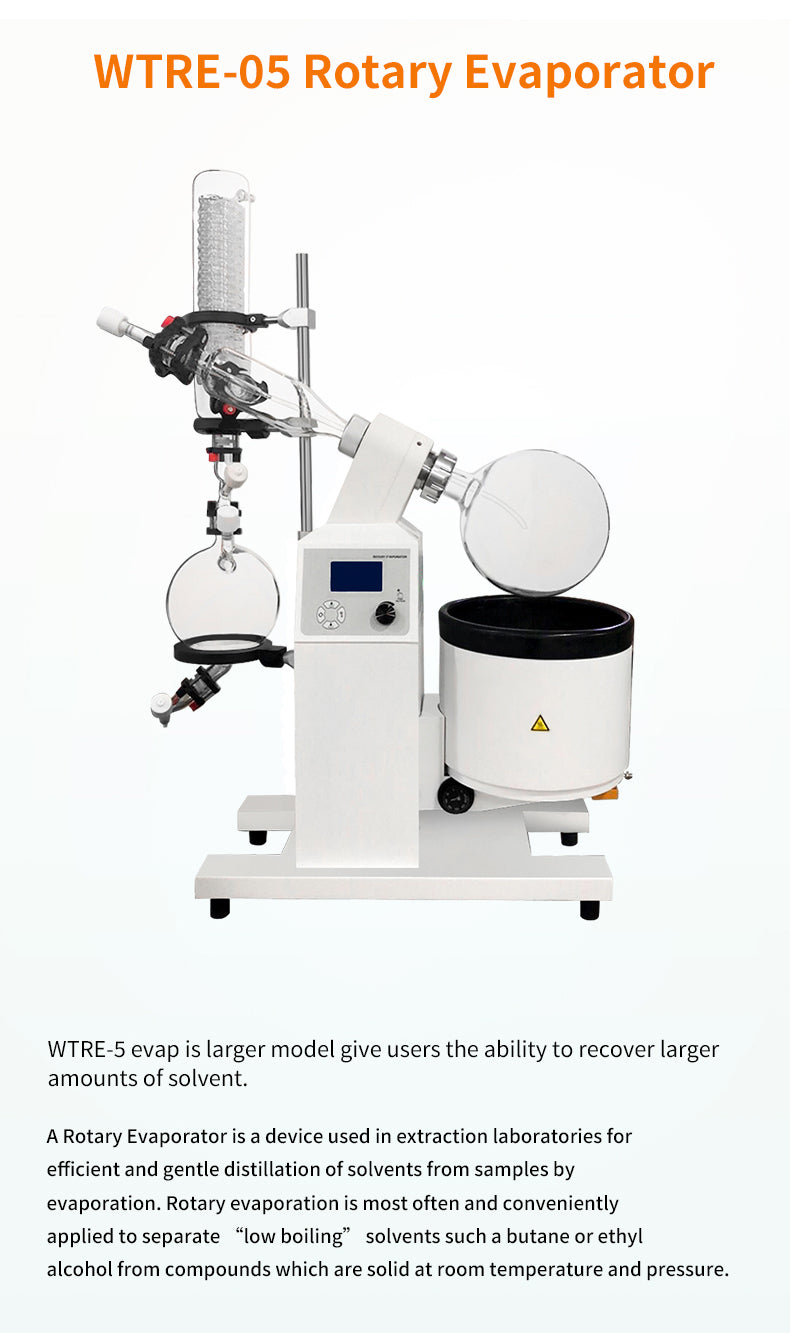

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.


WTRE-05 evap is an ideal model made for users who are looking for more capacity than the standard 2L.

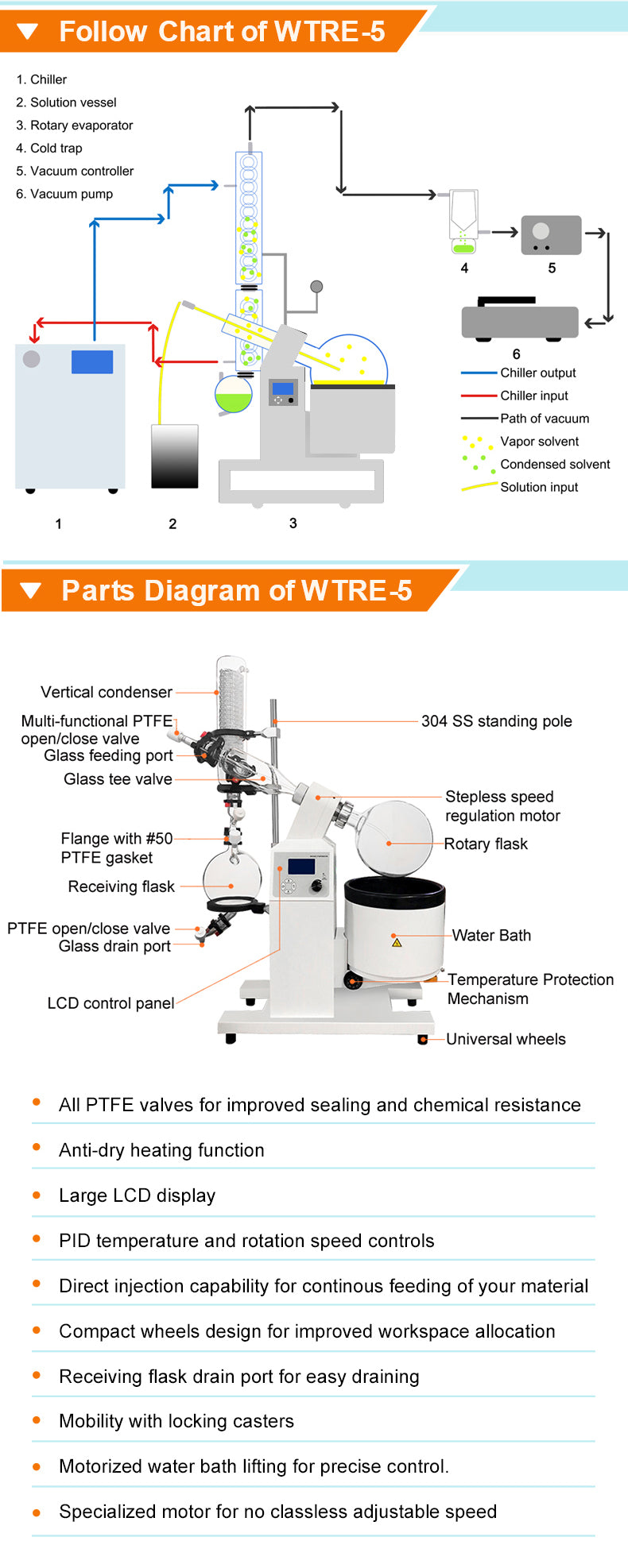

1. All PTFE valves for improved sealing and chemical resistance
2. Anti-dry heating function
3. Large LCD display
4. PID temperature and rotation speed controls
5. Direct injection capability for continous feeding of your material
6. Compact wheels design for improved workspace allocation
7. Receiving flask drain port for easy draining

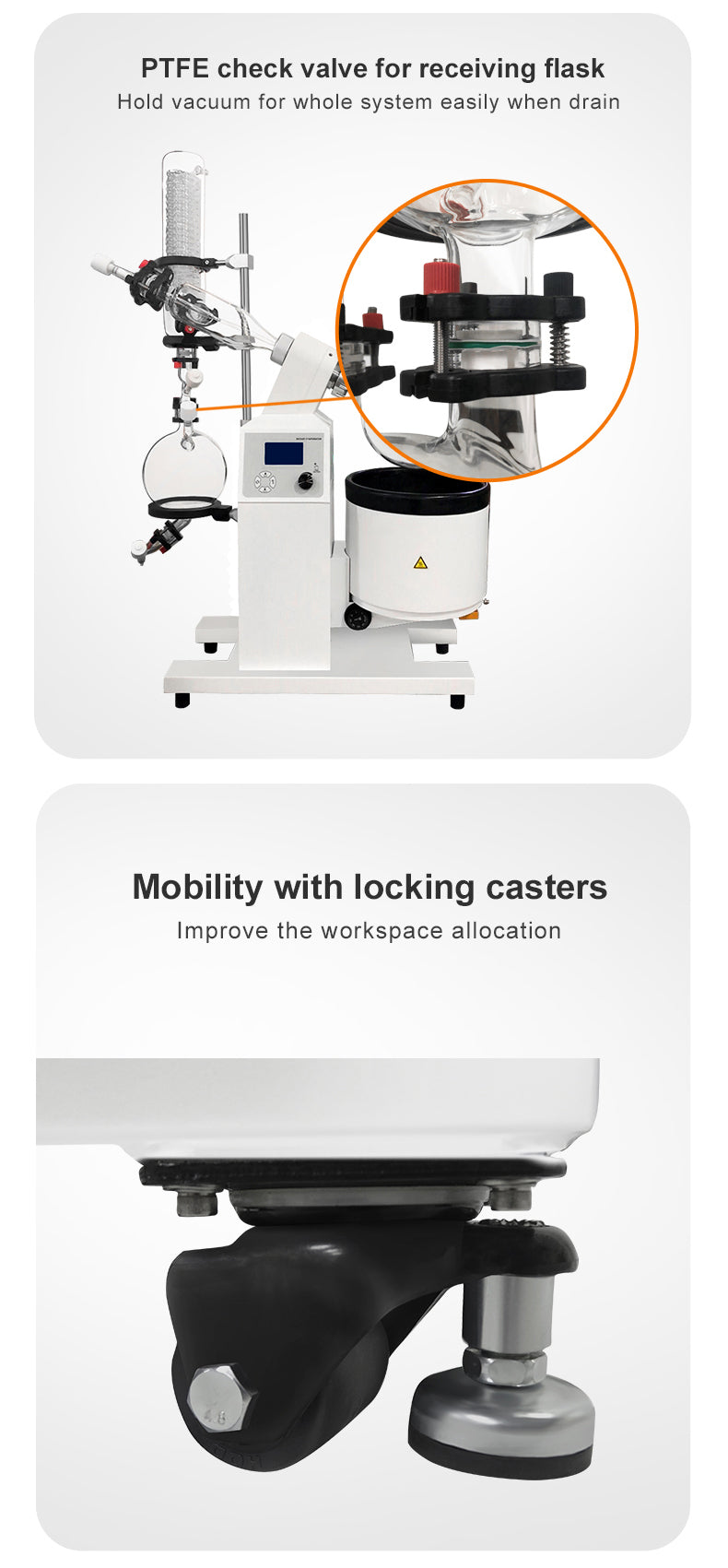

8. Mobility with locking casters
9. Motorized water bath lifting for precise control.
10. Specialized motor for no classless adjustable speed
11. CE Listed

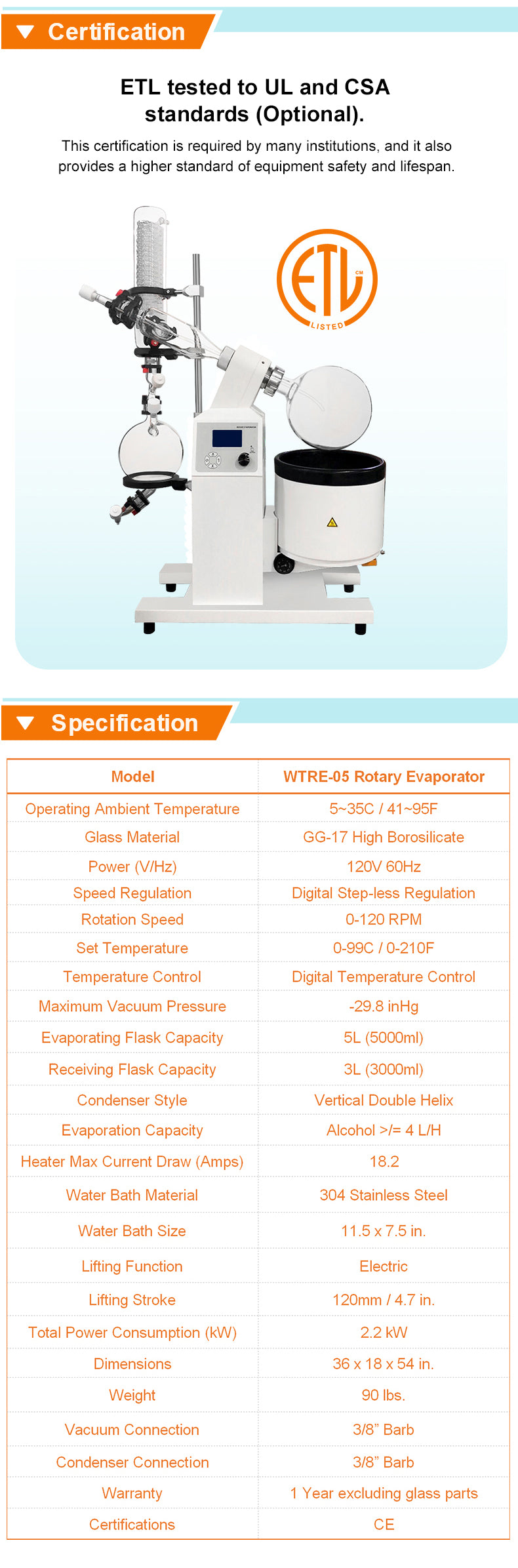

Model WTRE-05  Rotary Evaporator
Operating Ambient Temperature 5~35C / 41~95F

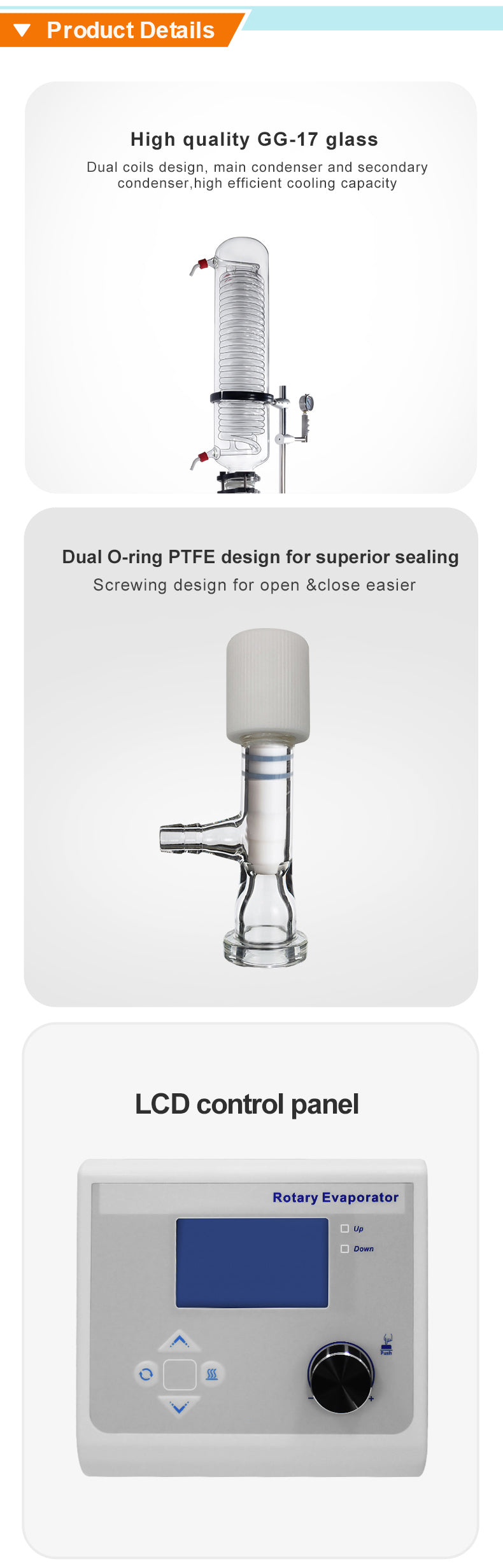

Glass Material GG-17 High Borosilicate
Power (V/Hz) 220V 60Hz
Speed Regulation Digital Step-less Regulation
Rotation Speed 0-120 RPM
Set Temperature 0-99C / 0-210F
Temperature Control Digital Temperature Control
Maximum Vacuum Pressure -29.8 inHg
Evaporating Flask Capacity 5L (5000ml)
Receiving Flask Capacity 3L (3000ml)
Condenser Style Vertical Double Helix
Evaporation Capacity Alcohol >/= 4 L/H
Heater Max Current Draw (Amps) 18.2
Water Bath Material 304 Stainless Steel
Water Bath Size  11.5 x 7.5 in.
Lifting Function Electric
Lifting Stroke 120mm / 4.7 in.
Total Power Consumption (kW) 2.2 kW
Dimensions  36 x 18 x 54 in.
Weight  90 lbs.
Vacuum Connection 3/8” Barb
Condenser Connection 3/8” Barb
Warranty 1 Year excluding glass parts
Certifications CE
