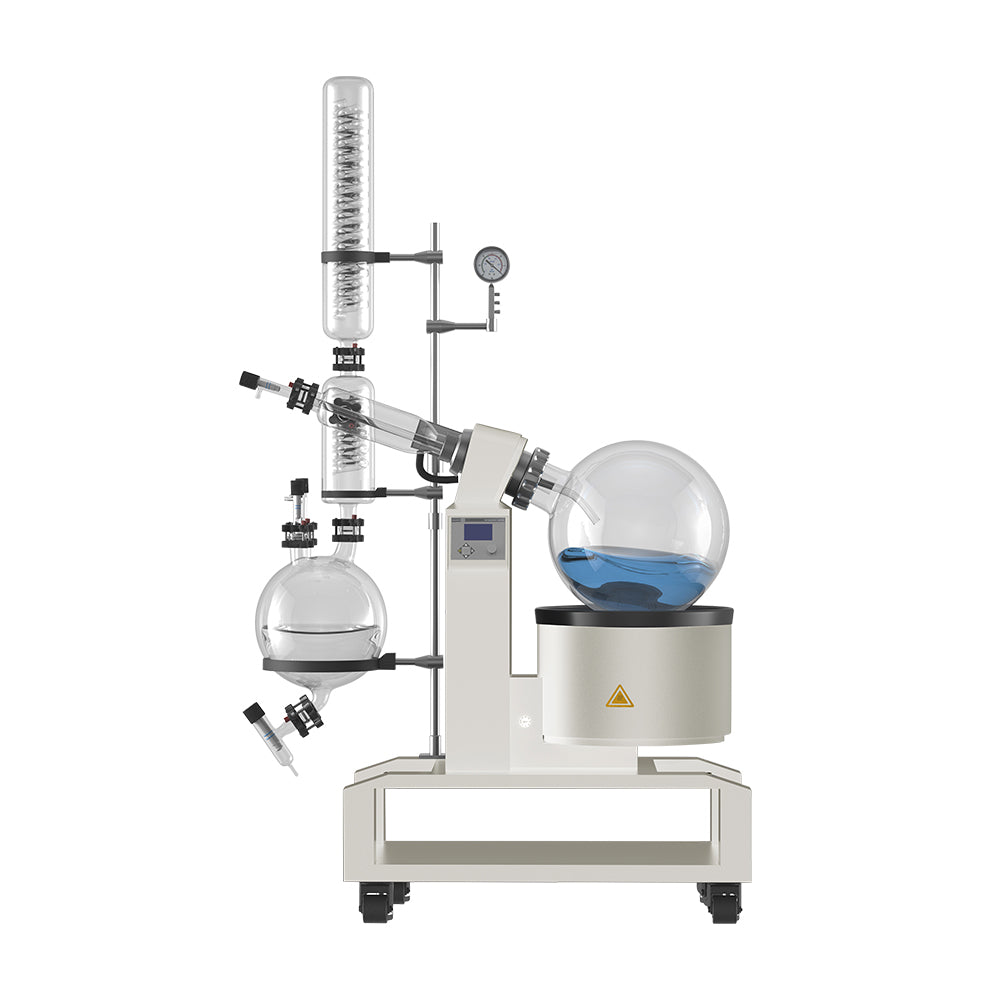

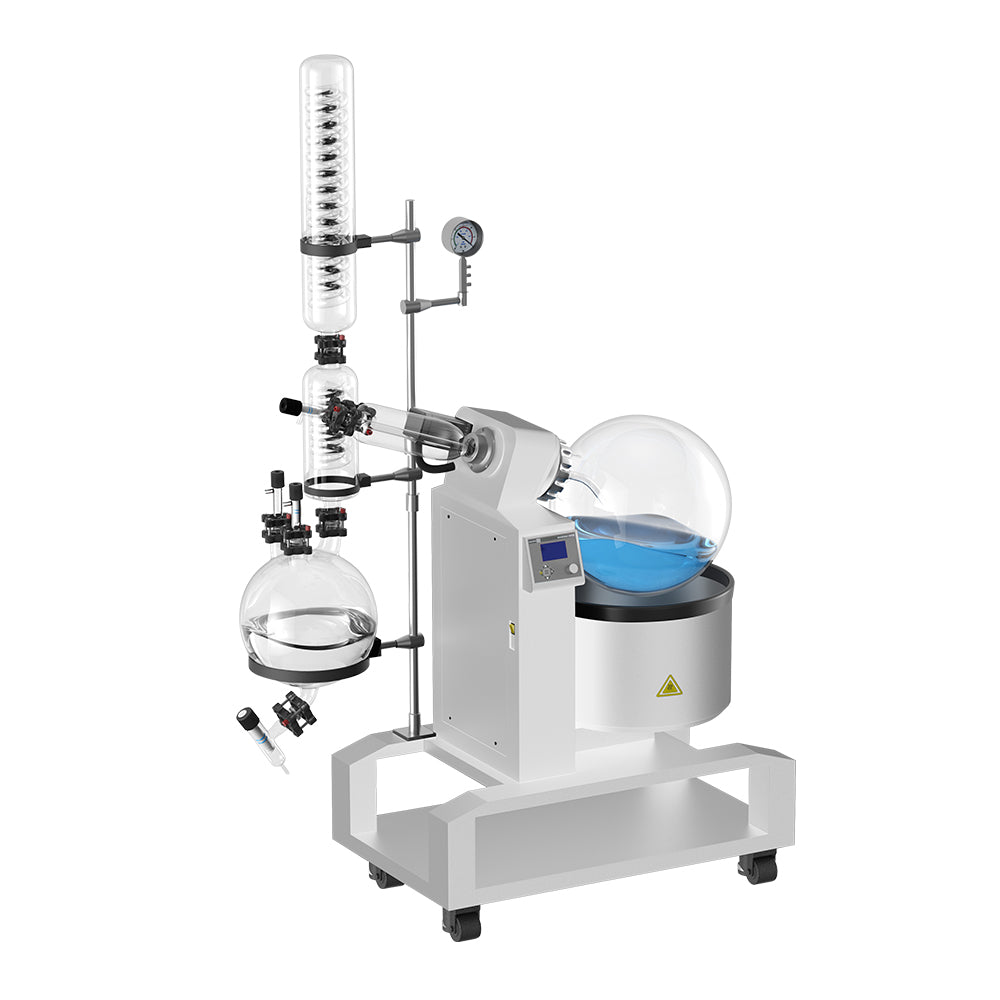

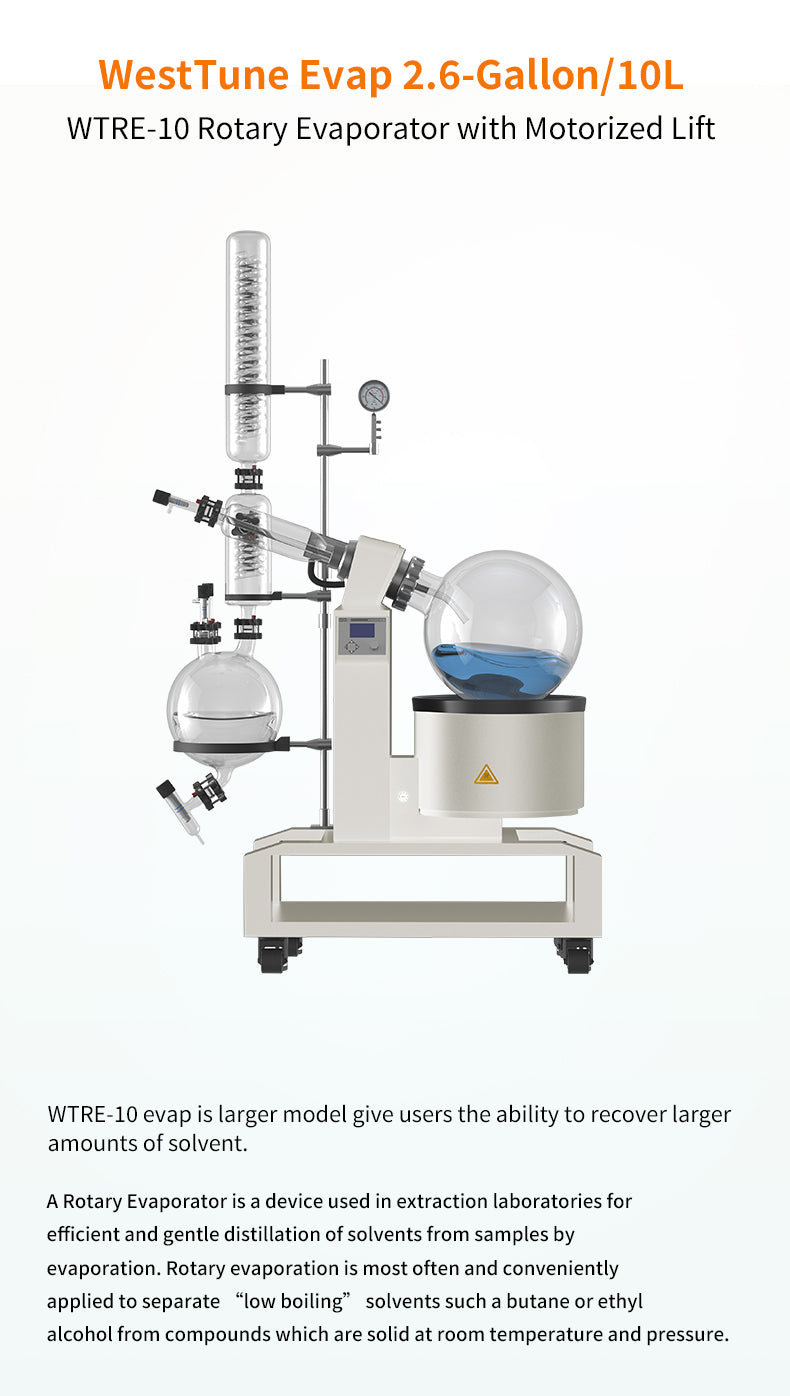

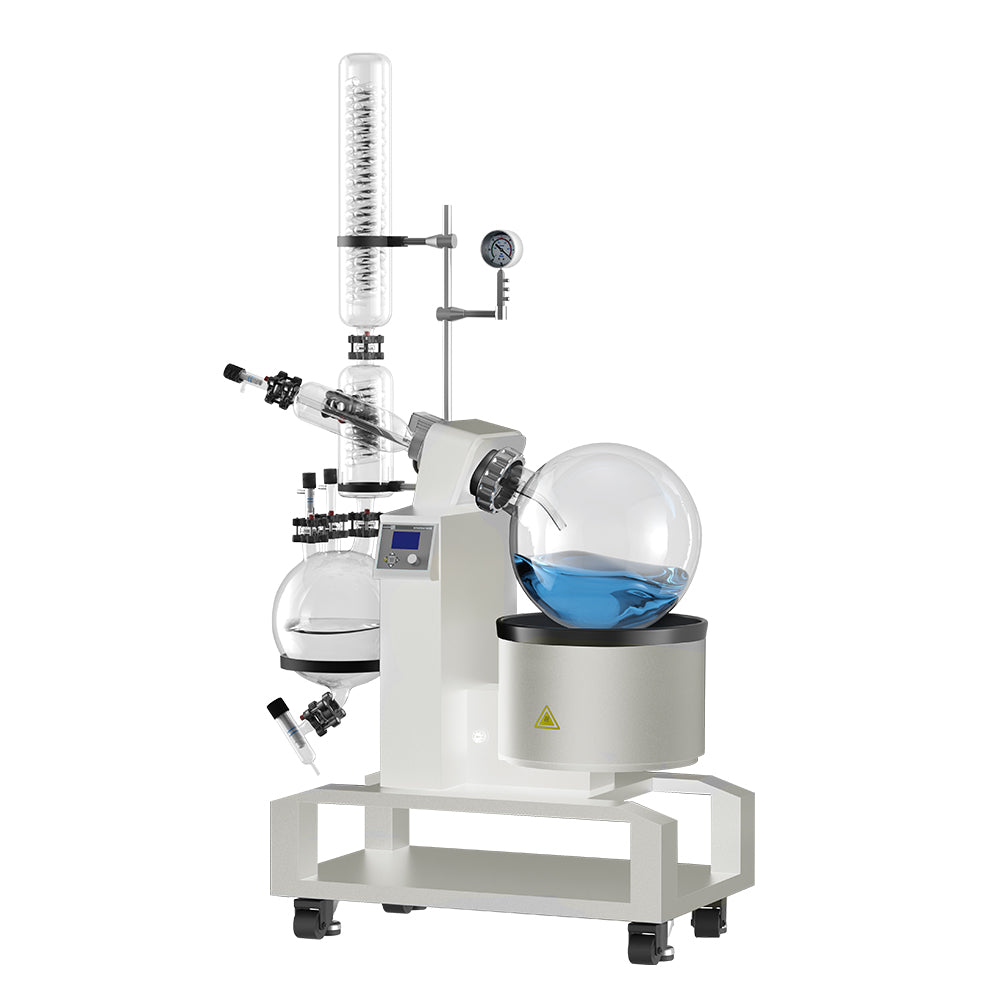

2.6-Gallon 10L Rotary Evaporator with Motorized Lift

6022557006
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by...
$5,699.00
UL certification *

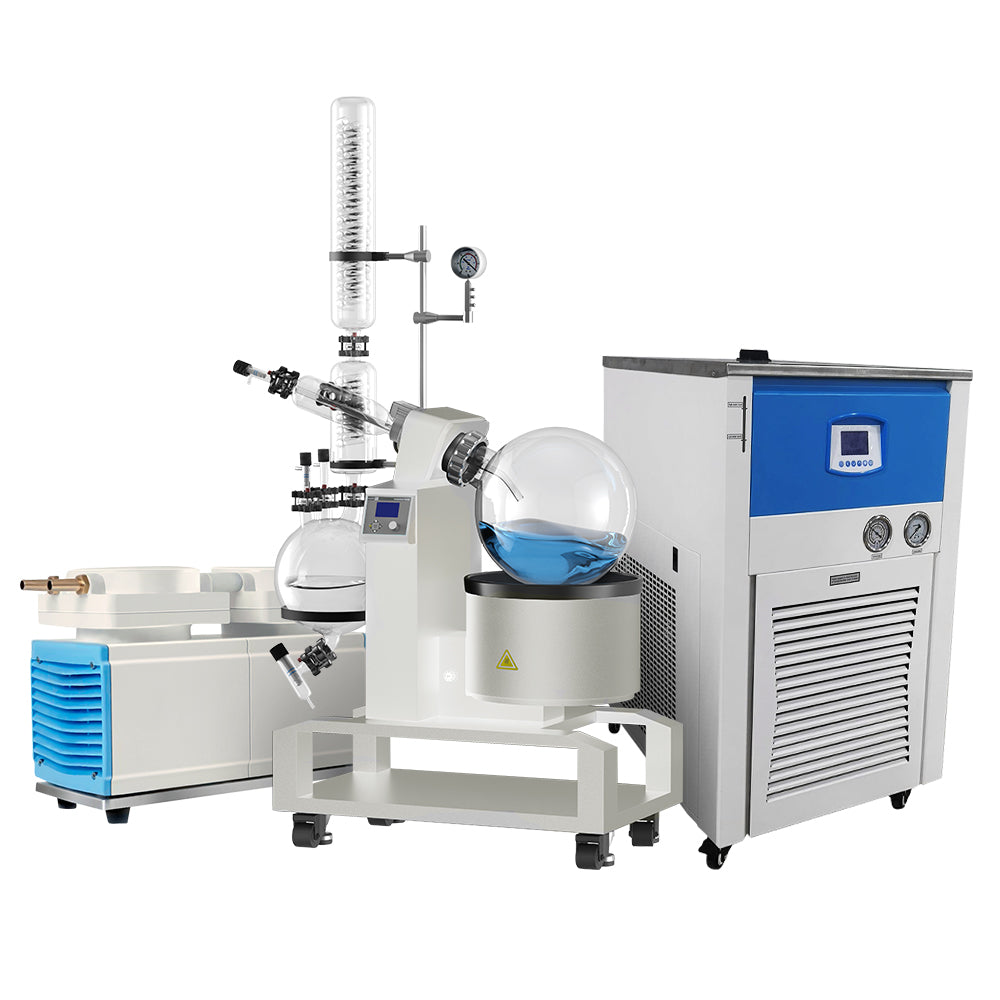

Heaters or Chillers *
Vacuum controller *
$5,699.00
customers are viewing this product

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.

WTRE-10 evap is larger model give users the ability to recover larger amounts of solvent.

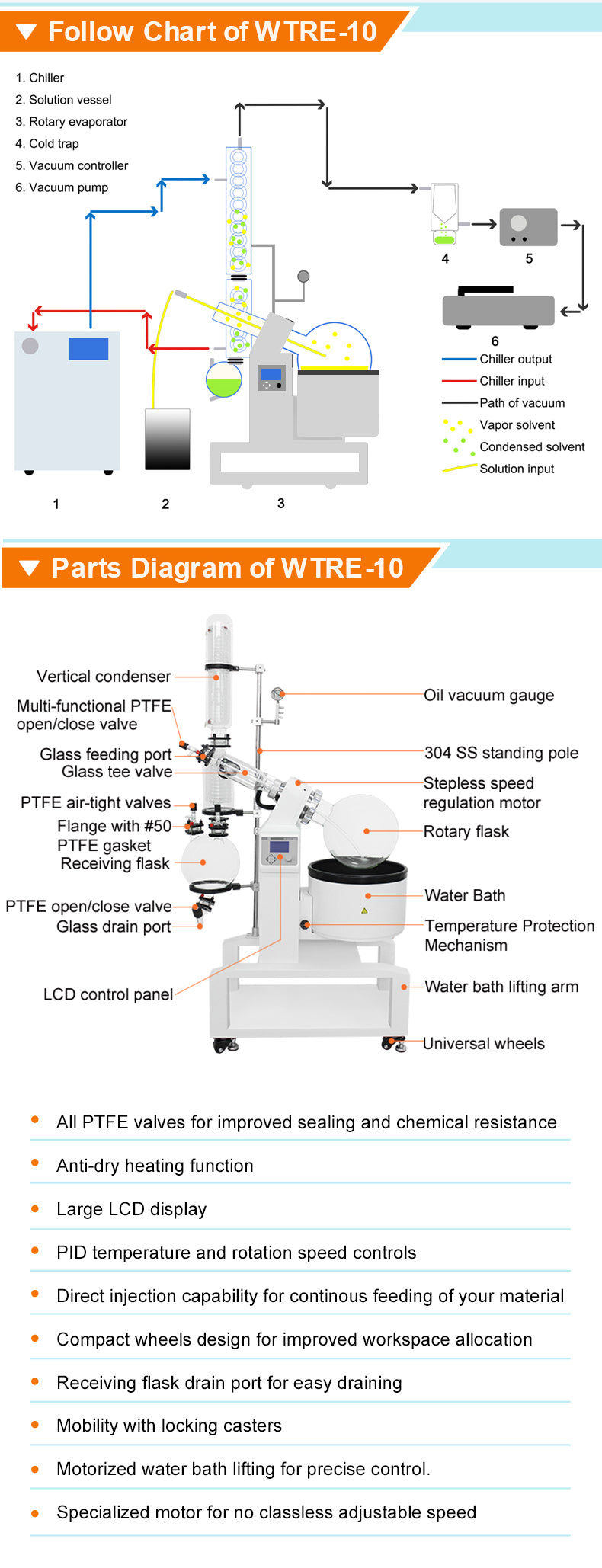

Features:

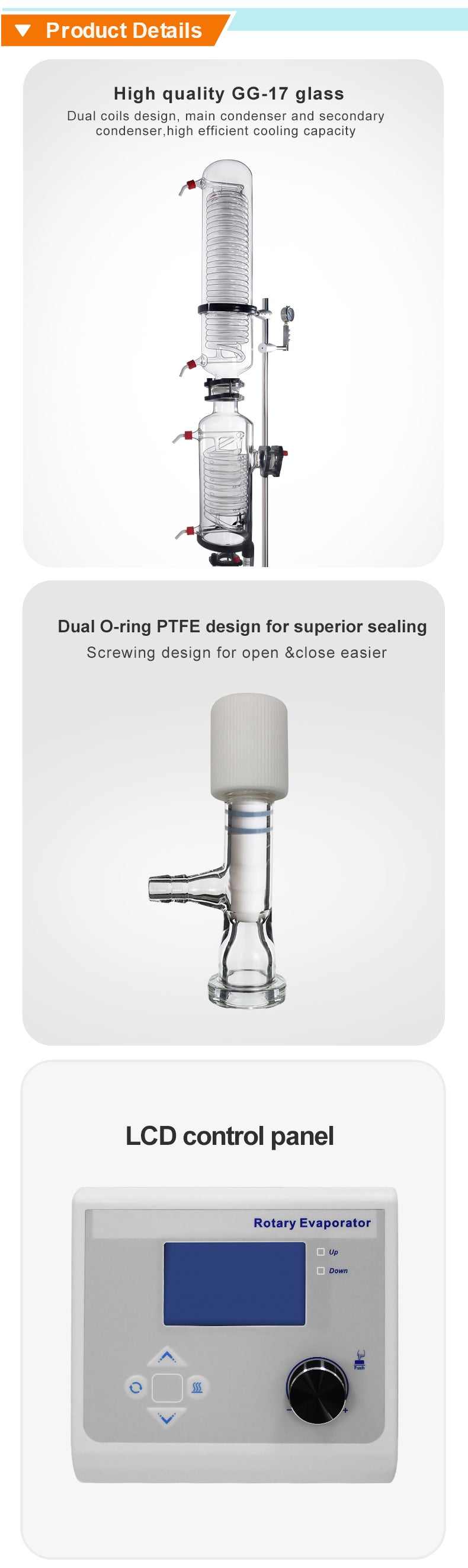

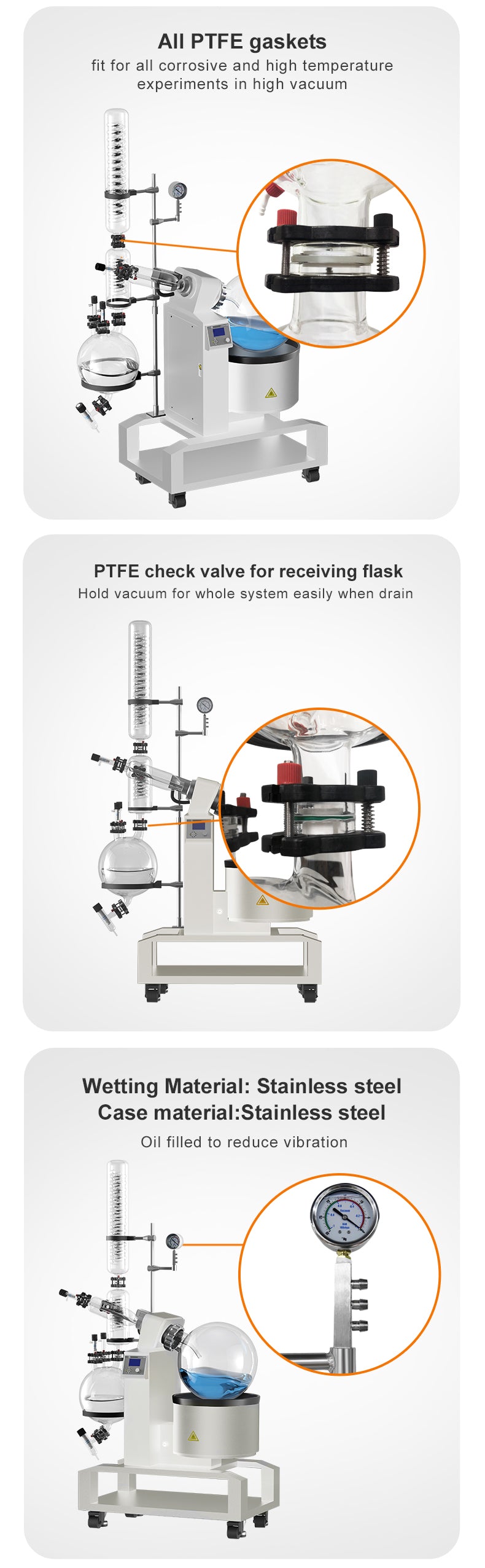

All PTFE valves for improved sealing and chemical resistance

Anti-dry heating function

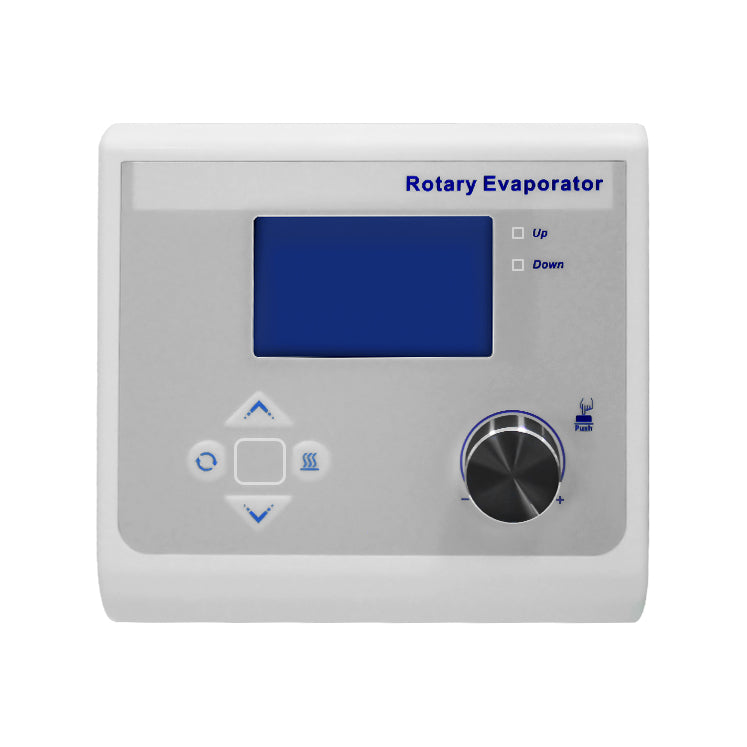

Large LCD display

PID temperature and rotation speed controls

Direct injection capability for continous feeding of your material

Compact wheels design for improved workspace allocation

Receiving flask drain port for easy draining

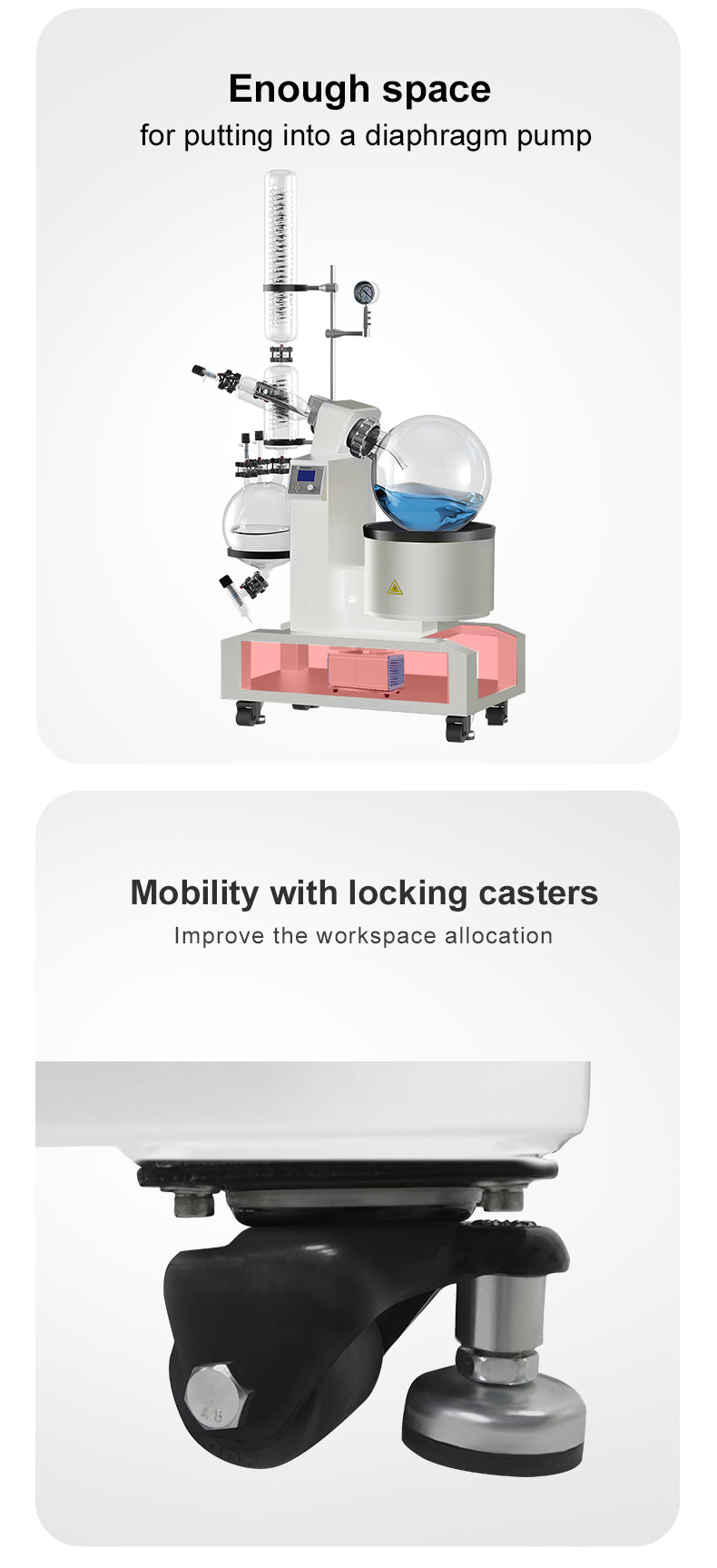

Mobility with locking casters

Motorized water bath lifting for precise control.

Specialized motor for no classless adjustable speed

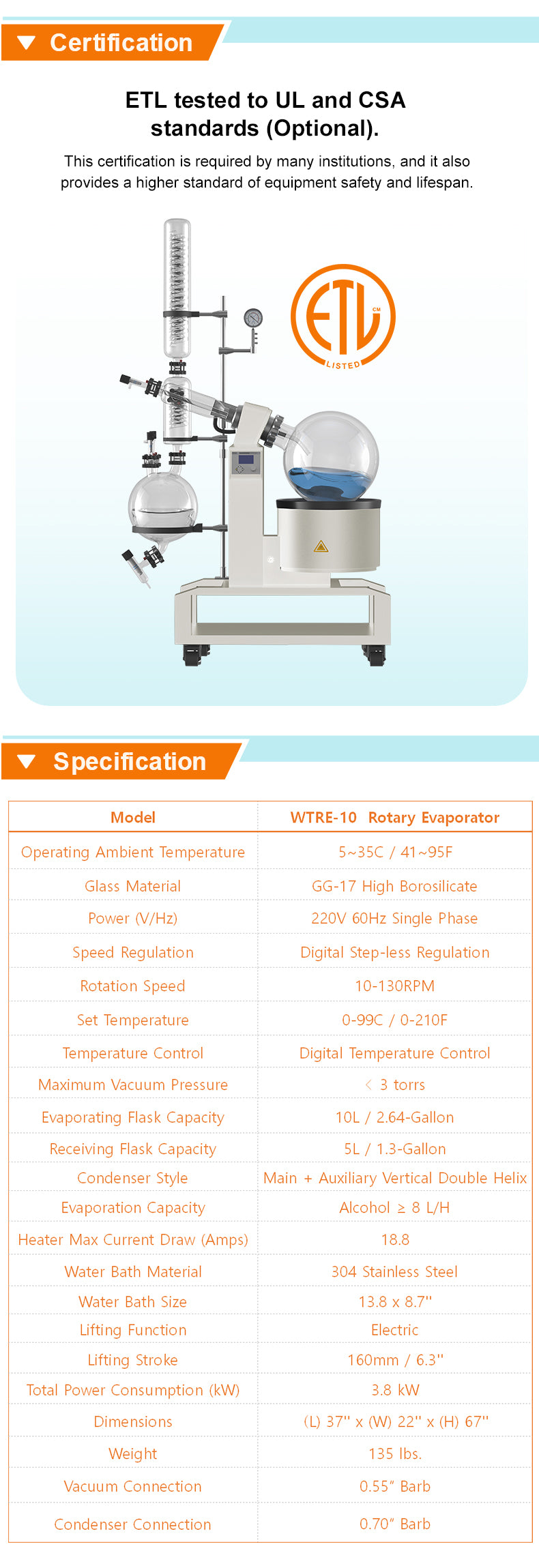

Specifications:

Model WTRE-10  Rotary Evaporator
Operating Ambient Temperature 5~35C / 41~95F
Glass Material GG-17 High Borosilicate
Power (V/Hz) 220V 60Hz Single Phase
Speed Regulation Digital Step-less Regulation
Rotation Speed 10-130RPM
Set Temperature 0-99C / 0-210F
Temperature Control Digital Temperature Control
Maximum Vacuum Pressure < 3 torrs
Evaporating Flask Capacity 10L / 2.64-Gallon
Receiving Flask Capacity 5L / 1.3-Gallon

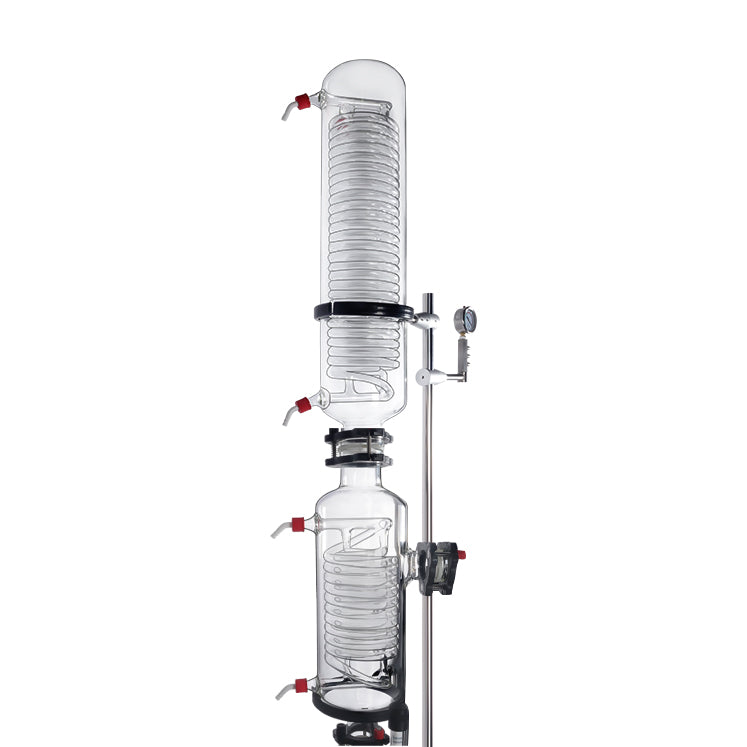

Condenser Style Main + Auxiliary Vertical Double Helix
Evaporation Capacity Alcohol ≥ 8 L/H
Heater Max Current Draw (Amps) 18.8
Water Bath Material 304 Stainless Steel
Water Bath Size 13.8 x 8.7''
Lifting Function Electric
Lifting Stroke 160mm / 6.3''
Total Power Consumption (kW) 3.8 kW
Dimensions (L) 37'' x (W) 22'' x (H) 67''
Weight 135 lbs.
Vacuum Connection 0.55” Barb
Condenser Connection 0.70” Barb
