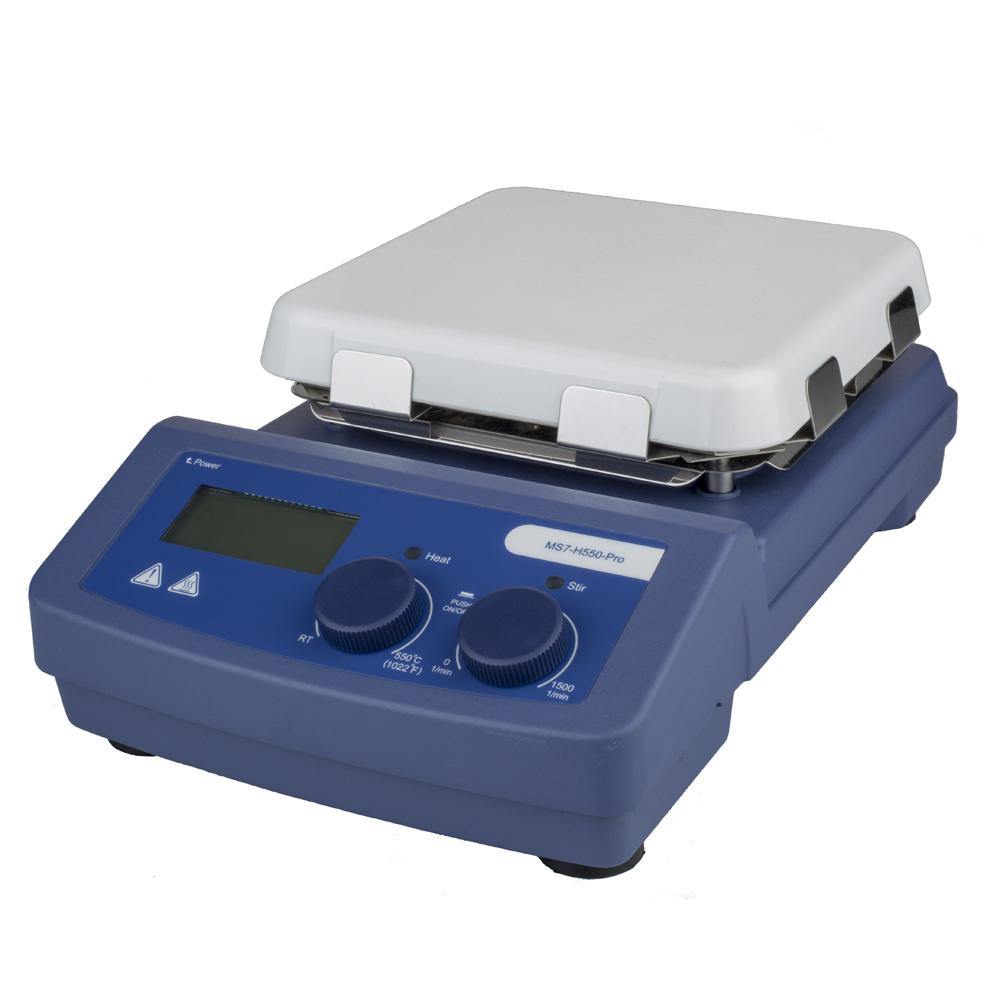

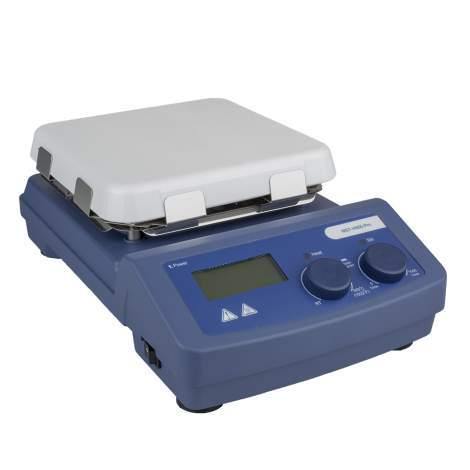

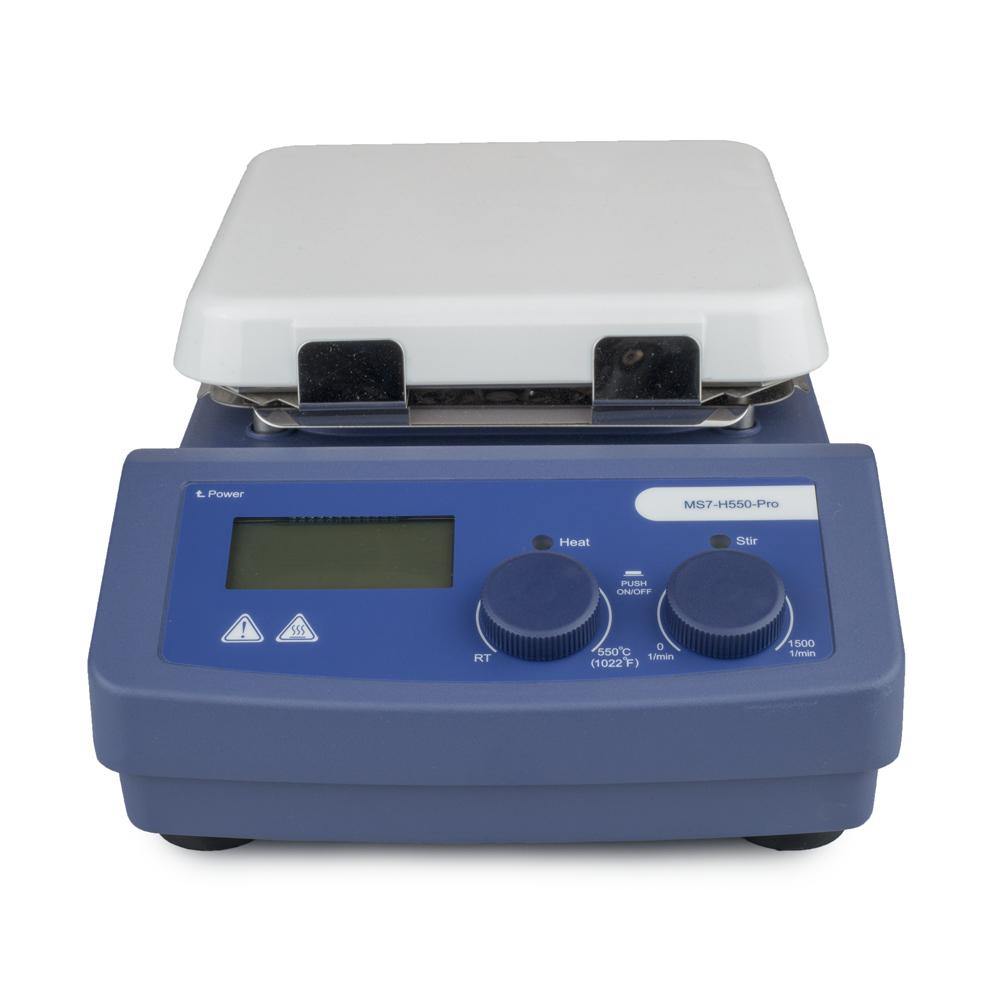

550℃ LCD Digital Magnetic Hot Plate Stirrer
Features:
1. LCD display for precise monitoring of speed and temperature
2. Built-in PID controller ensures safe heating of the medium with overheating protection
3. Max. heating plate temperature 550℃
4. Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
5. External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2℃
6. Digital speed controlling, max. speed at 1500rpm
7. Outstanding brushless DC motor enables more stirring power
8. Two rotating knobs enable easy adjustment of speed and temperature
9. The "HOT" warning will flash when the work plate temperature is above 50℃ even when the hotplate is turned off
10. Remote function provides PC control and data transmission
Specifications:
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 0-1500rpm |
| resolution ±1rpm | |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,increment 1°C |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) |
| Overheating protection | 580°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Data connector | RS232 |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
