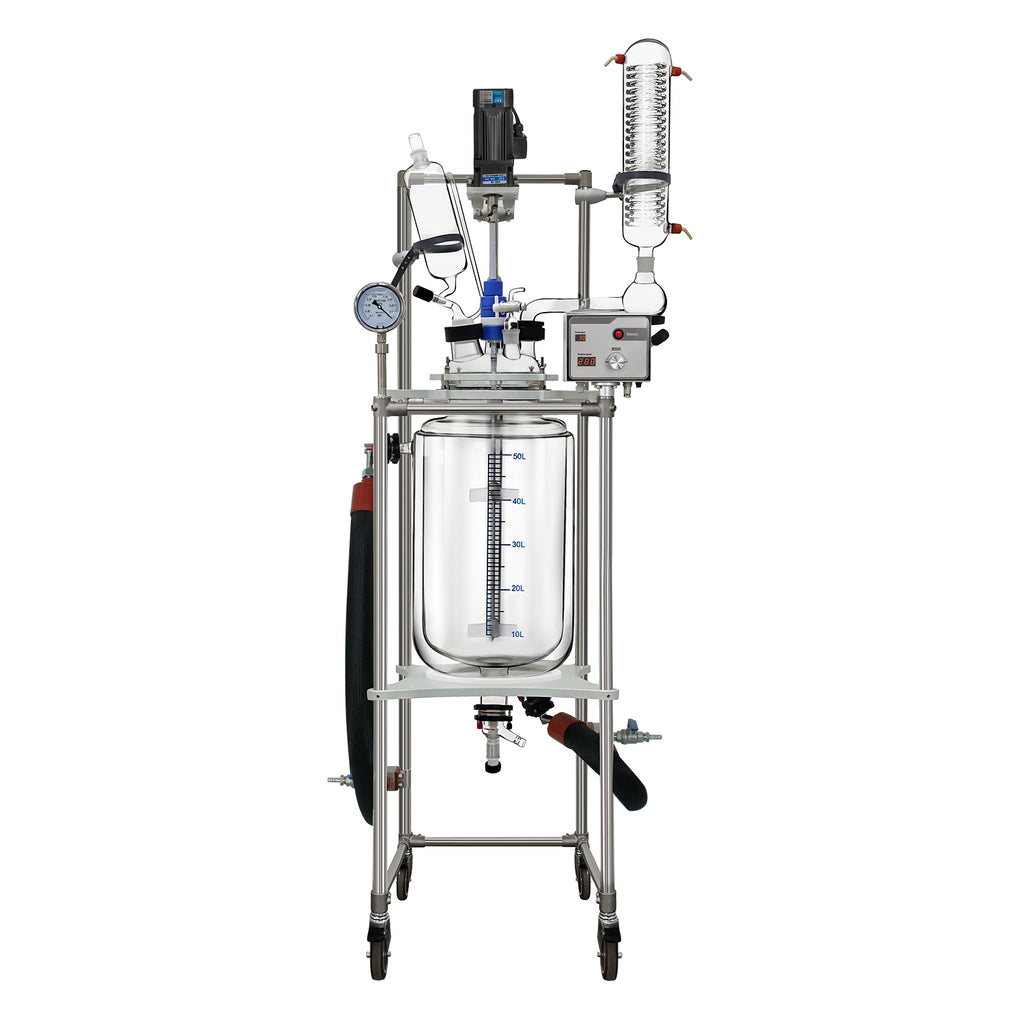

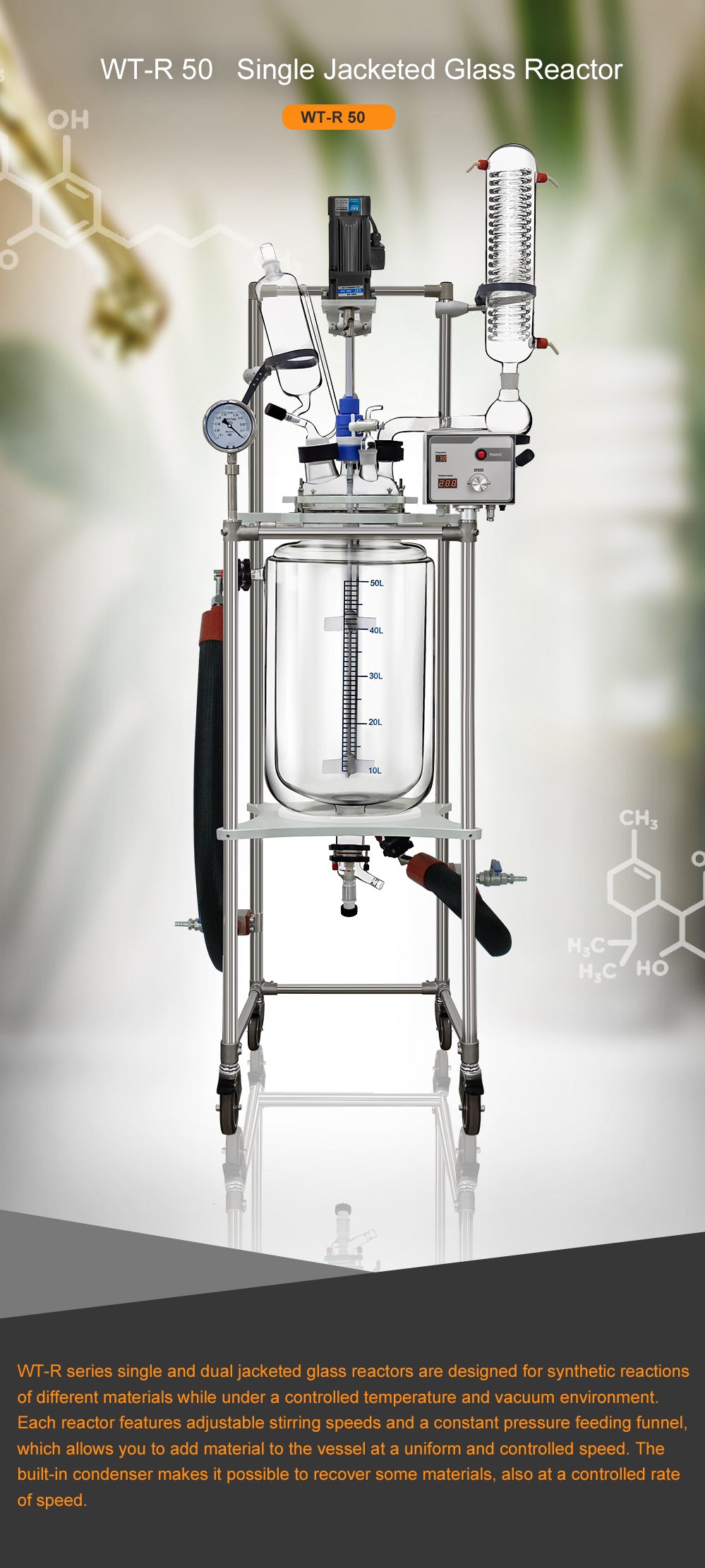

High quality WT-R 50 50L Glass Single Layer Jacketed Reactor

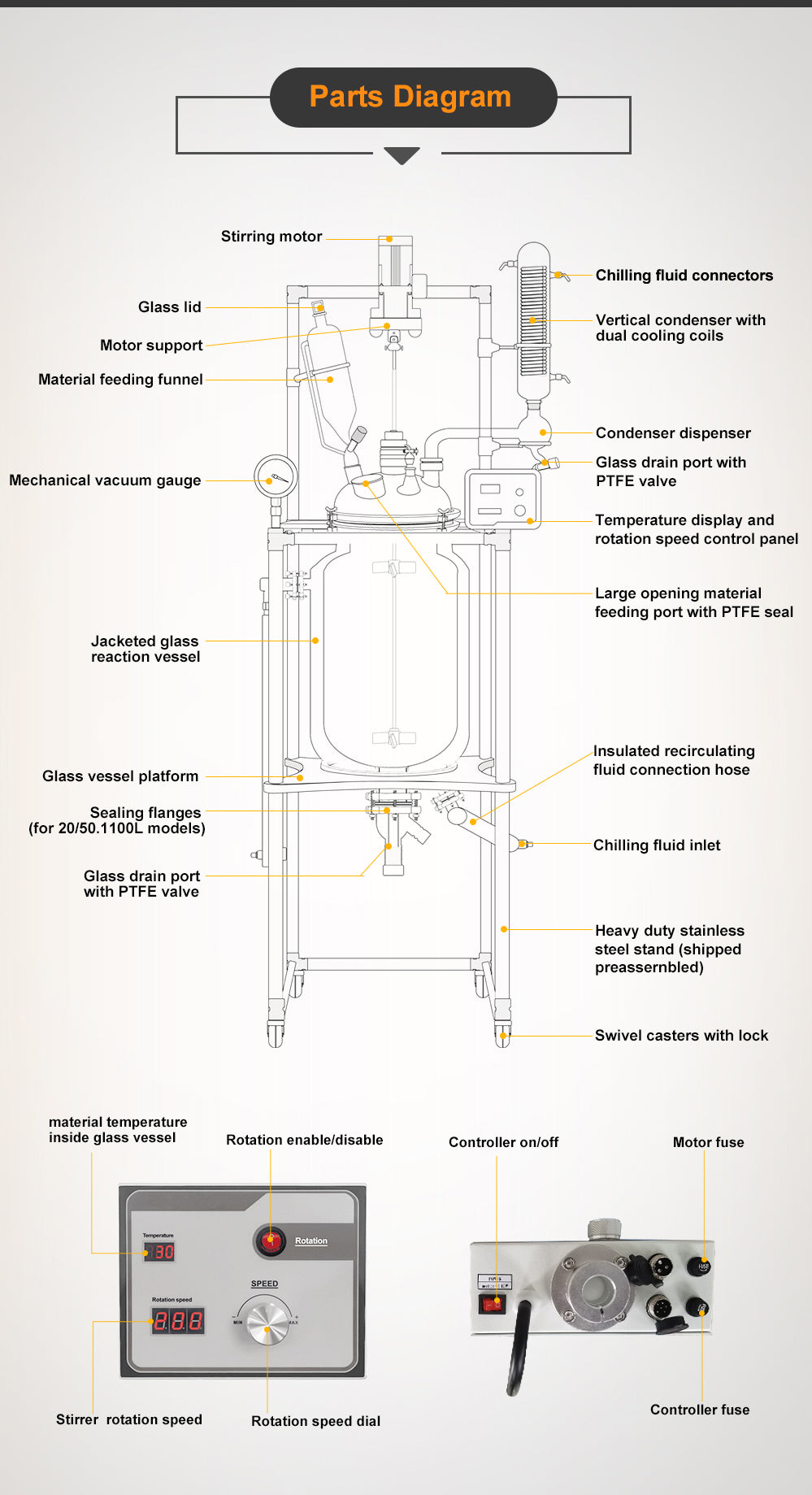

WT-R series single and dual jacketed glass reactors are designed for synthetic reactions of different materials while under a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel, which allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features

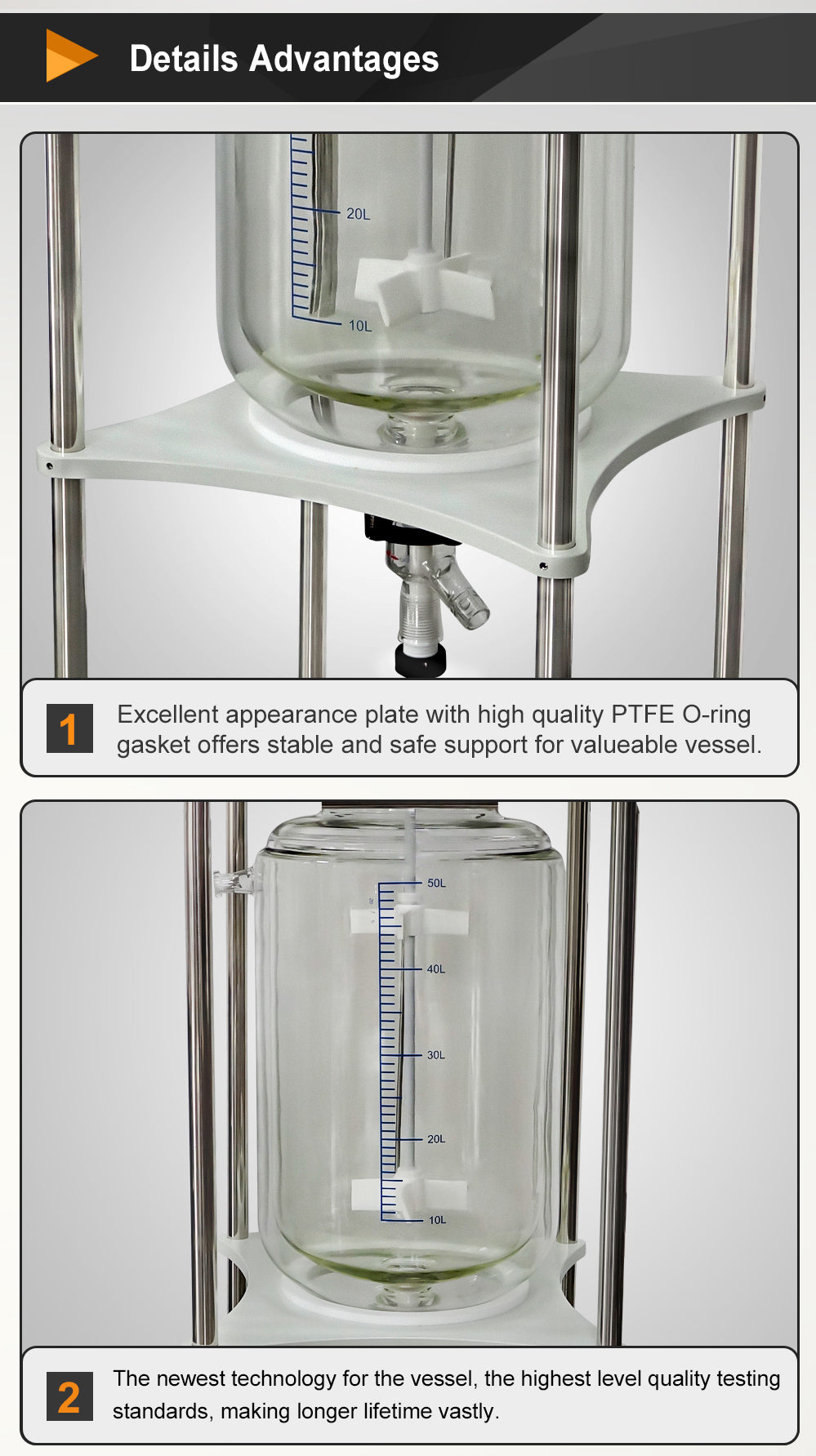

● High borosilicate glass has good physical and chemical properties.
● Wide working temperature range: -80℃ to 250℃.
● It can work under normal pressure and negative pressure, its vacuum degree can reach 0.1MPa.
● The vessel can bear the pressure range from -0.1MPa to 0MPa.

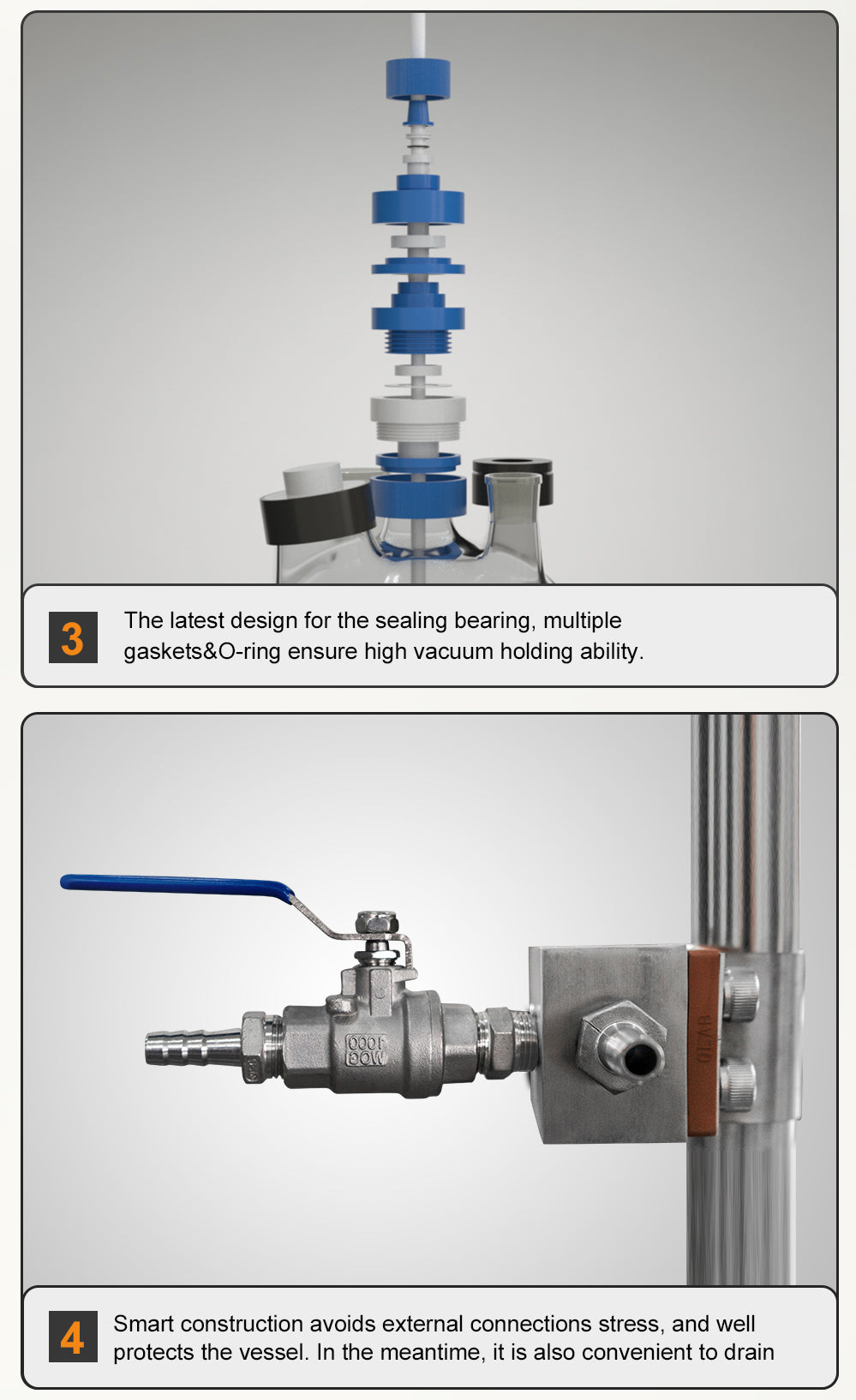

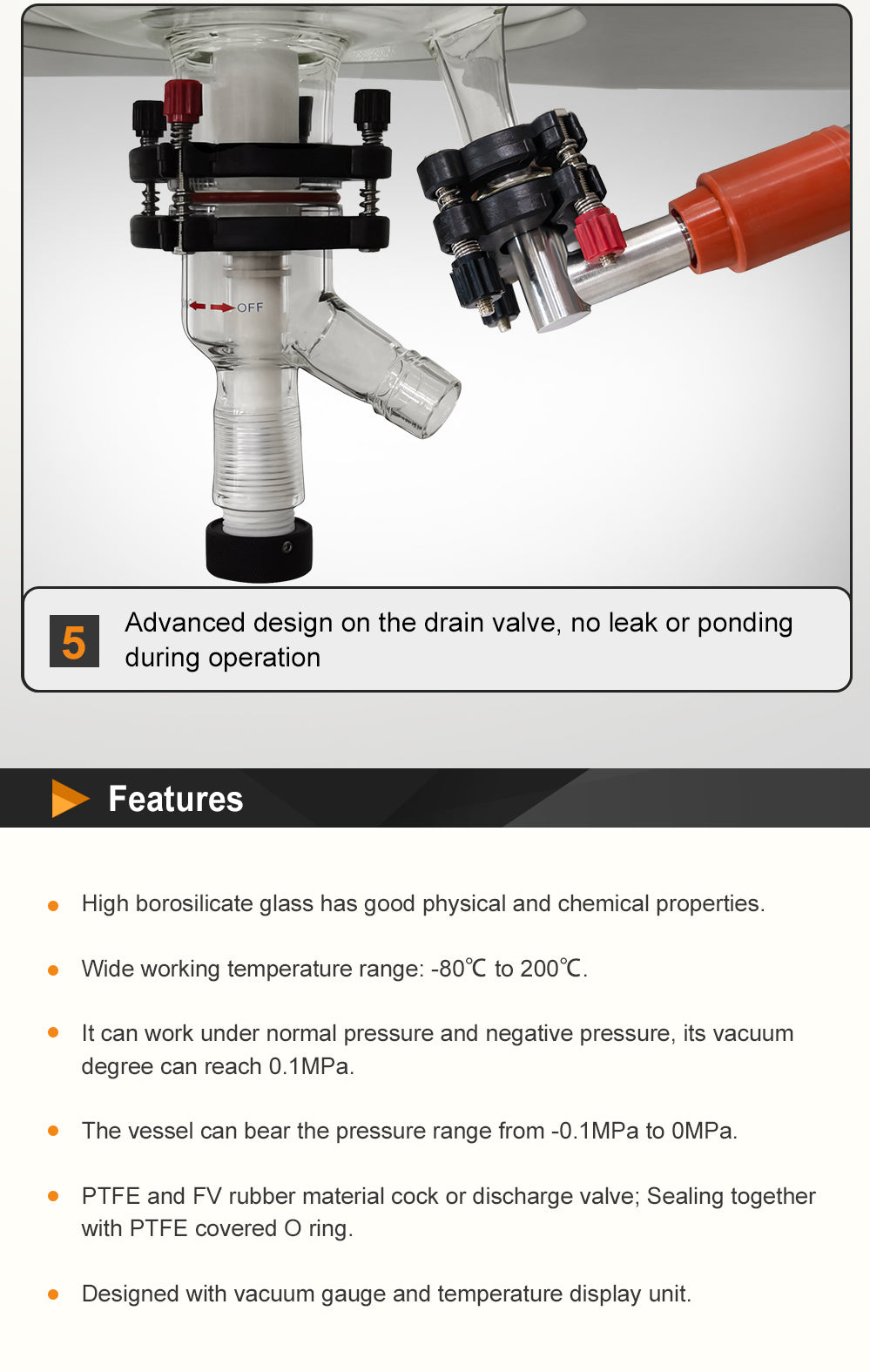

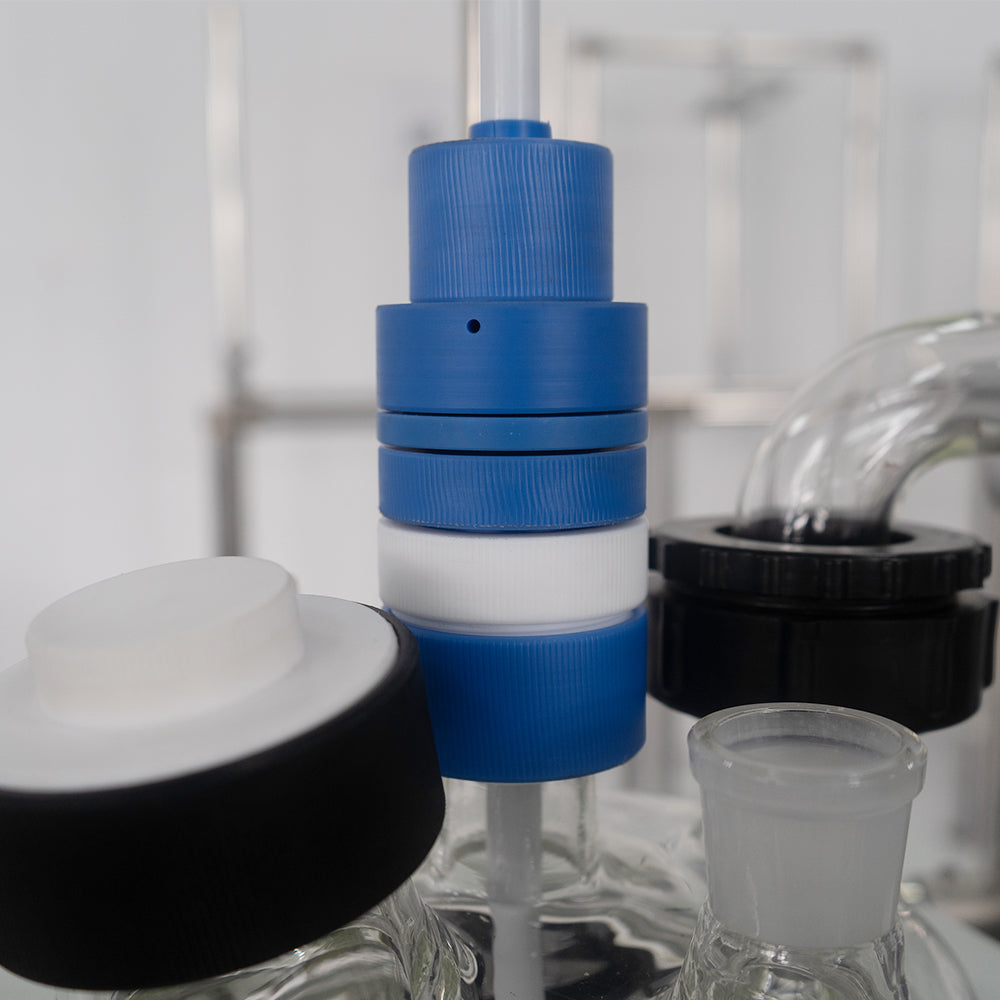

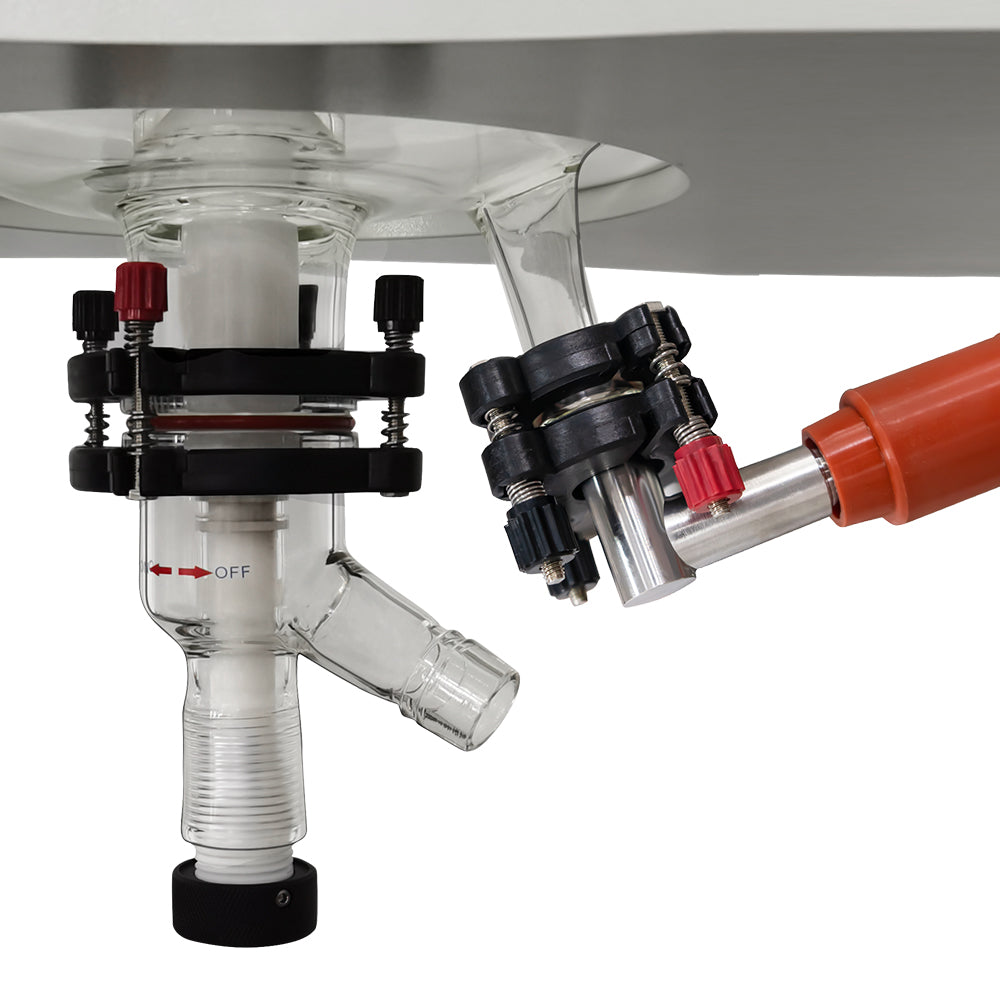

● PTFE and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
● Designed with vacuum gauge and temperature display unit.

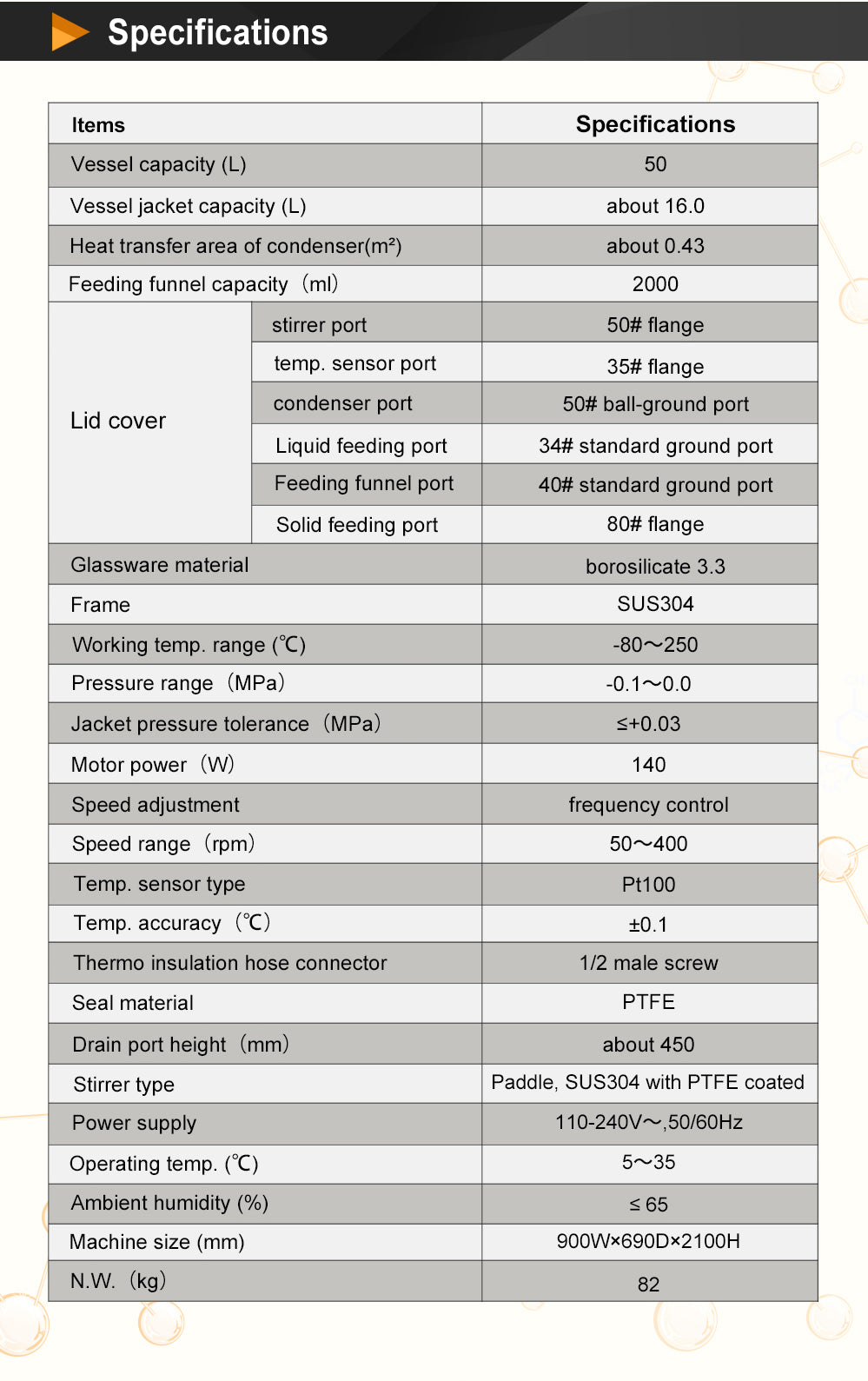

Specification
| Items | Specifications | |
| Vessel capacity (L) | 50 | |
| Vessel jacket capacity (L) | about 16.0 | |
| Heating transfer area of condenser(m²) | about 0.43 | |
| Feeding funnel capacity（ml） | 2000 | |
| Lid cover | stirrer port | 50# flange |
| temp. sensor port | 35# flange | |
| condenser port | 50# ball-ground port | |
| Liquid feeding port | 34# standard ground port | |
| Feeding funnel port | 40# standard ground port | |
| Solid feeding port | 80# flange | |
| Glassware material | borosilicate 3.3 | |
| Frame | SUS304 | |
| Working temp. range (℃) | -80～250 | |
| Pressure range（mPa） | -0.1～0.0 | |
| Jacket pressure tolerance（mPa） | ≤+0.03 | |

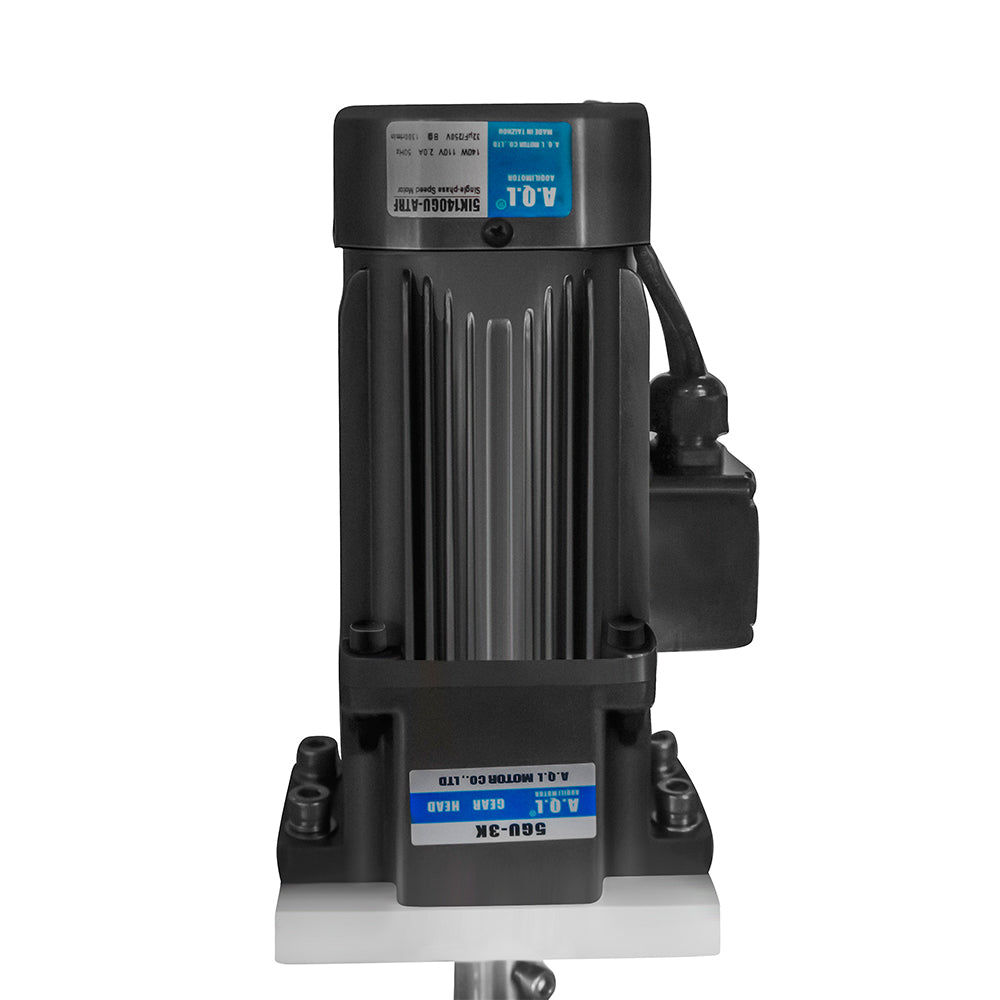

| Motor power（W） | 140 | |
| Speed adjustment | frequency control | |
| Speed range（rpm） | 50～400 | |
| Temp. sensor type | PT100 | |
| Temp. accuracy（℃） | ±0.1 | |
| Thermo insulation hose connector | 1/2 male screw | |
| Seal material | PTFE | |
| Drain port height（mm） | about 450 | |
| Stirrer type | Paddle, SUS304 with PTFE coated | |
| Power supply | 110-240V～,50/60Hz | |
| Operating temp. (℃) | 5～35 | |
| Ambient humidity (%) | ≤ 65 | |
| Machine size (mm) | 900W×690D×2100H | |
| N.W.（kg） | 82 | |
