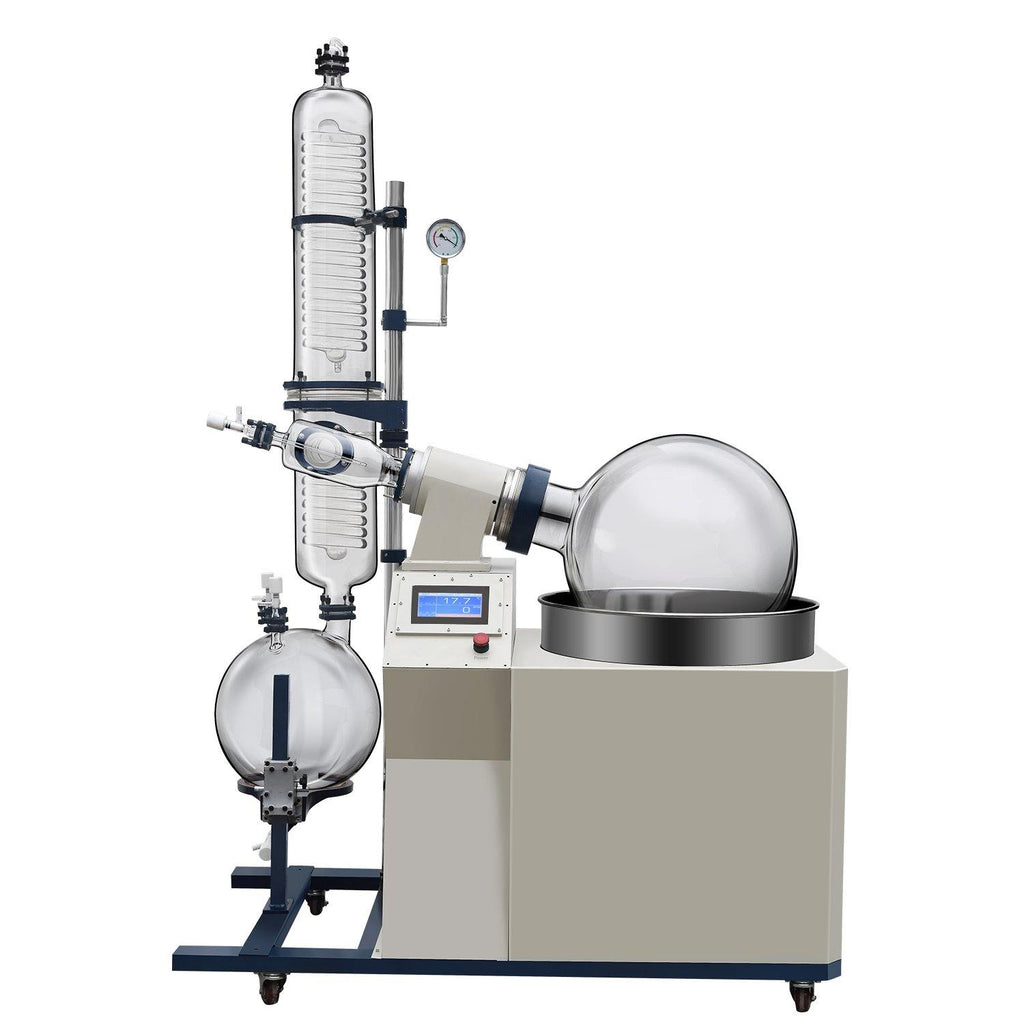

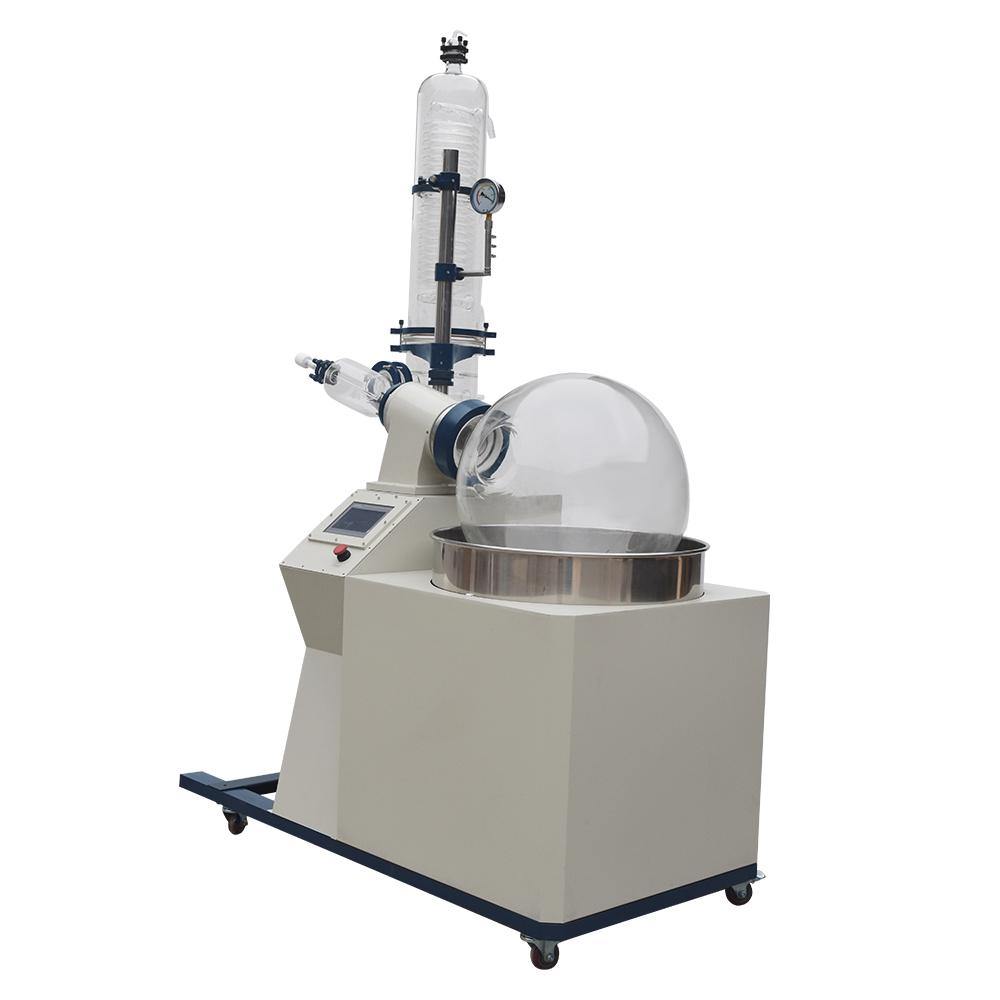

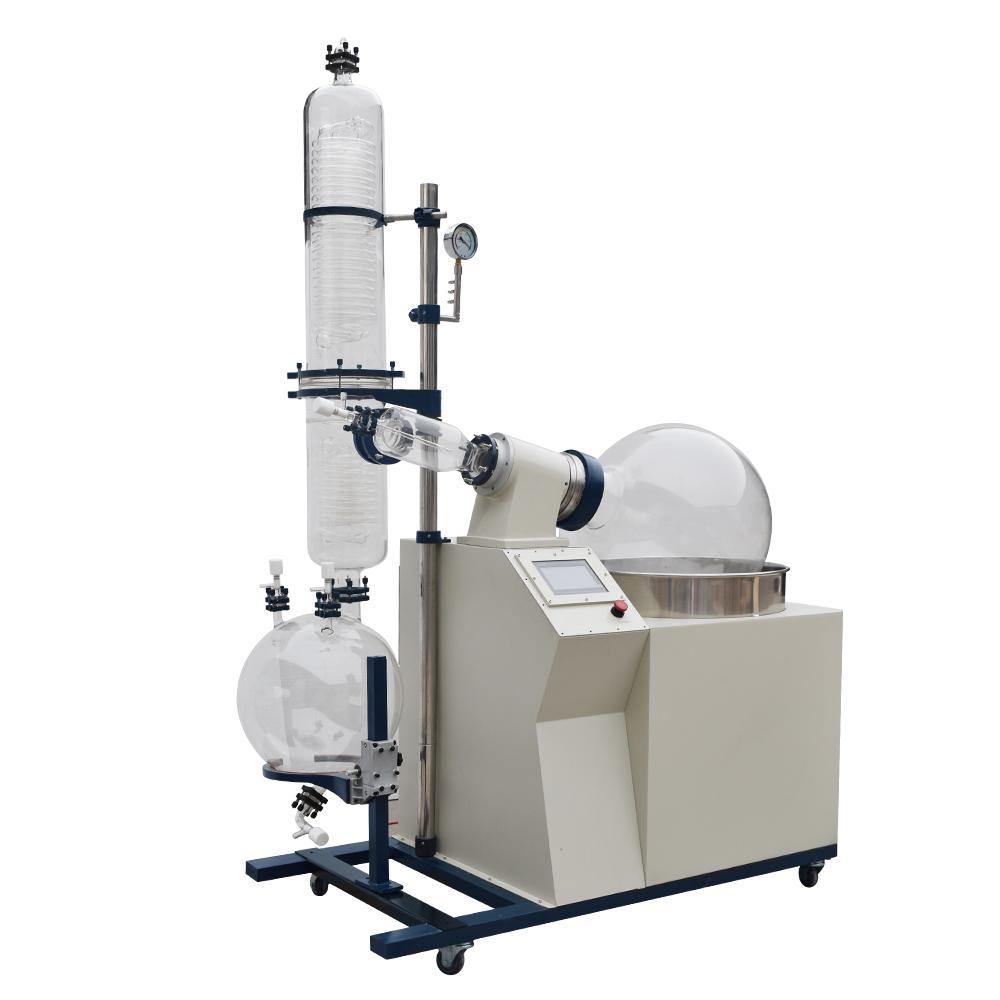

100L Touch screen Rotary Evaporator with Motorized Lift

A0101007
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by...
$24,832.00
Title *
$24,832.00
customers are viewing this product

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.


WTRE-100 evap is larger model give users the ability to recover larger amounts of solvent.


Features:
1.All PTFE valves for improved sealing and chemical resistance
2.Anti-dry heating function
3.Large LCD touch screen display, timing function is available
4.PID temperature and rotation speed controls
5.Direct injection capability for continous feeding of your material
6.Receiving flask drain port for easy draining
7.Mobility with locking casters
8.Motorized water bath lifting for precise control.
9.Specialized motor for no classless adjustable speed

Specifications:

Model WTRE-100  Rotary Evaporator
Operating Ambient Temperature 5~35C / 41~95F
Glass Material GG-17 High Borosilicate
Power (V/Hz) 240V 60Hz Three Phases
Speed Regulation Digital Step-less Regulation
Rotation Speed 10~110RPM
Set Temperature RT~180C / RT~356F
Temperature Control LCD Temperature Control
Maximum Vacuum Pressure < 3 torrs / 0.098Mpa
Evaporating Flask Capacity 100L / 26 gallon
Receiving Flask Capacity 50L / 13.2 gallon

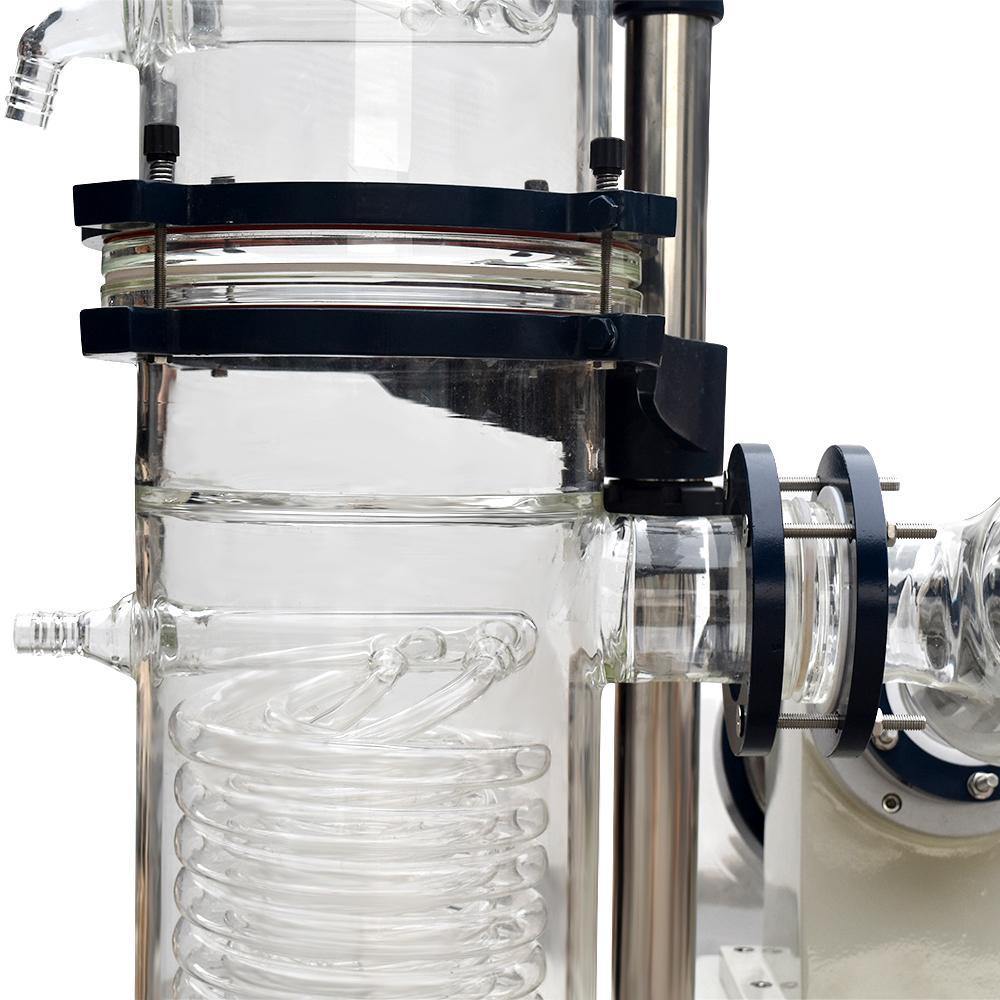

Condenser Style Main + Auxiliary Vertical Double Helix
Evaporation Capacity  Alcohol ≥ 48 L/H
Recovery Capacity Alcohol ≥ 40 L/H
Heater Max Current Draw (Amps) 50
Water Bath Material 304 Stainless Steel
Water Bath Size 31’’x 13’’
Lifting Function Electric
Lifting Stroke 180mm / 7''
Motor Power 400w
Total Power Consumption (kW) 12Kw
Dimensions (L) 67'' x (W) 34'' x (H) 102''
Weight 750 lbs.
Vacuum Connection 0.55” Barb
Condenser Connection 0.70” Barb
