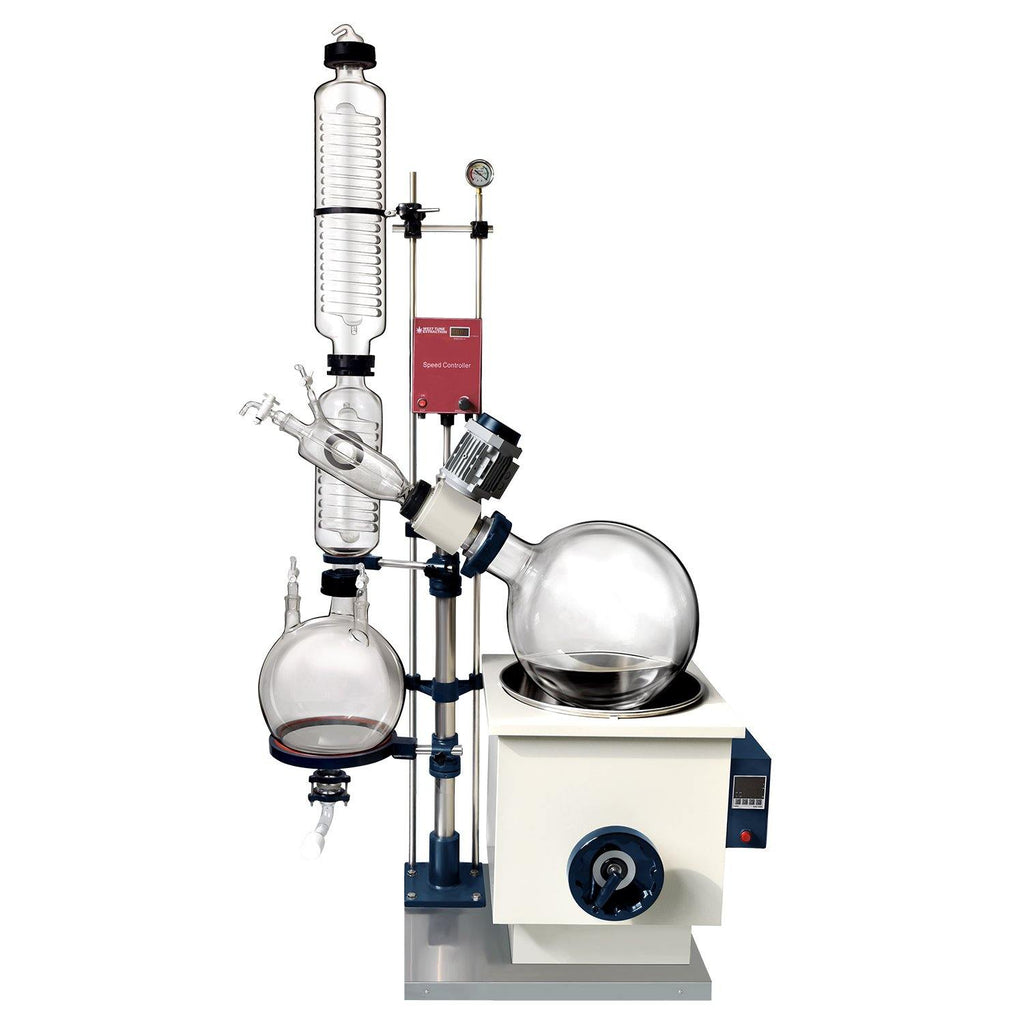

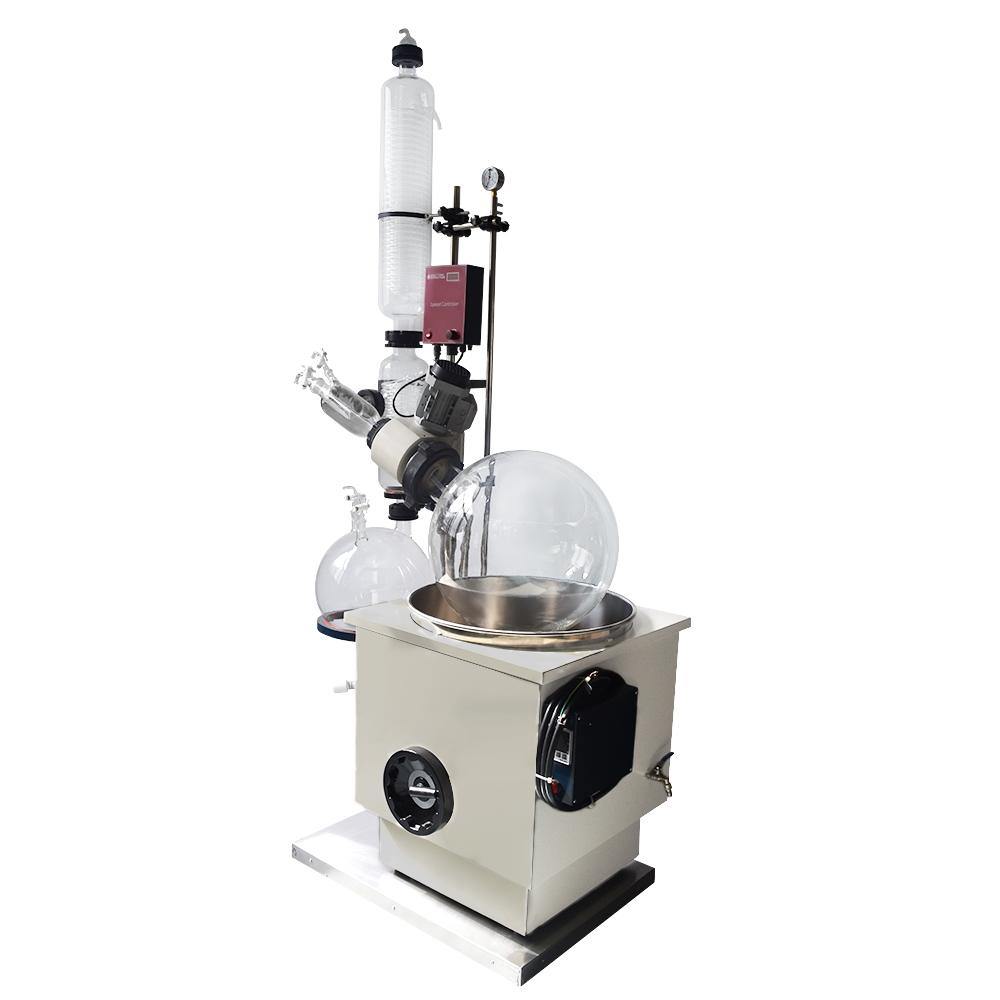

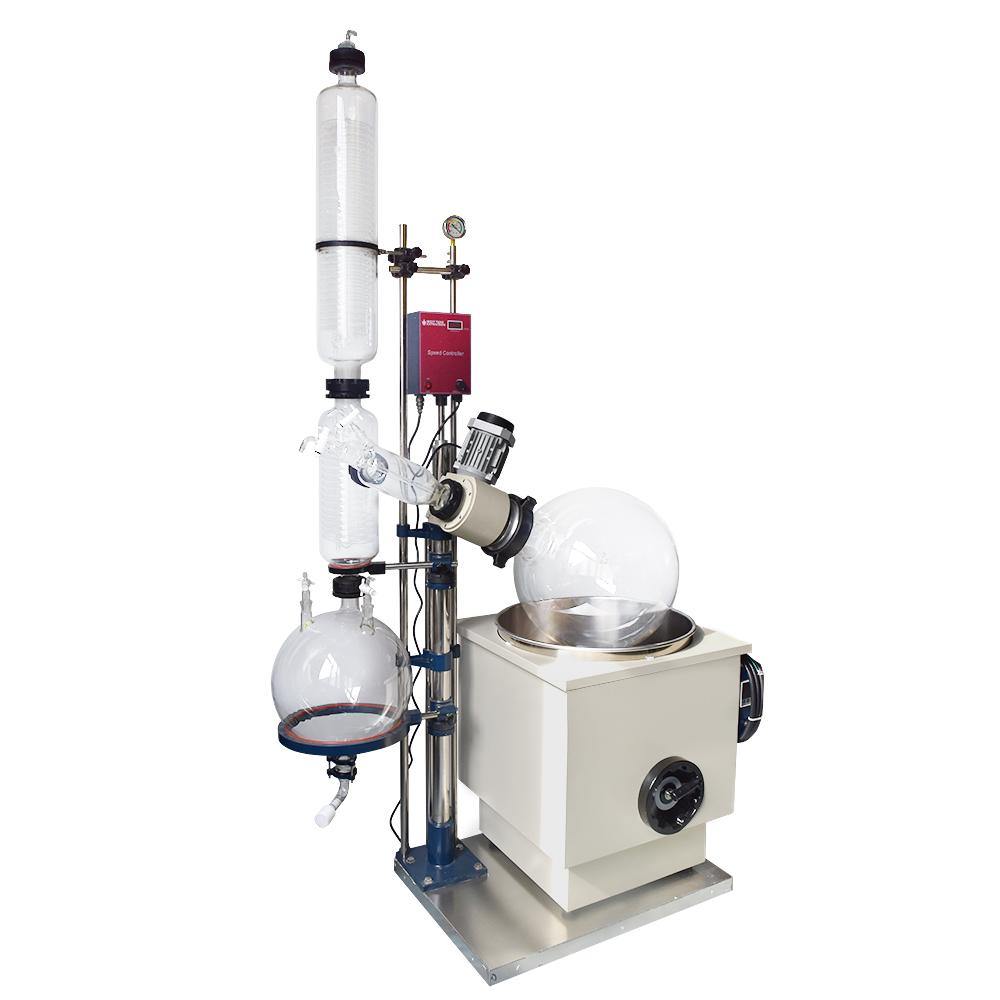

13-Gallon 50L Manual Lifting Rotary Evaporator
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.
WTRE-50M evap is larger model give users the ability to recover larger amounts of solvent, it is an ideal option for limited budget.
Follow chart of West Tune evap.
Features:
All PTFE valves for improved sealing and chemical resistance
PID rotation speed controls
Direct injection capability for continous feeding of your material
Removeable base & bath improved workspace allocation
Receiving flask drain port for easy draining
Specialized motor for stepless adjustable speed
Specifications:
| Model | WTRE-50M Rotary Evaporator |
| Operating Ambient Temperature | 5~35C / 41~95F |
| Glass Material | GG-17 High Borosilicate |
| Power (V/Hz) | 220V 60Hz Single Phase |

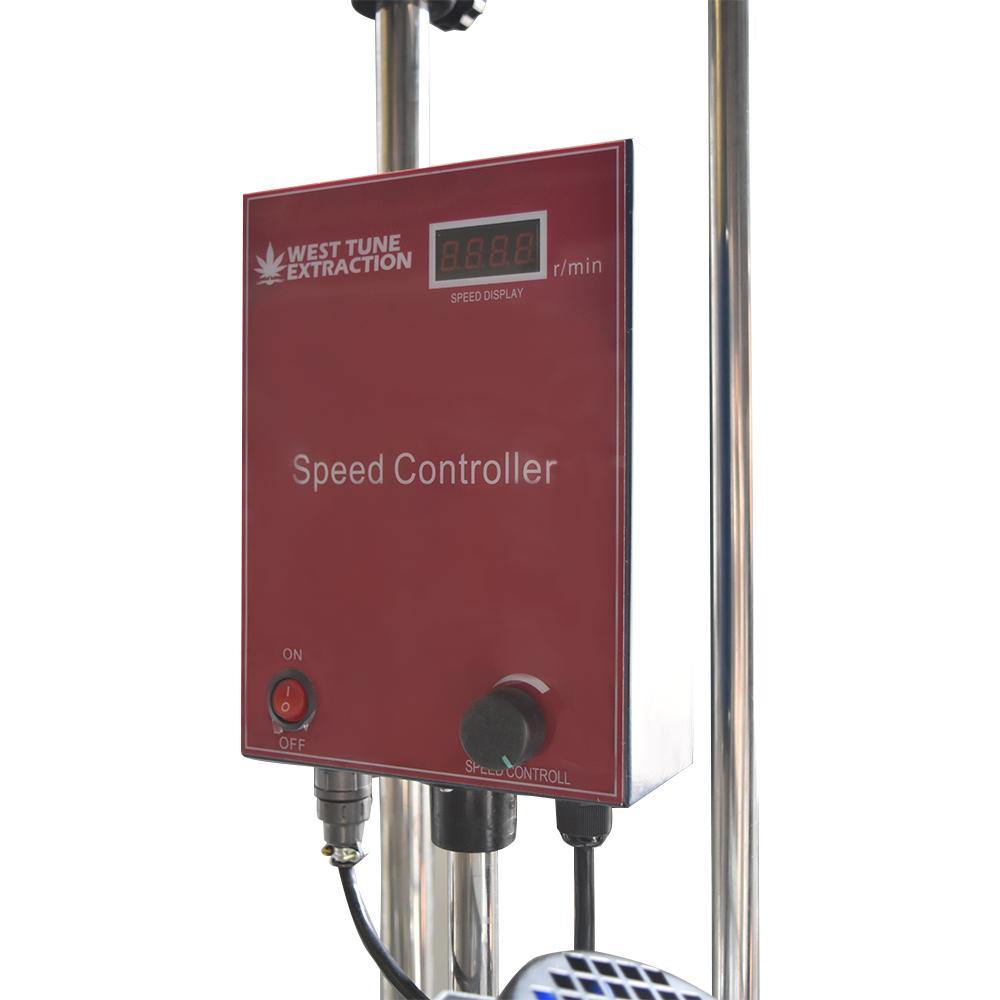

| Speed Regulation | Digital Step-less Regulation |
| Rotation Speed | 0~110RPM |
| Set Temperature | 0-99C / 0-210F |

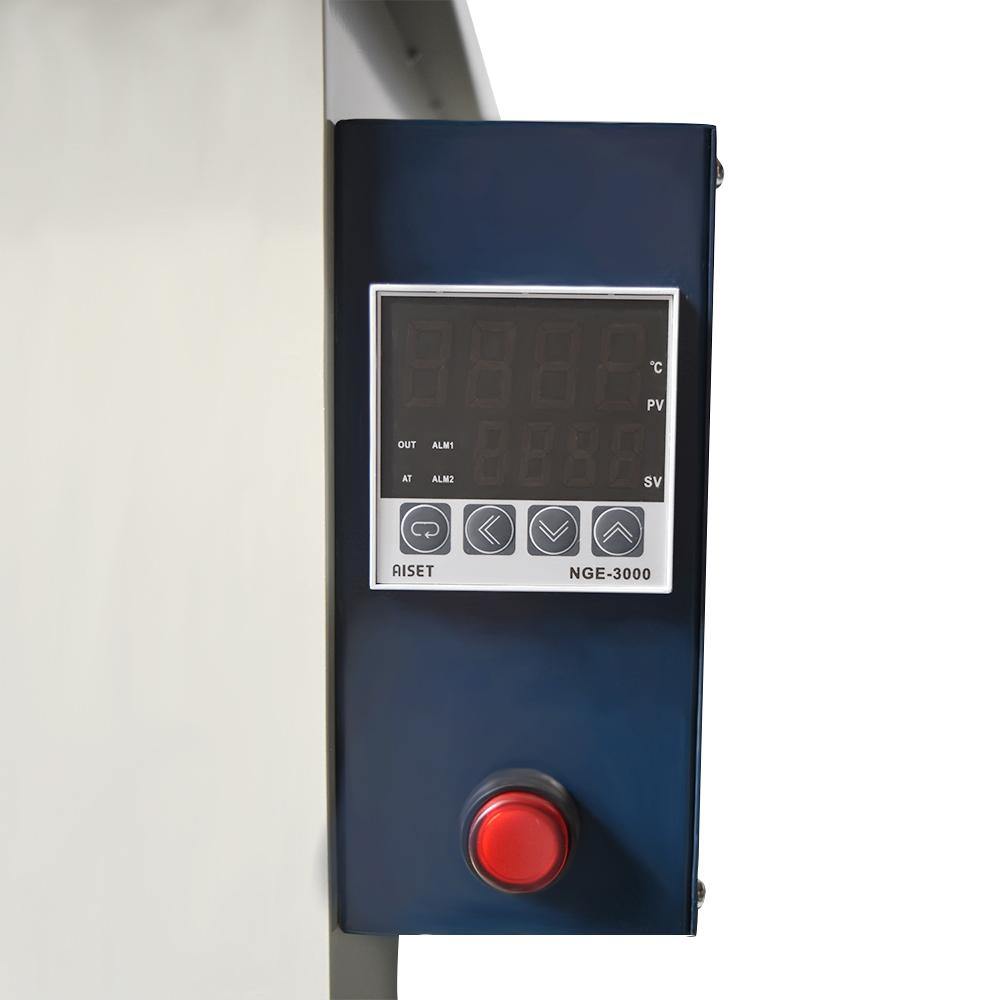

| Temperature Control | Digital Temperature Control |
| Maximum Vacuum Pressure | < 3 torrs |
| Evaporating Flask Capacity | 50L / 13.0 gallon |
| Receiving Flask Capacity | 20L / 5.3 gallon |
| Condenser Style | Main + Auxiliary Vertical Double Helix |
| Evaporation Capacity | H2O ≥ 11 L/H |
| Bath Heating Max Current Draw | 23 Amps |
| Water Bath Material | 304 Stainless Steel |
| Water Bath Heating Power | 8 kW |
| Motor Power | 120 W |
| Lifting Function | Manual |
| Lifting Stroke | 180mm / 7.0'' |
| Dimensions | (L) 58'' x (W) 25'' x (H) 97'' |
| Weight | 320 lbs. |
| Vacuum Connection | 0.55” Barb |
| Condenser Connection | 0.70” Barb |
