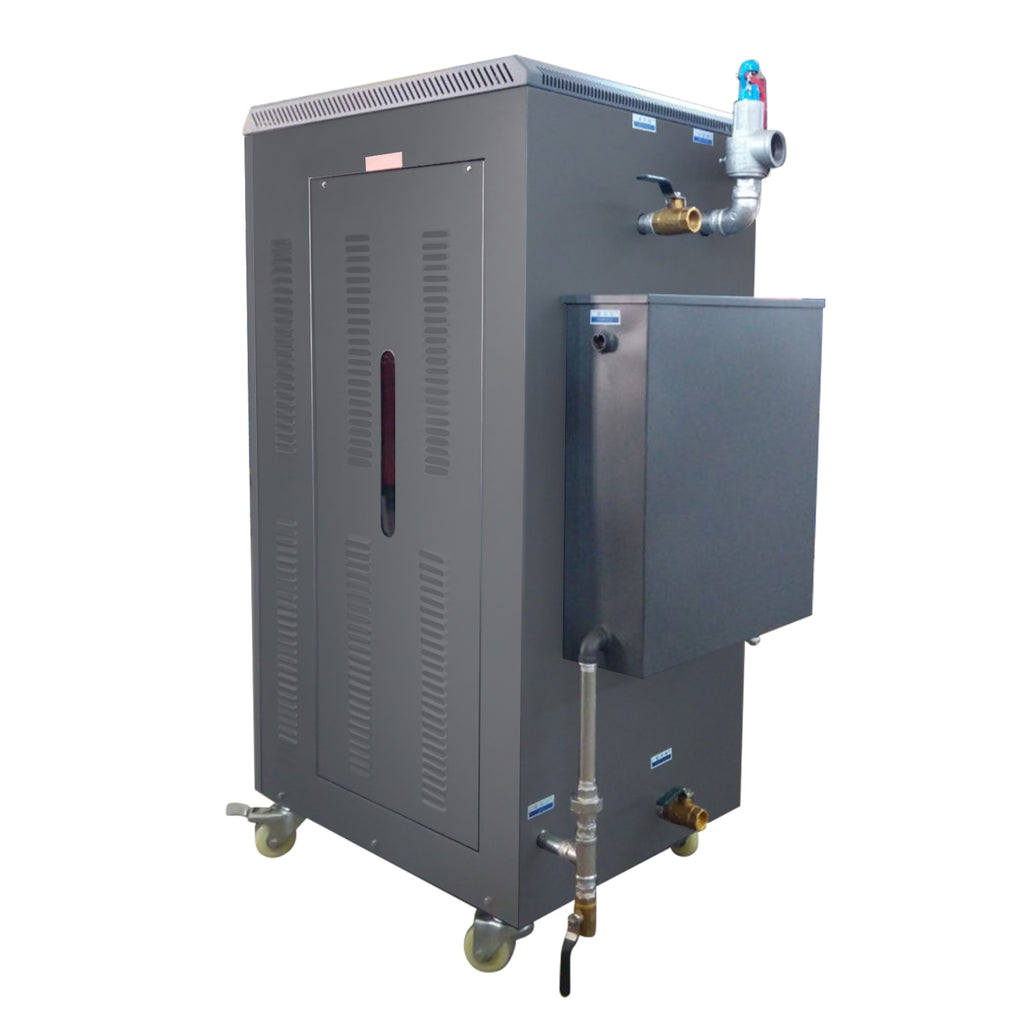

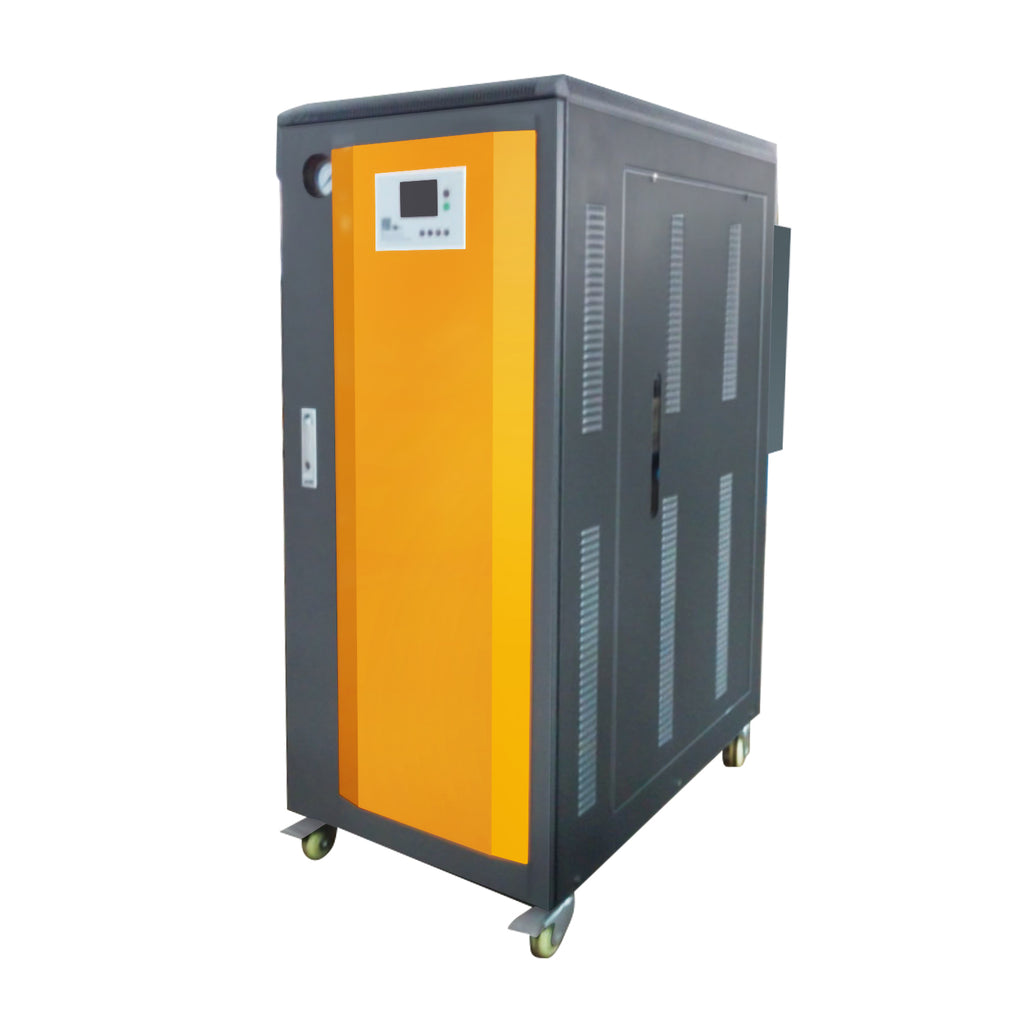

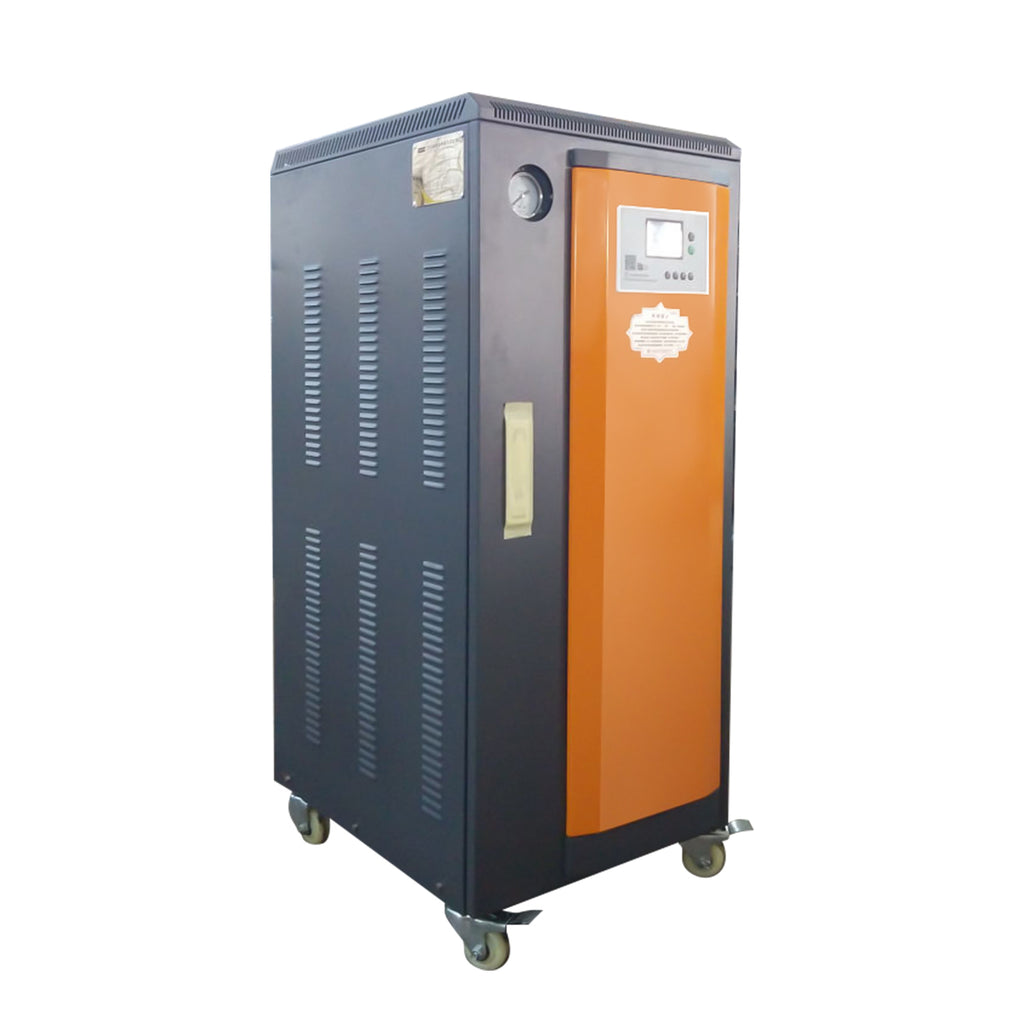

120KW Electric Steam Boiler (220V/60HZ 3P)
The WTEB-120KW boiler can provide sufficient heat support during the production of CBD oil. All pipes and instruments are connected by using stainless pipes or copper pipes, and electrical appliances are the most famous Delixi electric appliances, which are safe and reliable with luxurious configuration.
The boiler operating system is automatically controlled, and all running state can be seen on the LCD screen.
While ensuring safe production, it is equipped with the soft water device automatically completes the cycle of softening and regeneration according to the pre-set program.
Boiler Features:
- Use LCD Automatic Intelligent Electronic Control System
- The Use of High-quality Core Components—Electric Heating Pipe
- Use High-quality Components
- Multiple Safety Interlock Protection
- Extremely Easy to Install and Use
- Use Electricity Is More Environmentally Friendly and More Economical
Water Softener Equipment Features:
- high degree of automation
- water quality is stable and safe
- the structure of the equipment is compact and reasonable: convenient operation and maintenance, high efficiency and low consumption, saving water and electricity, and small area.
- Long service life: the special composite material is resistant to corrosion and aging, which obviously prolongs the service life.
- The softening water treatment equipment and boiler can effectively prevent boiler inner gallbladder and heating pipe from scaling, and effectively prolong the service life of the boiler.
Specifications:
Type |
LDR0.172-0.8 |
Power |
120KW |
Steam Capacity |
172kg/h |
Steam Temperature |
175℃ |
Voltage |
220V 60HZ 3P |
Heat QTY |
103200kcal/h |
Rated Steam Pressure |
0.8Mpa (8 bar) |
Boiler Net Weight |
270KG |
Steam Outlet |
DN25 |
Water Inlet |
DN25 |
Drain Outlet |
DN15 |
Control Type |
LCD intelligent controller |
Heating Tube |
4 set, each 30KW |
Size L*W*H |
1170*650*1450mm |
Power Wire |
≧95mm2 |
Material of Heating Tube |
316L Stainless Steel Material |
With 4 Movable Wheels |
|
Water Softener |
300Liter/h Full automatic type Including 1 set salt tank, 1 set water softener |
Packing list:
Boiler |
Item |
Spec/Model |
Qty |
Boiler Main Part |
LDR0.172-0.8 |
1Set |
|
LCD Controller |
Standard |
1Pc |
|
Main Electrical Appliance |
Leakage Protection:DZ47LE-3/3 C 60A AC Contactor:CJX2-5011 220V |
4Sets |
|
Heating Element |
Spec: 30KW-600-146 Material: 316L Stainless Steel |
4Sets |
|
Water Pump |
750W/Brass Material Pump Head |
1Set |
|
Water tank (with float ball) |
Water Tank: SS304 with Spray Paint/ Float Ball:DN15 |
1Set |
|
Gauges and Valves |
Safety Valve: DN25 |
1Pc |
|
Steam Valve: DN25 |
1Pc |
||
Drain Valve: DN25 |
1Pc |
||
Check Valve: DN15 |
2pcs |
||
Pressure Controller: PC10 |
1Pc |
||
Pressure Gauge: Z Y60 1.6MPA |
1Pc |
||
Files |
Boiler: Design Drawing, Product Quality Certificate, User Manual, Warranty Card, Delivery Order |
1Set |
