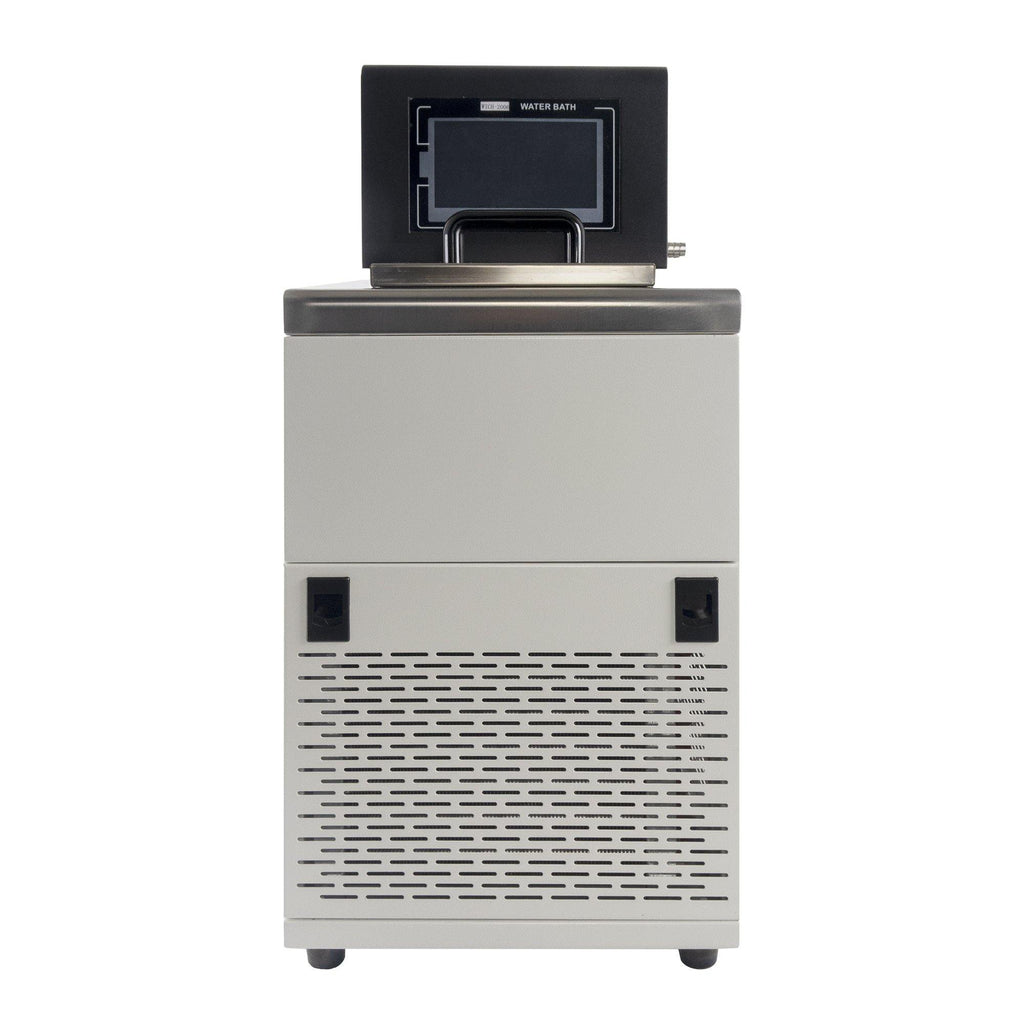

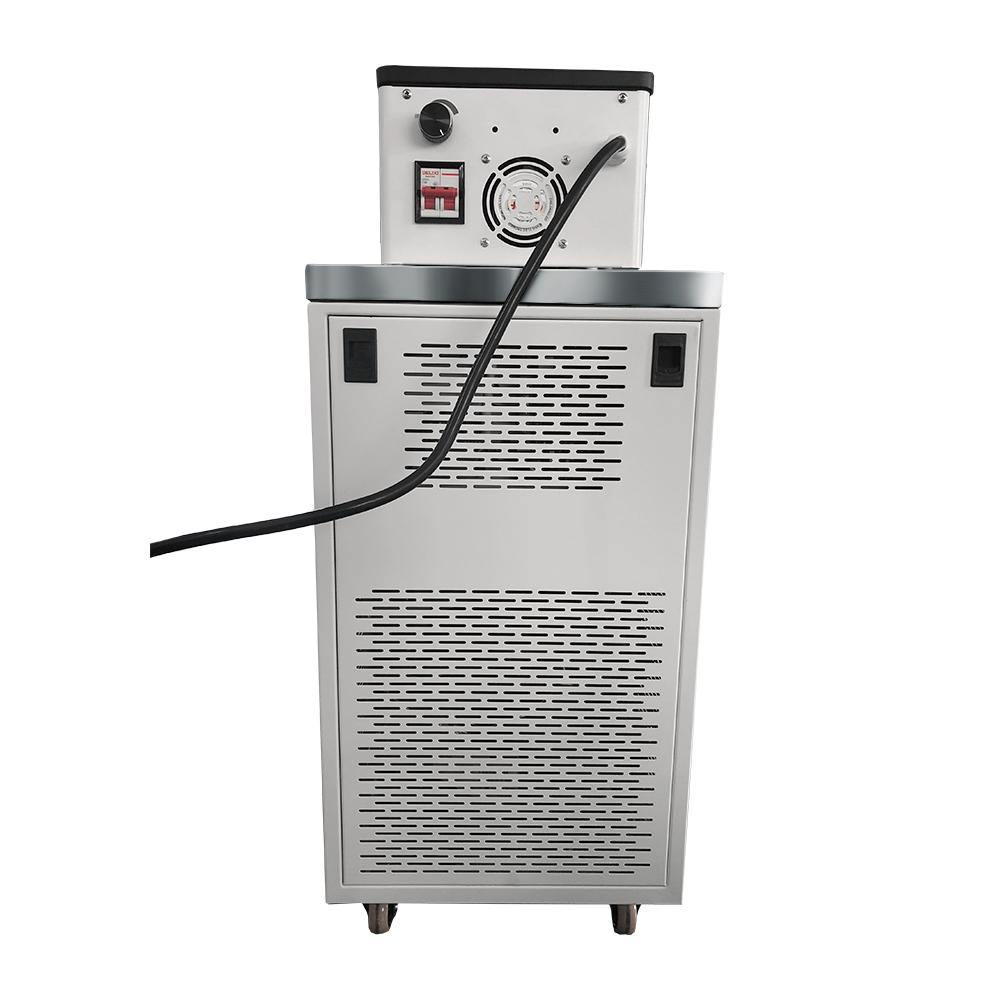

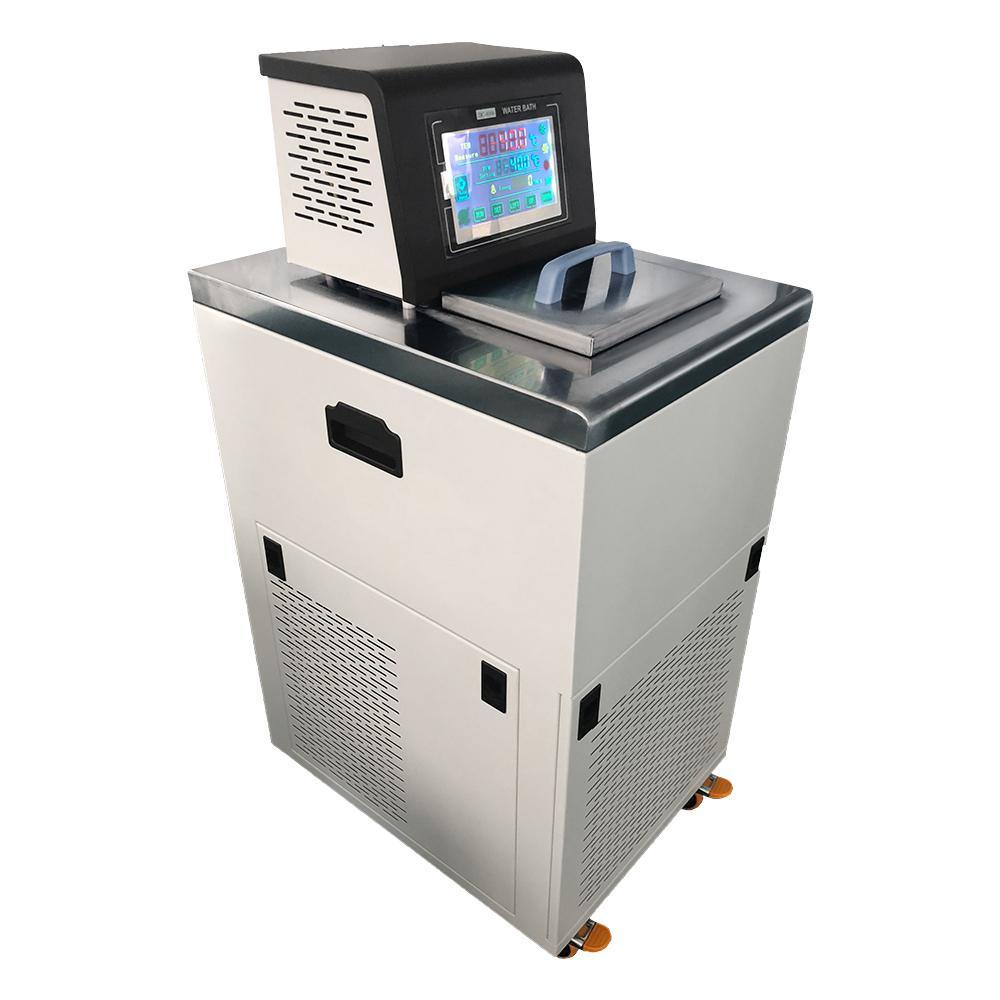

-20 °C to 100 °C 7L Recirculating Chiller
8046009003-US
West Tune WTCH-2006 recirculating chiller is an ideal model for applications such as cooling rotary evaporators, analytical instrumentation, laser...
customers are viewing this product
West Tune WTCH-2006 recirculating chiller is an ideal model for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Features:
Powerful cooling capacity 550w at -20°C
Pump flow max. 20 liters/min

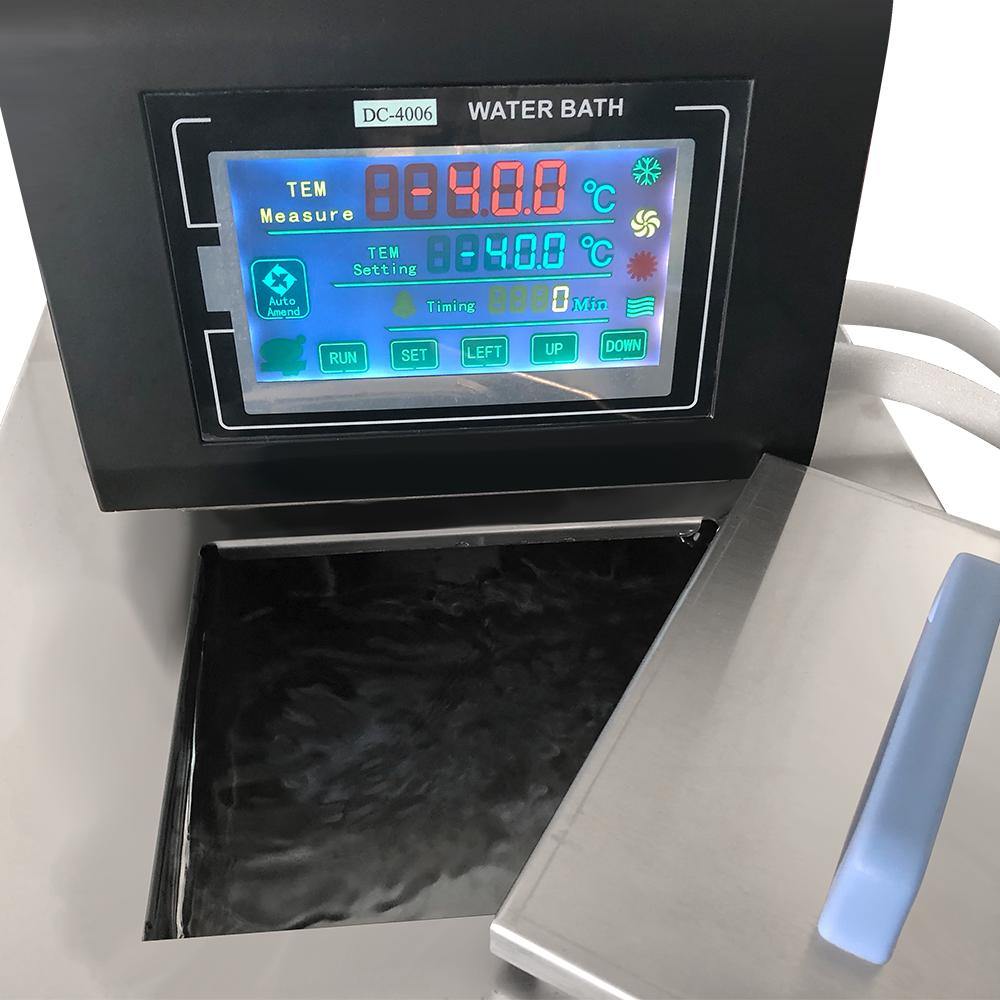

7" TFT touch screen controller
No dry ice or liquid nitrogen needed
ANSI standard all stainless steel reservoir
All steel construction for durability
Plug and play, no assembly required
Specifications:
| Voltage | 110V 60Hz Single Phase |
| Compressor | Danfoss (made in Germany) |
| Refrigerant | R404A (190g) |
| Cooling capacity | 1100w at 0°C |
| Heating capacity | 1100 watts |
| Circulating pump | 20 liters per minute, adjustable |
| Lift | 5meters |
| Chamber Dimensions (LxWxH) | 8 x 10 x 5.5" |
| Chamber Material | 304 stainless steel, polished |
| Controller | PID controller with LCD 7" TFT touch screen |
| Temperature range | -20 °C to 100 °C |
| Temperature accuracy | ±2 °C |
| Working condition | -15°C ~ 25°C |
| Inlet port | 3/8" hose barb |
| Drain port | 3/8" hose barb with on / off valve |
| Dimensions (LxWxH) | 12 x 15.5 x 26" |
| Weight | 65 Lbs |
