Cooling Recirculating Chiller For 2L rotovaps

West Tune TBWR-03A chiller will provide stability and low temperature environment for the experimental instruments like rotary evaporator, etching device high temperature electrode, laser processing machinery heating parts, or spectrophotometer heating module. The precise tempeerature control provides out-class system cooling effect, prevents damage from overheating and improves the cooling ability of the instrument.

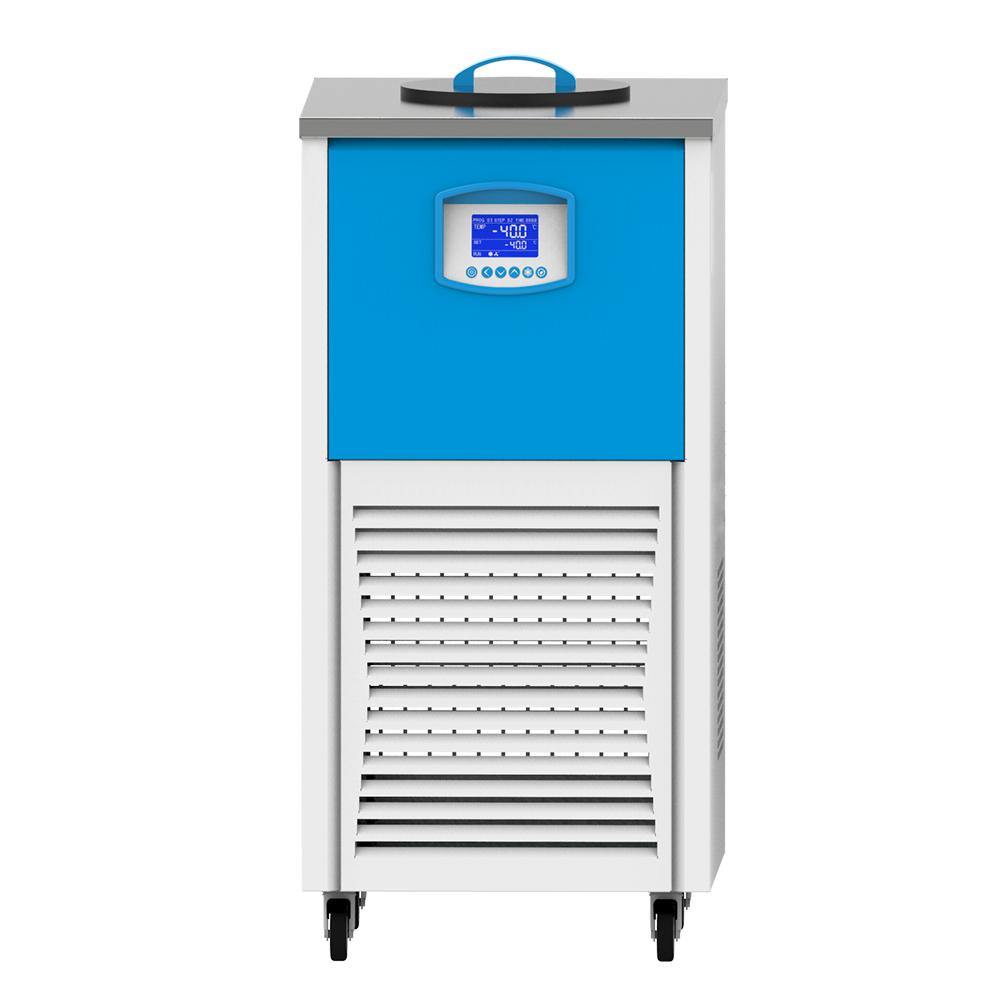

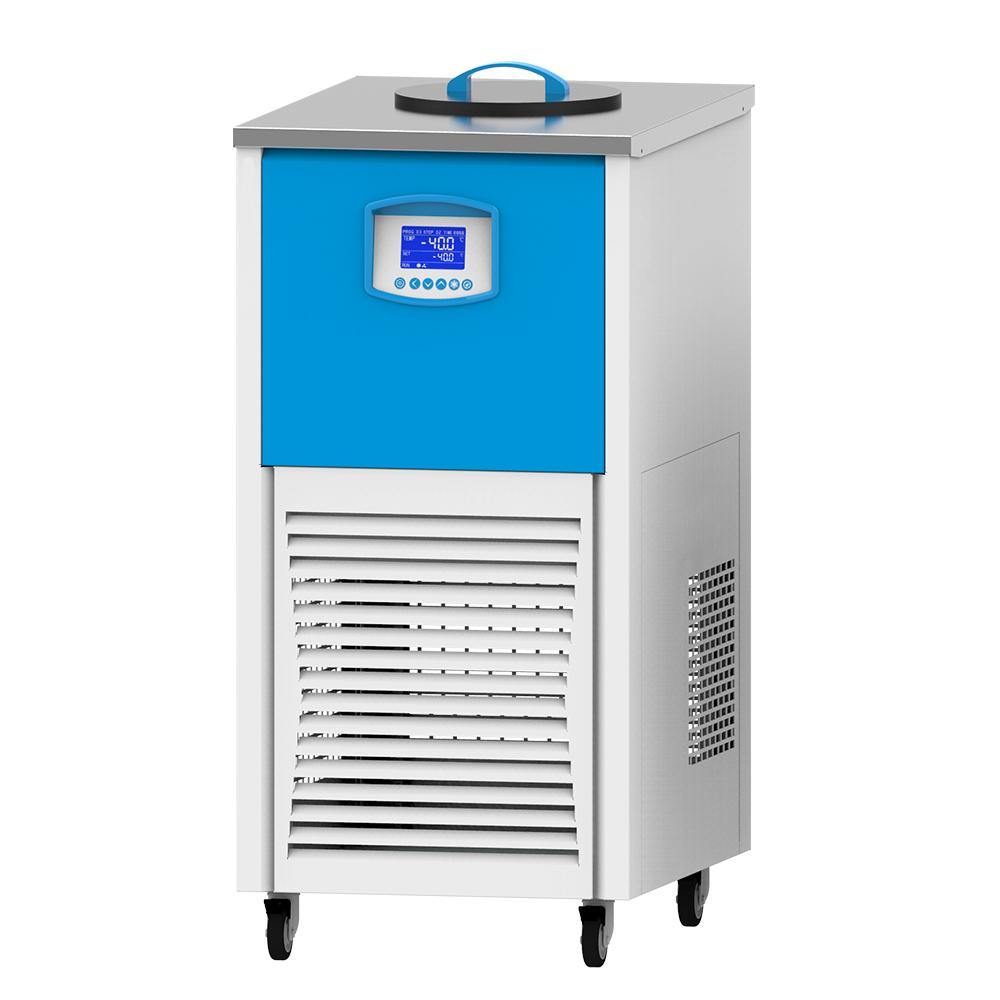

The picture of BWR-03A Cooling Recirculating Chiller For 2L rotovaps


Cooling curve

Head / Flow curve

Features:
Eco-friendly refrigerant R404A.
Cooling parts made by high purity copper nickel plating process with high heat exchange efficiency.
PID microcomputer control strongly rule out the factors that affect the temperature adjustment accuracy and reduce the error.
High efficiency circulating pump with quality lift characteristics.
Built-in stainless steel (SUS304) storage tank with optional configured 0-1200rpm magnetic stirring could achieve multi-purpose.
The instrument could use both laboratory pure water or ethanol solution as a circulating coolant.
Built-in compressor protection, over-voltage, and overload protection.

Specifications

Voltage	110V 60Hz Single Phase
Refrigerant	R404A
Cooling capacity	500w at -20°C
Circulating pump	11 liters/minute, adjustable
Head	3.5meters
Chamber Volume	7L
Chamber Material	304 stainless steel, polished

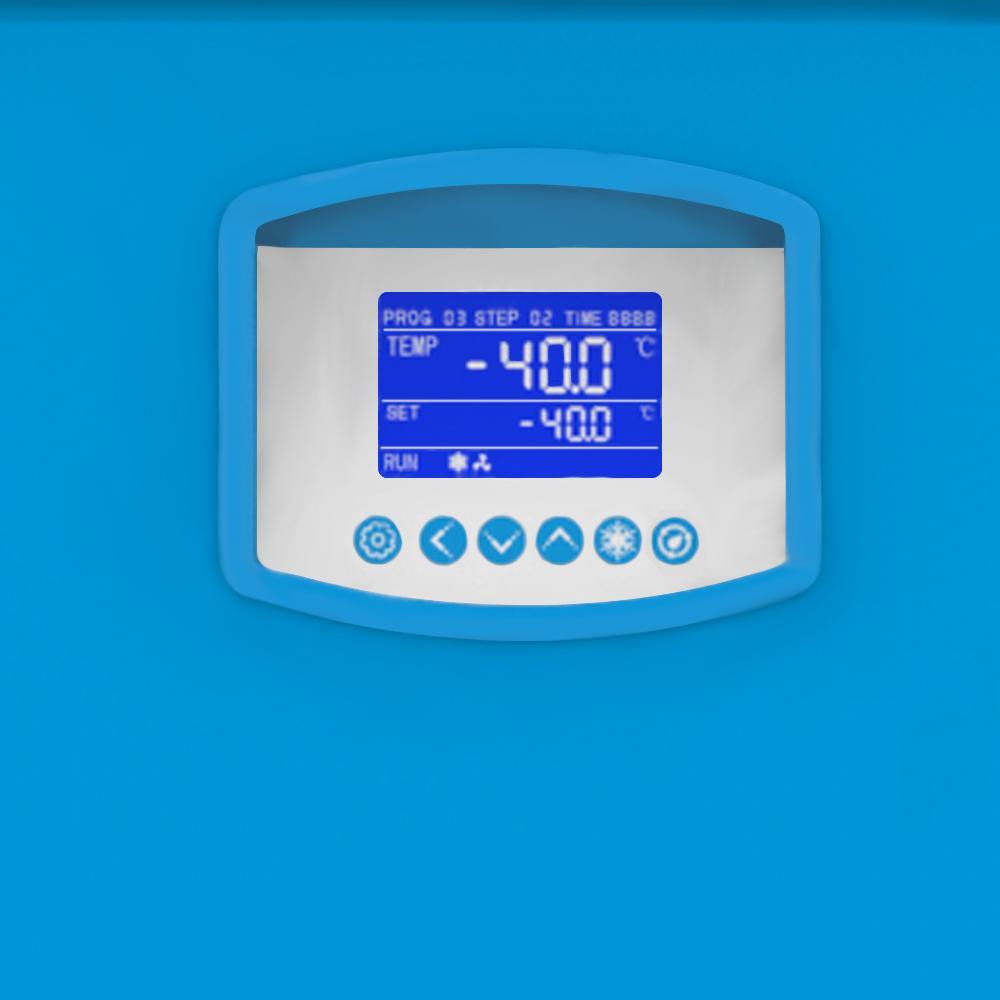

Controller	PID controller with LCD screen
Temperature range	-20 ~ 20 °C
Temperature accuracy	±0.5 °C
Working condition	-15°C ~ 25°C
Dimensions (LxWxH)	17.7 x 16.5 x 30"
Weight	66 Lbs
