-30 °C 50L Cooling Recirculating Chiller with 20L/min Pump
A0201004
West Tune DLSB-5030 Cooling Recirculating Chiller with 20L/min Pump---------recommended for 50L rotary evaporator/50L glass reactor West Tune DLSB-5030 cooling recirculating chiller is...
customers are viewing this product

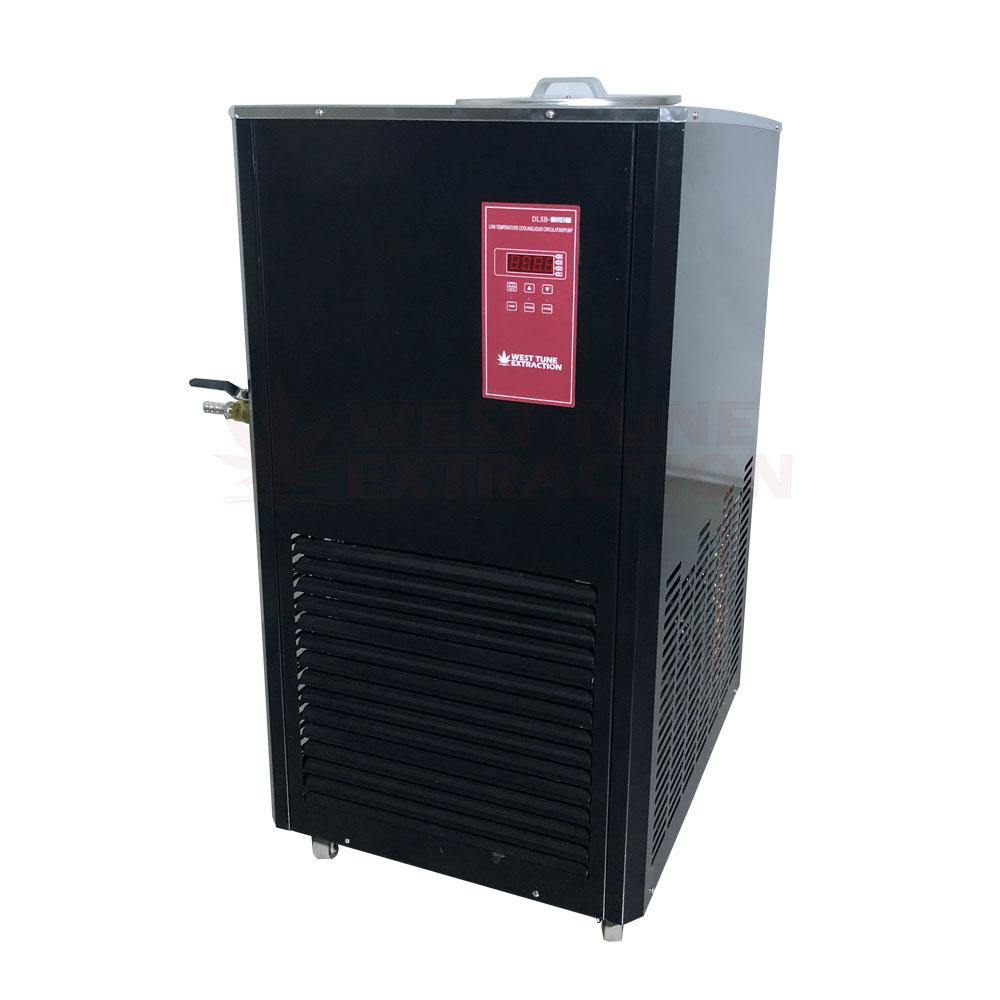

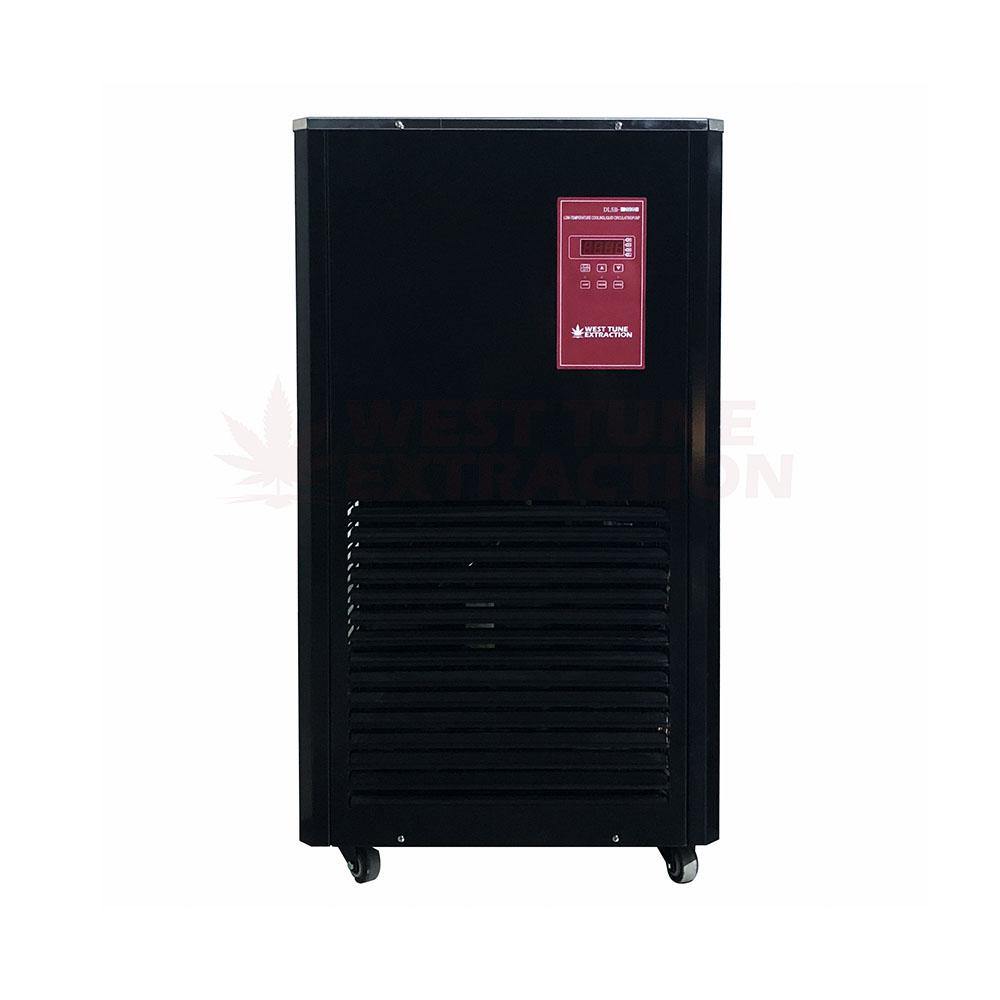

West Tune DLSB-5030 Cooling Recirculating Chiller with 20L/min Pump
---------recommended for 50L rotary evaporator/50L glass reactor
West Tune DLSB-5030 cooling recirculating chiller is an economic model for applications such as rotary evaporator, vacuum freezer dryer, recycling water type vacuum pump, uv spectrophotometer etc instrument constant temperature, the temperature of the chemical reaction multi-function homework and drug store. This system can also be used as a replacement to tap water cooling in laboratory applications.
Basic functions DLSB chiller is an ideal option for the buyers who has limited budget, it still offers excellent performance and high reliability as well as quiet operation and ease-of-use. Powerful circulating pump provides constant flow rates, while PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! WE OFFER TWO YEARS WARRANTY FOR OUR DLSB SERIES CHILLERS!
Display diagram:
Features:
Powerful cooling capacity 7469w at 0°C
Pump flow max. 30 liters/min
No dry ice or liquid nitrogen needed
ANSI standard all stainless steel reservoir
All steel construction for durability
Plug and play, no assembly required
Specifications:
---------recommended for 50L rotary evaporator/50L glass reactor
West Tune DLSB-5030 cooling recirculating chiller is an economic model for applications such as rotary evaporator, vacuum freezer dryer, recycling water type vacuum pump, uv spectrophotometer etc instrument constant temperature, the temperature of the chemical reaction multi-function homework and drug store. This system can also be used as a replacement to tap water cooling in laboratory applications.
Basic functions DLSB chiller is an ideal option for the buyers who has limited budget, it still offers excellent performance and high reliability as well as quiet operation and ease-of-use. Powerful circulating pump provides constant flow rates, while PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! WE OFFER TWO YEARS WARRANTY FOR OUR DLSB SERIES CHILLERS!
Display diagram:
Features:
Powerful cooling capacity 7469w at 0°C
Pump flow max. 30 liters/min
No dry ice or liquid nitrogen needed
ANSI standard all stainless steel reservoir
All steel construction for durability
Plug and play, no assembly required
Specifications:
| Voltage | 220V 60Hz Single Phase |
| Compressor | Danfoss (made in Germany) |
| Refrigerant | R404A |
| Cooling capacity | 7469w at 0°C |
| Circulating pump | 30 liters/minute |
| Lift | 12meters |
| Chamber Volume | 50L (13.2Gallon) |
| Chamber Material | 304 stainless steel |
| Controller | PID controller with LED display |
| Temperature range | -30 °C to RT |
| Temperature accuracy | ±0.5 °C |
| Working condition | -15°C ~ 25°C |

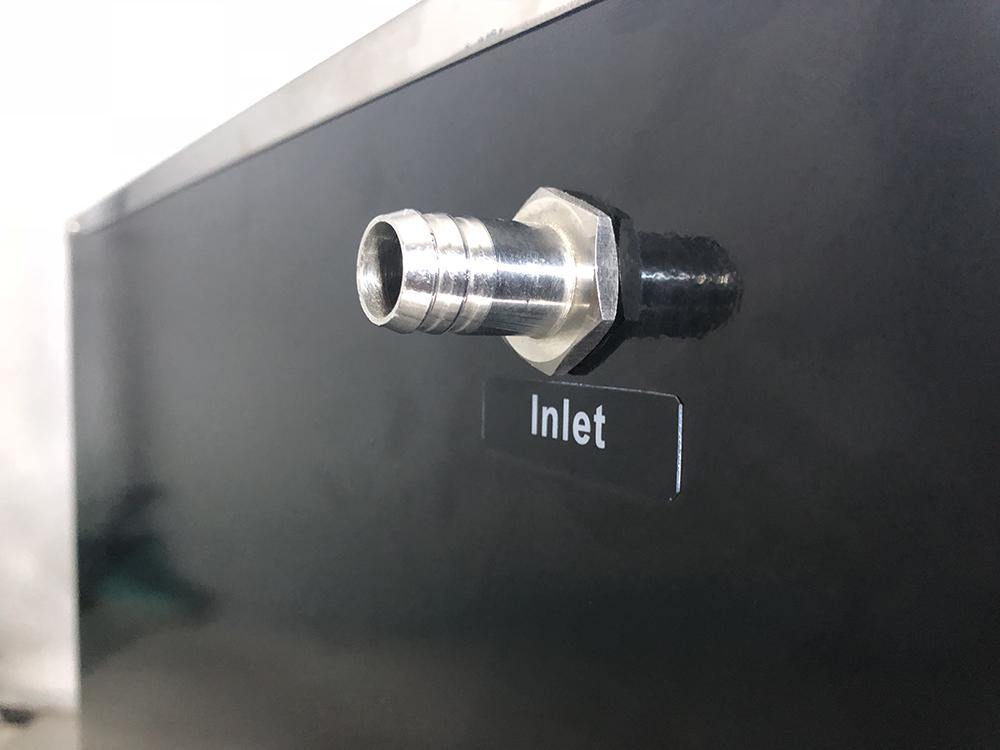

| Inlet port | 3/8" hose barb |

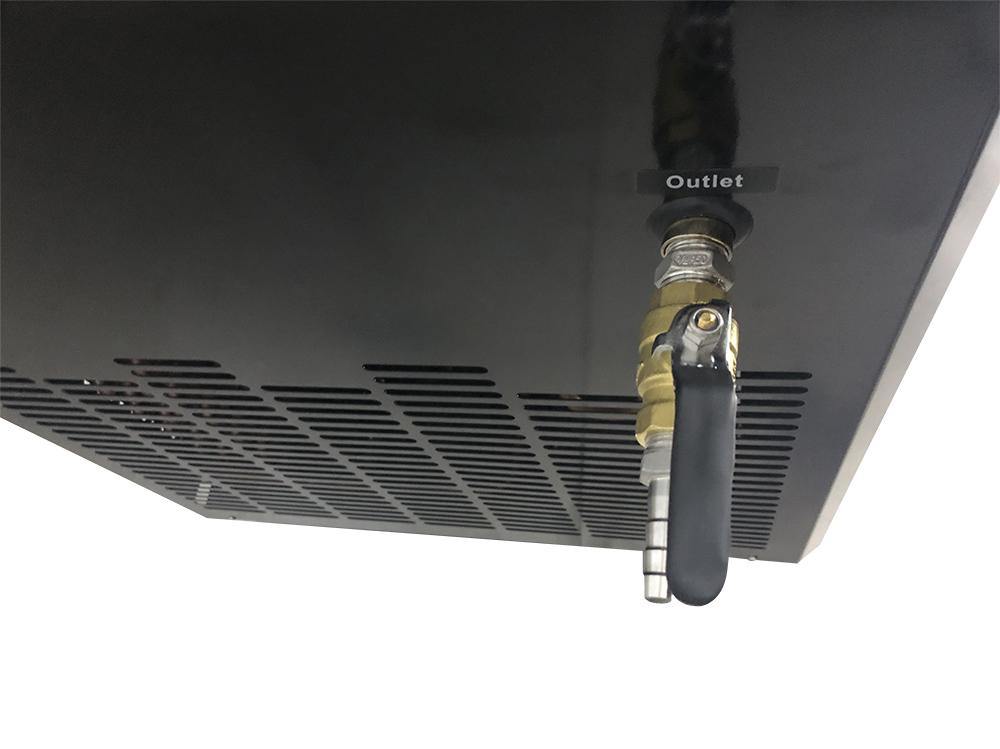

| Drain port | 3/8" hose barb with on / off valve |
| Dimensions (LxWxH) | 31.1 x 26.8 x 46.5" |
| Weight | 174 Lbs |
