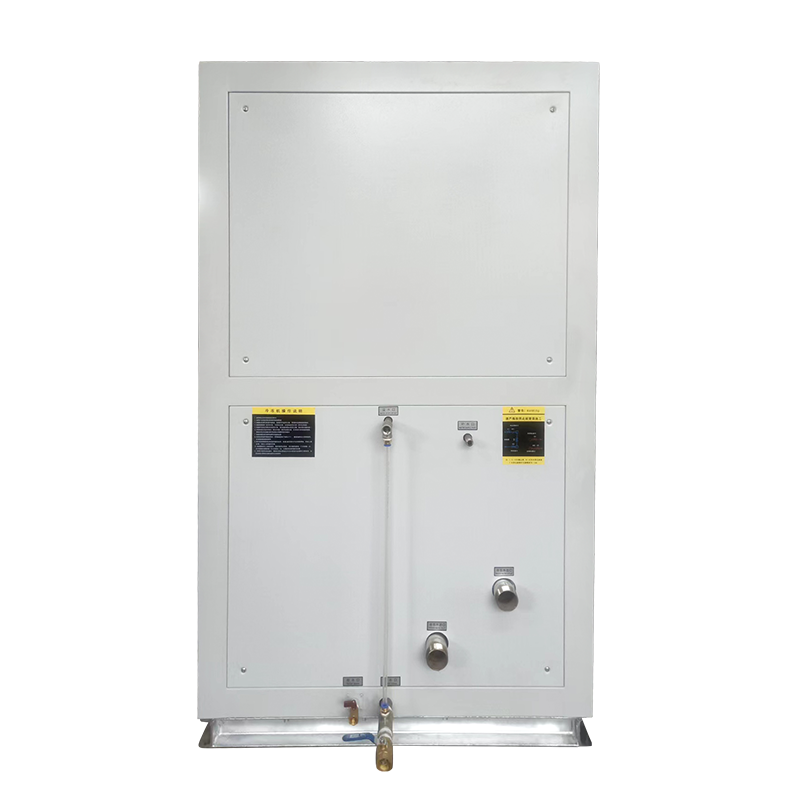

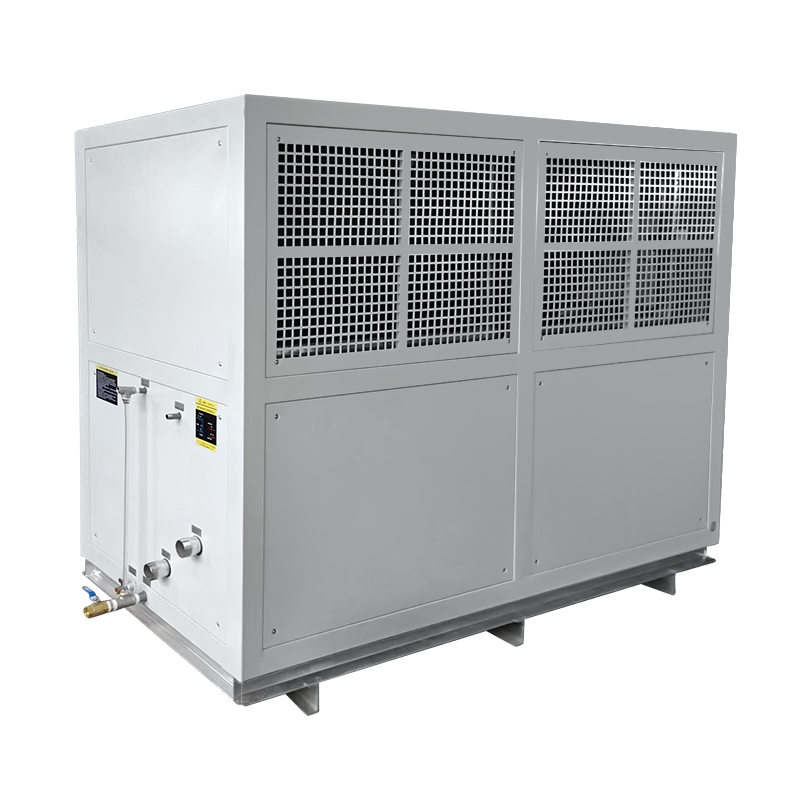

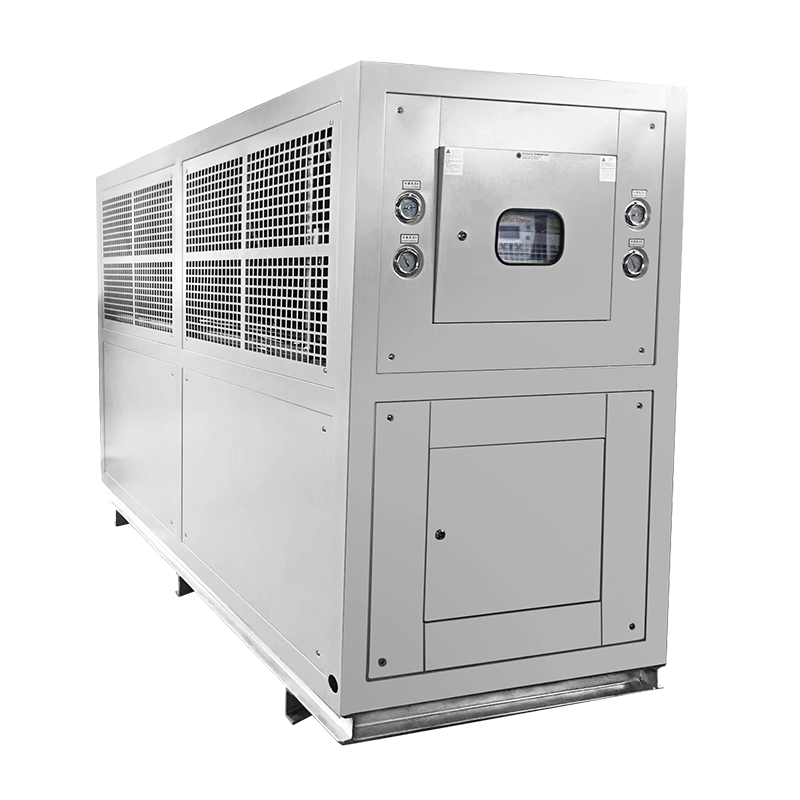

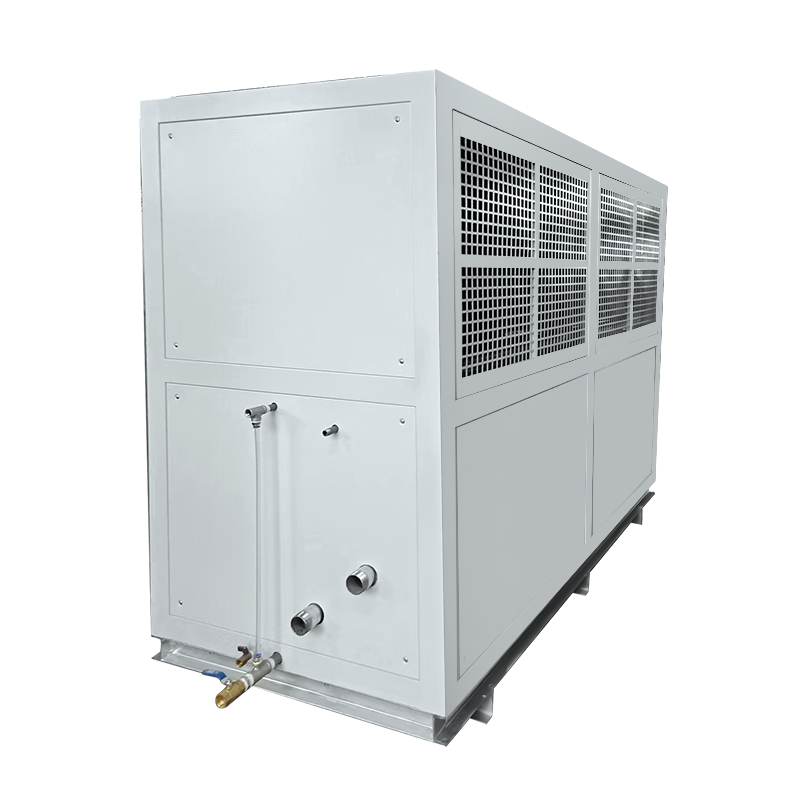

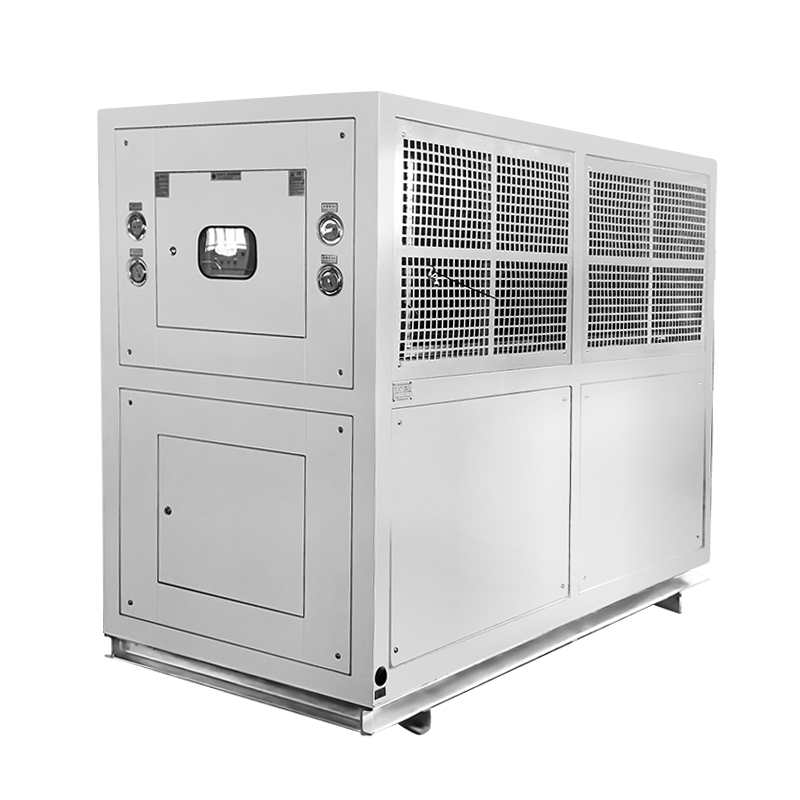

75kw LDSF-25SD Air Cooled Industrial Water Chiller
Description:
The LDSF-25SD water chiller is specially designed for condenser for vapor-liquid condensation of ethanol. By adapting new technologies and innovations to maintain top reliability level worldwide, all production steps are focused to offer high quality and customized solutions to meet any requirement.
Features:
- Industrial Water chillercoolingcapacity can reach to 75kw
- With high efficient fin type condenser and silent refrigeration fan, no need to equip cooling water, easy to install.
- Branded SANYO scroll compressor
- Microcomputer LCD Controller easy to operate
- Advanced R485 remote control designed for directly access in daily works
- Built in outfalls can drain the water completely
- Built in water level gauge
- Temperature controlling range -10℃ to 20℃
- Equipped with electrical current overload protection, high & low pressure switch, electrical timer delay safety device. It will alarm to display faulty while any malfunction occurs.
- Complete safely devices including power reverse phase, power short phase and anti-freeze protection
Technical Parameter:
|
No. |
Specification Parameter |
Description |
|
1 |
Power Supply |
220V/AC±10% 50/60HZ |
|
2 |
Unit rated power |
25kw |
|
3 |
Temperature Range |
-10~20℃ |
|
4 |
Measurement Accuracy |
0.1℃@25℃ |
|
5 |
Cooling capacity |
75kw |
|
6 |
Compressor type |
Scroll |
|
7 |
Refrigerant charge |
35kg R407C |
|
8 |
Unit operating current |
35A |
|
9 |
Compressor power |
18kw |
|
10 |
Chilled water flow |
12T/h |
|
11 |
Chilled water pipe diameter |
DN50 |
|
12 |
Working Environment |
-20℃~70℃,≤85%RH non-condensation |
|
13 |
Storage Environment |
-30℃~85℃,≤85%RH non-condensation |
|
14 |
Switch Output |
5 relays |
|
15 |
Switch Input |
12 passive signal inputs |
|
16 |
Analog Input |
1 NTC temperature sensor |
|
17 |
Current Input |
4 ways of current (0.3~35A) |
|
18 |
Select DO |
1 OUT relays |
|
19 |
Flow Rate |
12000L/H |
|
20 |
Product Dimension |
90.5×49×72INCH |
|
21 |
Gross Weight |
1.7Ton |
