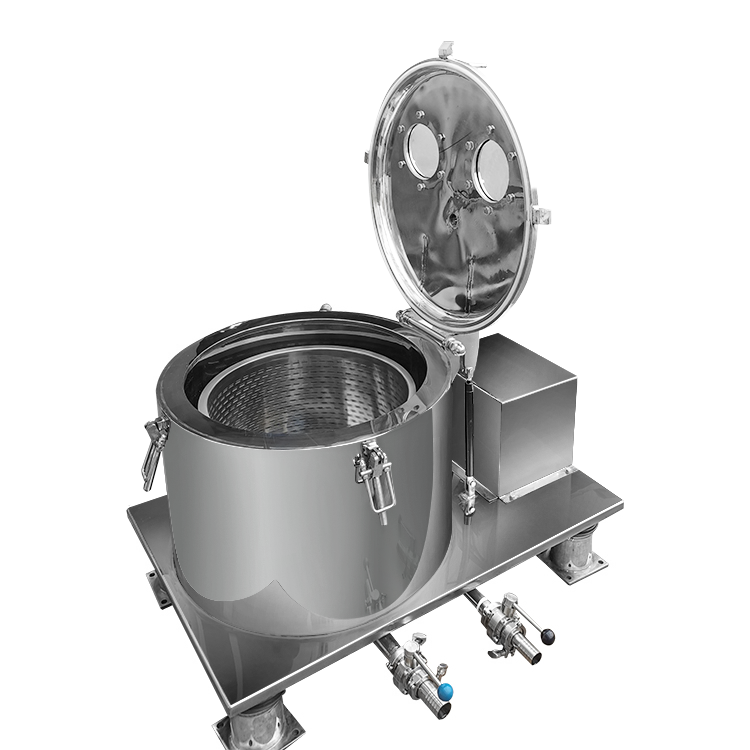

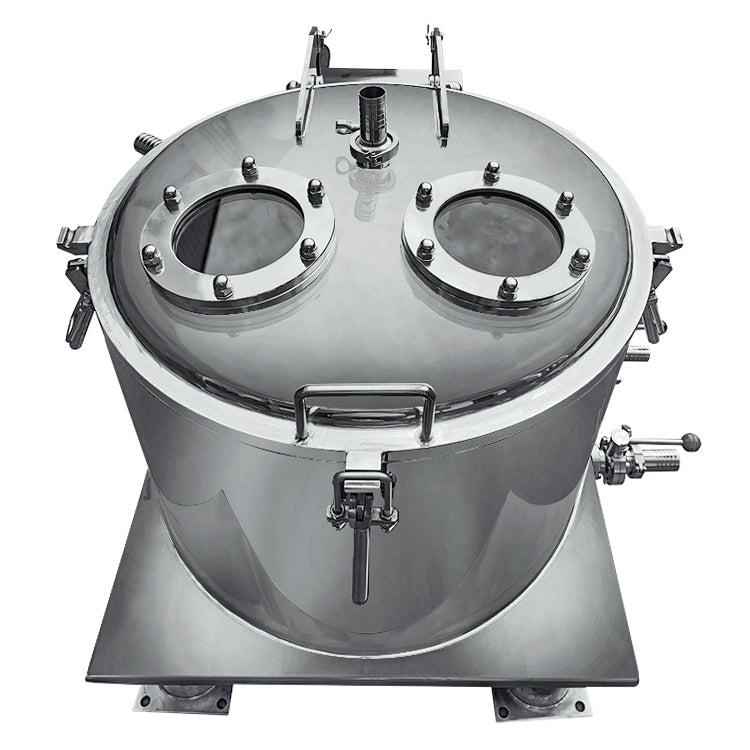

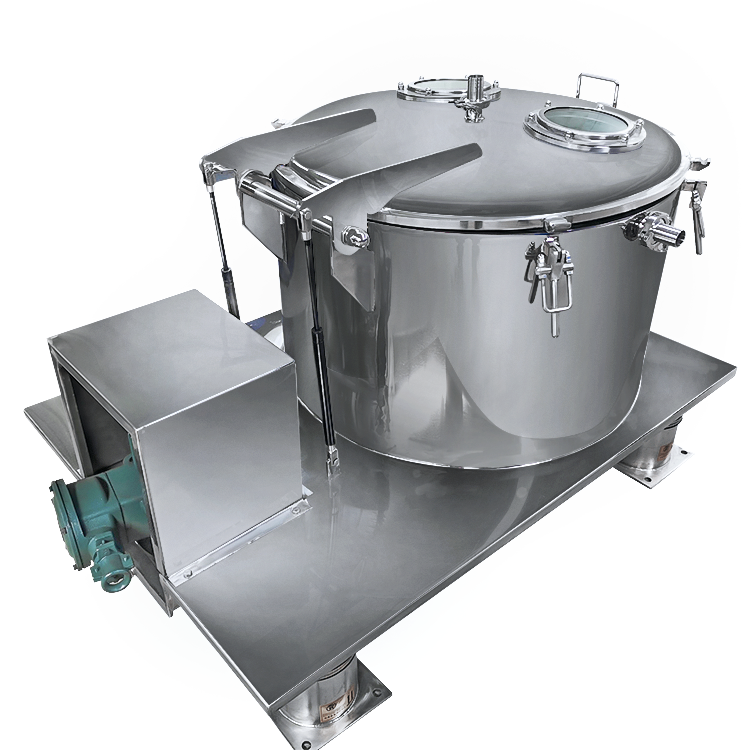

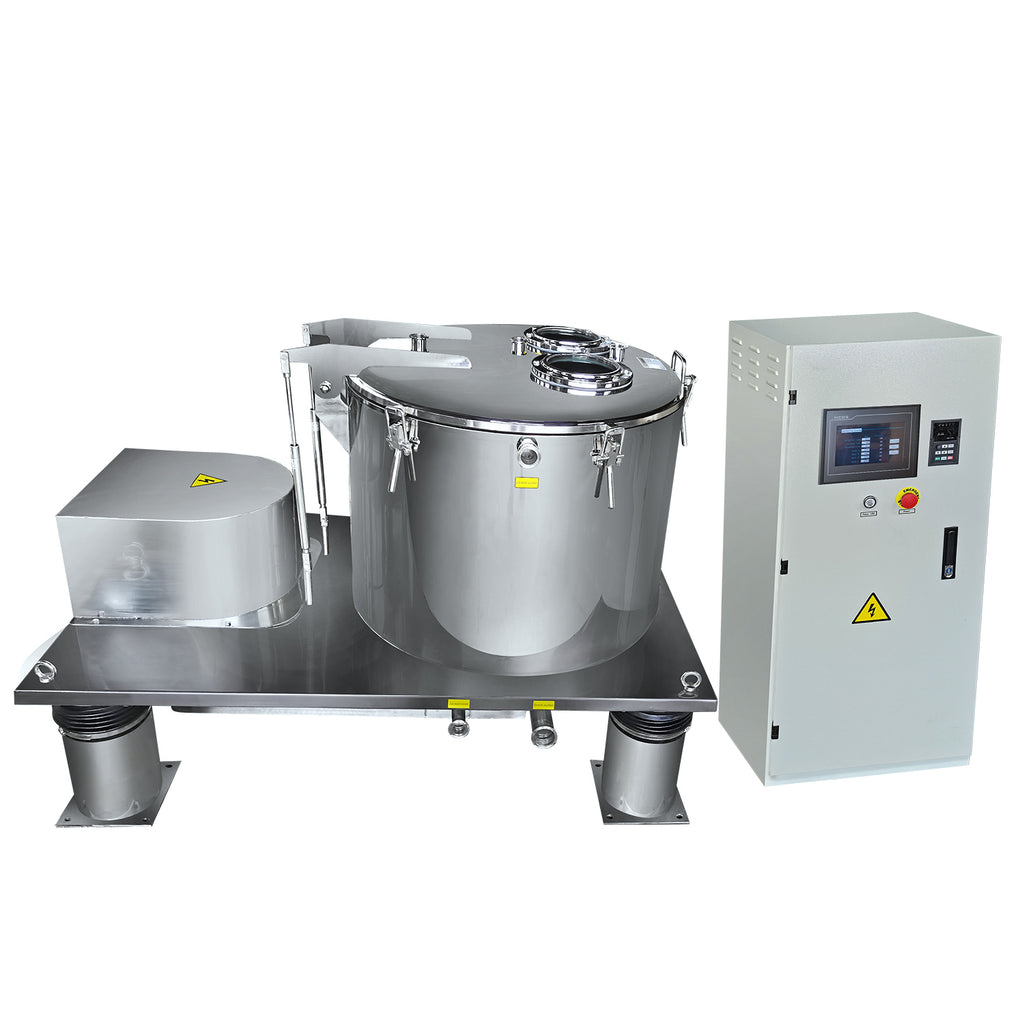

240L WTFC-700 Jacketed Stainless Steel Centrifuge
Sales description:
WTFC-700 Jacketed Stainless Steel Centrifuge systems is designed for solvent extraction of CBD Oil from hemp plant matter and perform other botanical extraction like various essential oils while maintaining a closed loop system, exposing no solvents to the air. Our system is designed for easy material loading and unloading. Our centrifuges have reinforced sight glass, bi-directional agitation, variable speed controller (VFD-variable frequency drive), resistive braking, explosion proof Siemens touch screen control, and all UL Parts for superior quality. No expense has been spared with this system to provide high quality parts at an affordable price.
Features:
- Plate type structurefor larger volume solvent application more beautiful out looking.
- Four support, equipped with high viscosity elastic damping shock absorbers.
- Variable frequency drive with PLC system and touch screen for auto/manual controls.
- Sanitary Stainless Steel Construction.
- Equipped with Ex-proof motor
- Tri-clamp fitting for feed and drain port
- Bi-directional agitation
- Reinforced sight glass
Specifications:
|
Model |
WTFC-700 |
|
Material |
304 Stainless Steel |
|
Power Supply |
240V 60H, 3PH |
|
Basket Diameter |
700 mm |
|
Jacket Volume |
About 38 L |
|
Batch capacity for plant material |
About 45 lbs/cycle |
|
Max Speed |
1350 rpm |
|
G-force |
715 G |
|
Motor Power |
5.5 KW |
|
Inverter Power |
5.5 KW |
|
Weight |
About 800 KG |
|
Inner Solvent Volume |
About 200 L |
|
Lid Connections |
DN32 |
|
Jacket Connections |
INPUT:DN27 OUTPUT:DN32 |
|
Drain Connections |
DN48 |
|
Gasket Material |
PTFE |
|
Lid Gasket Material |
NBR |
|
Basket Inner Dimensions |
27.5" Diameter x 15.7" H |
|
Product Dimensions |
61.5" L x 40" W x 43" H |
|
Gross Weight |
800KG |
